/ Onpin TC Series Torque Tap Collet M3-M12 - JIS/ISO/DIN/ANSI Standard, 19mm Shank, 0.3kg
Onpin TC Series Torque Tap Collet M3-M12 - JIS/ISO/DIN/ANSI Standard, 19mm Shank, 0.3kg

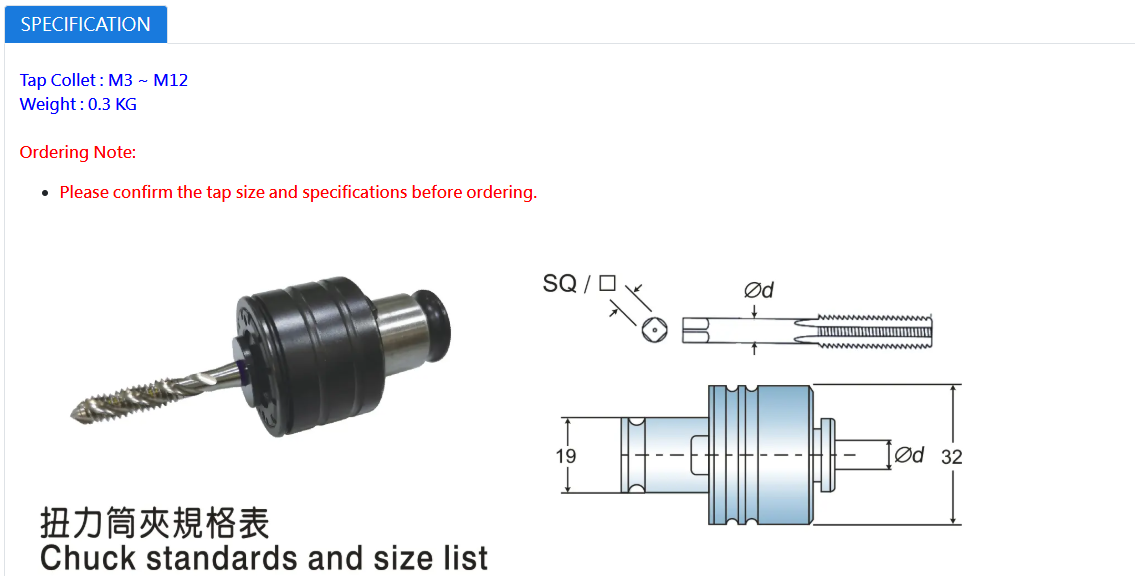

The Onpin TC Series torque tap collet is a specialized tool holder designed for precision threading operations with tap protection capabilities. It features a clamping range of M3 to M12, a standard 19 mm mounting shank, an outer diameter of 32 mm, and a lightweight design of 0.3 kg. This series fully supports global tap standards, including JIS (TCJIS), ISO (TCISO), DIN 371/376 (TCDIN), and ANSI (TCANSI). Prior to ordering, please confirm the exact shank diameter $\varnothing d$ and square drive size $\square$ of your taps to ensure precise fitment.
- TC Series
- TCJISM2
- TCJISM3
- TCJISM4
- TCJISM5
- TCJISW5/16
- TCJISM6
- TCJISM8
- TCJISM10
- TCJISW7/16
- TCJISM12
- TCJISW1/2
- TCISOM3
- TCISOM4
- TCISOM5
- TCISOM6
- TCISOM8
- TCISOM10
- TCISOM12
- TCDIN371M3
- TCDIN371M4
- TCDIN371M5
- TCDIN371M6
- TCDIN371M8
- TCDIN371M10
- TCDIN376M3
- TCDIN376M4
- TCDIN376M5
- TCDIN376M6
- TCDIN376M8
- TCDIN376M10
- TCDIN376M12
- TCANSI W1/2
- Onpin TC Series
- torque tap collet
- safety tap collet
- overload protection tap adapter
- torque control tap collet
- quick change tap adapter
Design file download links:
Other fileDescription
Specification Quick Change Tap Collets
The Onpin TC Series (including detailed sub-models such as TCJIS, TCISO, TCDIN371, TCDIN376, and TCANSI) is a premium range of torque control tap collets designed for precision threading operations. Operating with an integrated torque-limiting clutch, it automatically slips when encountering excessive resistance, effectively preventing tap breakage during internal thread tapping. Featuring a compact design with a standard 19 mm mounting shank and a 0.3 kg weight, it covers a broad clamping range from M3 to M12.
Key Features of Onpin TC Series
- Tap Overload Protection: Built-in torque limit control mechanism slips automatically upon overload to safeguard expensive taps.
- Comprehensive Global Standards: Available in dedicated configurations conforming to JIS (Japan), ISO (International), DIN 371 / DIN 376 (Germany), and ANSI (USA) standards.
- Wide Tapping Capacity: Accommodates tap sizes from M3 to M12 (including fractional inch sizes such as 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2").
- Compact & Lightweight: Weighs only 0.3 kg with a 32 mm outer diameter and a 19 mm mounting shank for easy integration.
- Precise Dimension Matching: Custom-fitted according to the exact shank diameter ($\varnothing d$) and square drive size ($\square$) of specified taps.
Technical Specifications of Onpin TC Series
- Brand: Onpin
- Product Series: TC Series
- Collet Type: Torque Tap Collet / Safety Tap Collet
- Tapping Range: M3 ~ M12
- Net Weight: 0.3 kg
- Shank Connection Diameter: 19 mm
- Outer Diameter: 32 mm

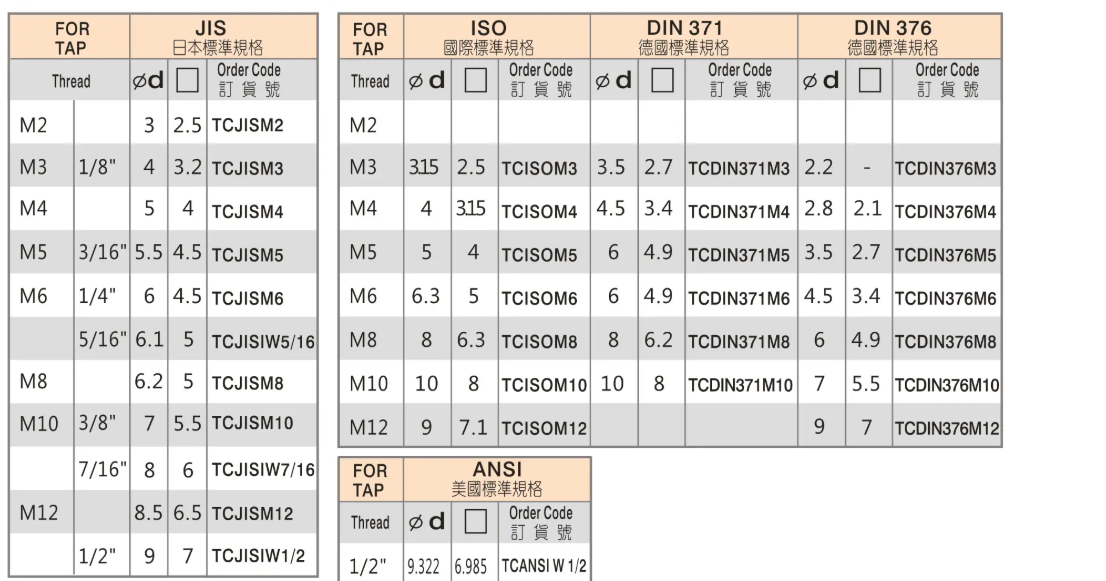

- Detailed Ordering Codes by Standard:
- JIS Standard (Japan): TCJISM2, TCJISM3, TCJISM4, TCJISM5, TCJISW5/16, TCJISM6, TCJISM8, TCJISM10, TCJISW7/16, TCJISM12, TCJISW1/2.
- ISO Standard (International): TCISOM3, TCISOM4, TCISOM5, TCISOM6, TCISOM8, TCISOM10, TCISOM12.
- DIN 371 Standard (Germany): TCDIN371M3, TCDIN371M4, TCDIN371M5, TCDIN371M6, TCDIN371M8, TCDIN371M10.
- DIN 376 Standard (Germany): TCDIN376M3, TCDIN376M4, TCDIN376M5, TCDIN376M6, TCDIN376M8, TCDIN376M10, TCDIN376M12.
- ANSI Standard (USA): TCANSI W1/2.
Industrial Applications of Onpin TC Series
- Precision Machining & Tooling: Used on pneumatic tapping machines, electric tapping tools, drilling units, and CNC equipment.
- Mold & Die Manufacturing Industry: Ensures accurate tapping on hard steel materials without the risk of broken taps getting stuck in expensive molds.
- Automotive & Machinery Manufacturing: Optimizes batch threading efficiency for vehicle components, structural parts, and heavy equipment.
- Sheet Metal Fabrication: Provides precise thread preparation on metal frames and enclosures.
