Onpin 80-705 Series Three-Jaw Tapping Collet - B12 / 3/8" Connection, 3-12mm Clamping Range, Quick-Change
The Onpin 80-705 Series Three-Jaw Tapping Collet is designed for holding round shank tapping tools across international standard sizes. Featuring a quick-change mechanism and a clamping range of 3 to 12 mm, this collet enables fast and efficient tap replacements during machining operations. Available in two connection types—Model 80-705-03 (3/8" anvil size, 56 mm length, 0.25 kg weight) and Model 80-705-05 (B12 taper connection, 60 mm length, 0.2 kg weight)—it delivers reliable performance for machinery manufacturing, machine tools, mold processing, and automotive parts production.
- 80-705
- 80-705-03
- 80-705-05
- Onpin 80-705
- Onpin 80-705-03
- Onpin 80-705-05
- three jaw tapping collet
- quick change tapping collet
- 3 jaw tap adapter
- B12 tapping collet
- 3/8 tapping collet
Design file download links:
Other fileDescription

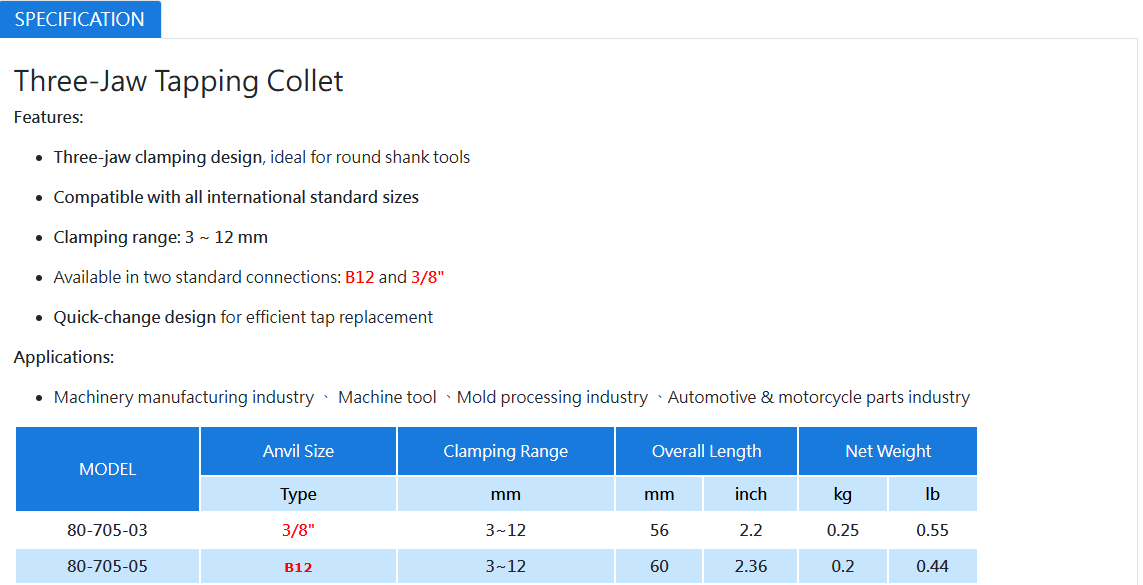

Specification 3 Jaw Tap Collet
The Onpin 80-705 Series (including models 80-705-03 and 80-705-05) is a specialized line of three-jaw tapping collets designed for precision mechanical machining. Utilizing a 3-jaw clamping mechanism, it securely holds round shank tools while featuring a quick-change function to minimize tool replacement time. Built to international standards, the Onpin 80-705 Series ensures superior clamping accuracy and operational efficiency in industrial threading operations.
Key Features of Onpin 80-705 Series
- Three-jaw clamping design: Specifically built to securely clamp round shank tapping tools.
- Quick-change design: Enables rapid tap replacement, significantly reducing downtime and boosting productivity.
- Wide clamping capacity: Reliably clamps tap sizes ranging from 3 to 12 mm.
- Standard connection options: Available in two standard mounting sizes: 3/8" (Model 80-705-03) and B12 taper (Model 80-705-05).
- Global compatibility: Compatible with all international standard sizes used in tooling and machining.
Technical Specifications of Onpin 80-705 Series
- Brand: Onpin
- Product Series: 80-705 Series
- Collet Type: Three-Jaw Tapping Collet
- Clamping Range: 3 ~ 12 mm
- Detailed Model Specifications:
- Model 80-705-03:
- Anvil Size / Connection: 3/8"
- Overall Length: 56 mm (2.2 inches)
- Net Weight: 0.25 kg (0.55 lbs)
- Model 80-705-05:
- Anvil Size / Connection: B12
- Overall Length: 60 mm (2.36 inches)
- Net Weight: 0.2 kg (0.44 lbs)
Industrial Applications of Onpin 80-705 Series
- Machinery manufacturing industry: Essential accessory for holding tapping tools in machinery fabrication.
- Machine tool applications: Integrated onto tapping machines, drilling equipment, and machine tools.
- Mold processing industry: Provides precise tap clamping for mold and die component threading.
- Automotive & motorcycle parts industry: Ideal for high-efficiency batch production of automotive components.
