SC vs SDA Pneumatic Cylinders: What’s the Difference?

What Are SC and SDA Cylinders?

SC and SDA are two popular AirTAC pneumatic cylinder series designed for different industrial applications.

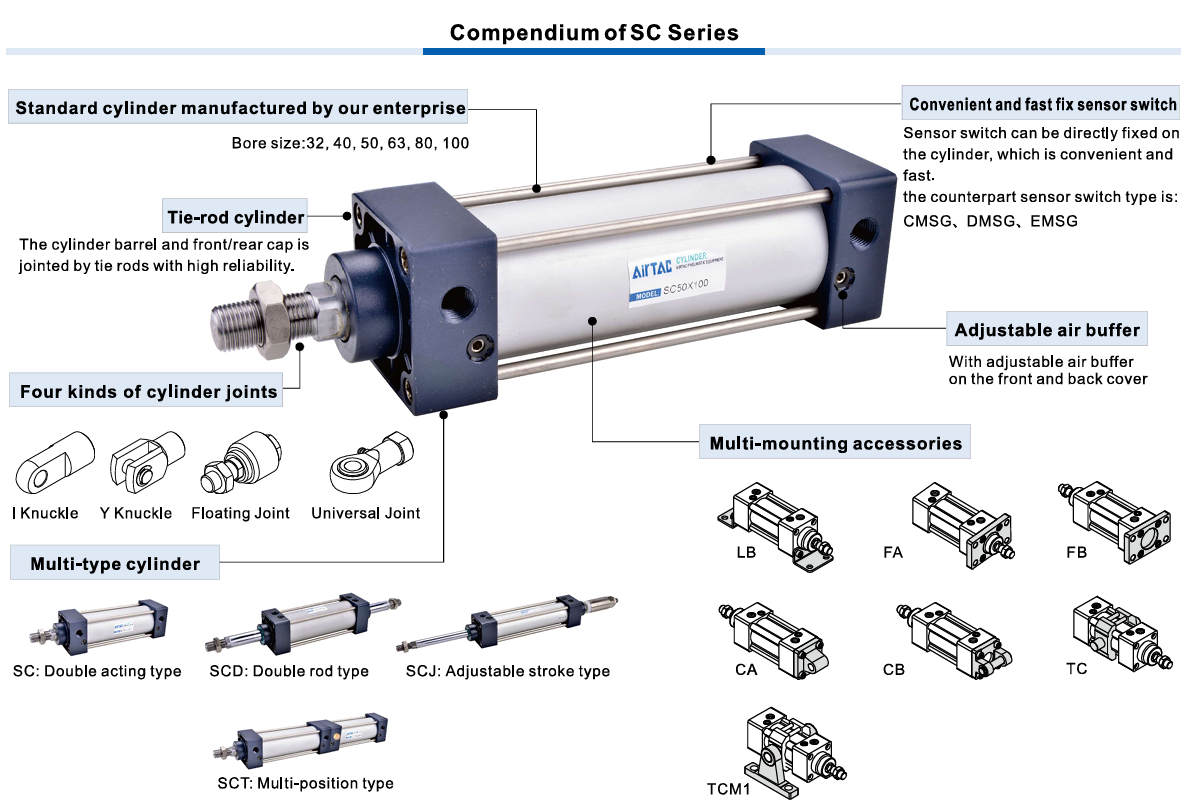

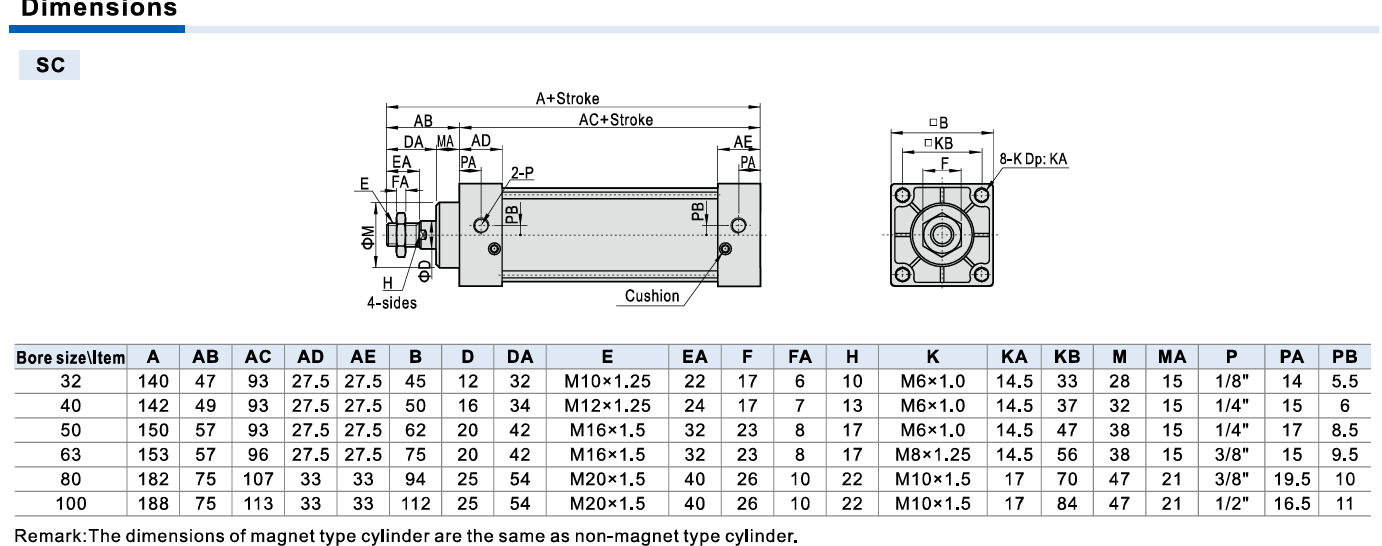

SC Series

1. Standard tie-rod pneumatic cylinder
2. Larger overall size
3. Stronger output force
4. Suitable for medium to heavy-duty applications

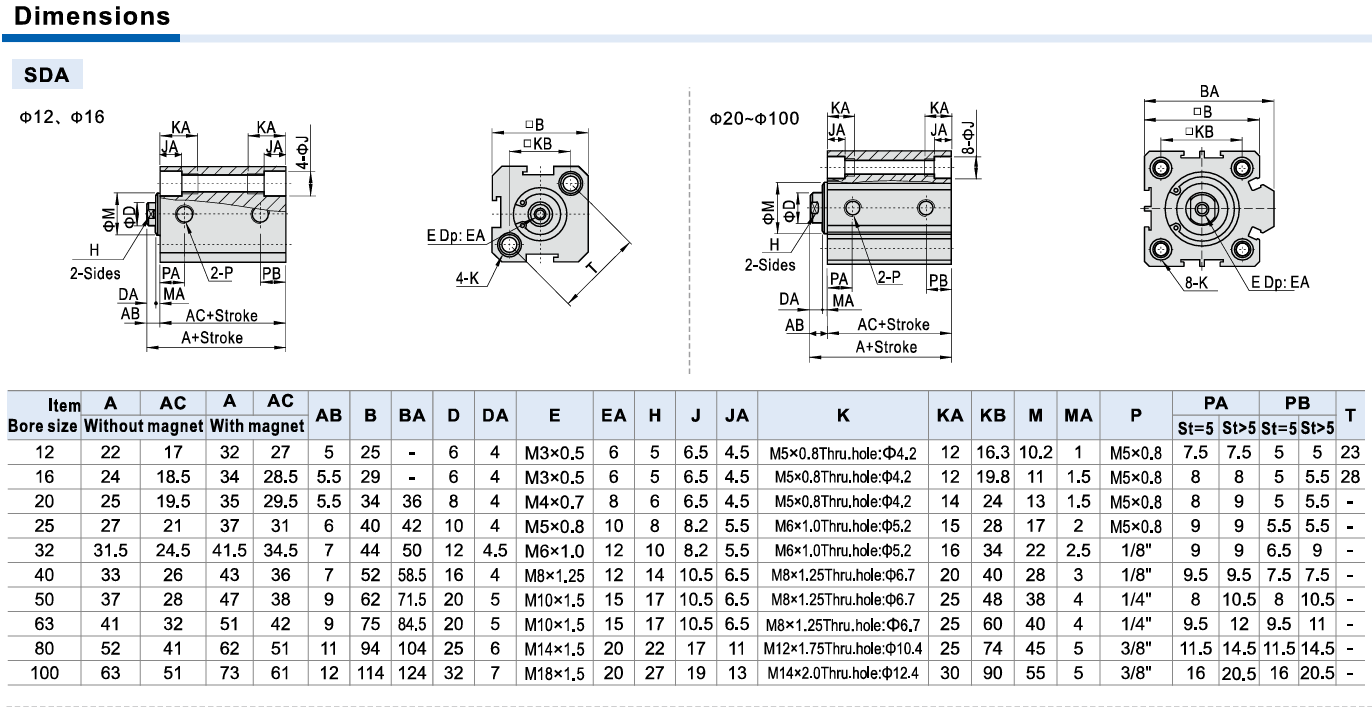

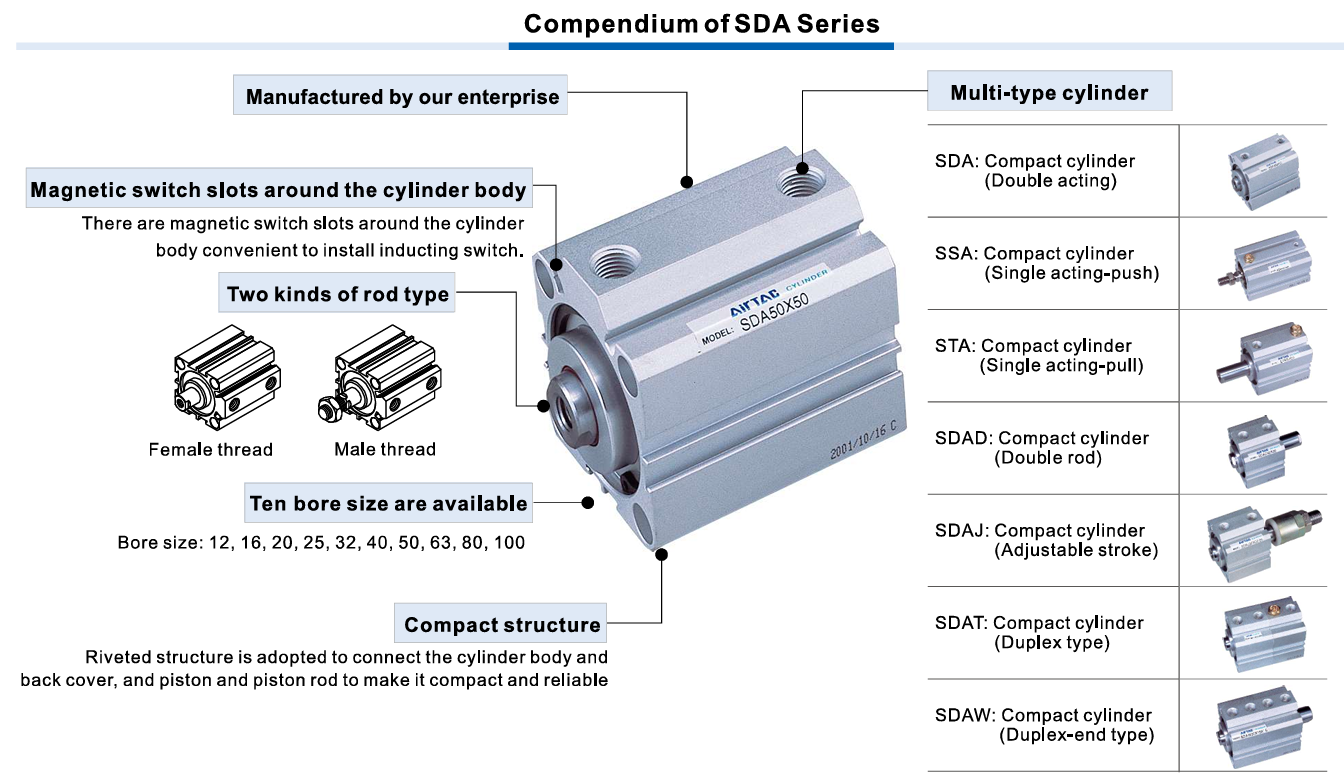

SDA Series

1. Compact pneumatic cylinder
2. Space-saving design
3. Smaller body size
4. Suitable for compact machines and short-stroke applications

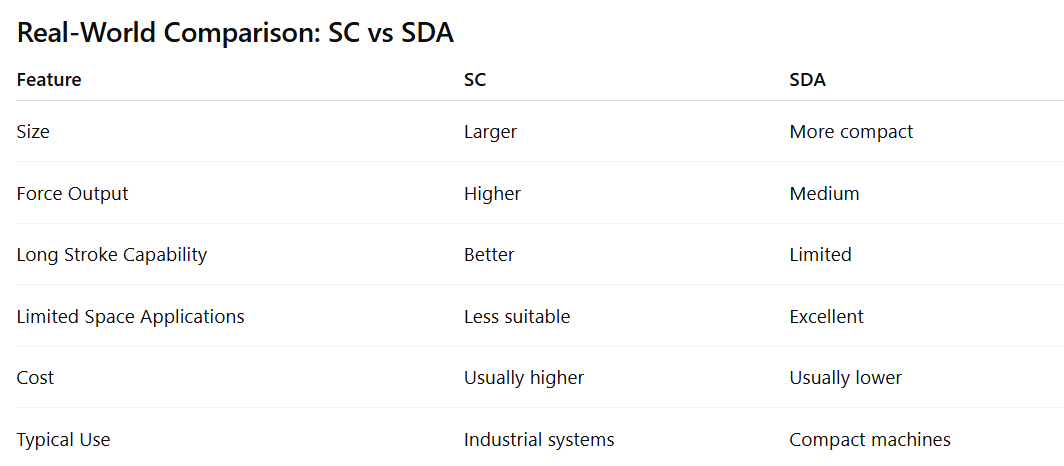

The Biggest Difference Between SC and SDA Cylinders

Overall Size

SC cylinders:

1. Longer body
2. Larger structure
3. Require more installation space

SDA cylinders:

1. Extremely compact
2. Shorter body design
3. Save installation space

👉 That’s why SDA cylinders are commonly called:

1. compact cylinders

Comparing Force Output Between SC and SDA

With the same bore size:

1. SC cylinders usually provide more stable force
2. SDA cylinders still provide sufficient force for lighter applications

Why?

1. SC cylinders have a longer and stronger body structure
2. The piston rod and housing are more robust

👉 For heavy-duty applications:

1. SC cylinders are generally the better choice.

When Should You Use SC Cylinders?

SC cylinders are suitable for:

1. High pushing force
2. Long stroke applications
3. Heavy-duty systems
4. Installations with enough space

Common applications:

1. Packaging machines
2. Conveyor systems
3. Pressing machines
4. Industrial automation systems

When Should You Use SDA Cylinders?

SDA cylinders are ideal when:

1. Installation space is limited
2. Short stroke is required
3. Load conditions are light to medium
4. Compact machine design is important

Common applications:

1. Mini automation machines
2. Automatic jigs
3. Pick & place systems
4. Small clamping mechanisms

Which Cylinder Is More Durable?

If used properly:

1. Both SC and SDA cylinders offer good durability

However:

1. SC cylinders are more stable under heavy loads
2. SDA cylinders are better for light loads and short strokes

👉 If your application involves:

1. Long stroke
2. Off-center loading
3. High-speed movement

→ SC cylinders are usually the better option.

Should You Choose SC or SDA?

Choose SC If:

✅ High force is required

✅ Long stroke is needed

✅ Heavy loads are involved

✅ Large industrial systems are used

Choose SDA If:

✅ Space is limited

✅ Compact machine design is important

✅ Short stroke is enough

✅ Load conditions are light to medium

👉 Neither type is universally “better.”

The right choice depends on your application.

Conclusion

SC and SDA are both popular AirTAC pneumatic cylinder series, but they serve different purposes:

1. SC → stronger, more stable, versatile
2. SDA → compact, space-saving

👉 If your system requires heavy-duty industrial performance:

1. Choose the SC Series

👉 If your machine requires compact design:

1. The SDA Series is usually the better solution.
