Why Is My Pneumatic Cylinder Weak Even With Enough Pressure?

Why Does a Pneumatic Cylinder Still Feel Weak Even When Pressure Is Normal?

This is one of the most common problems in pneumatic systems.

In many situations:

1. The pressure gauge still shows 5–6 bar
2. But the cylinder:
3. Pushes weakly
4. Moves slowly
5. Cannot generate enough force
6. Fails to move the load properly

👉 In reality, the problem is often NOT the pressure itself.

The real causes are usually related to:

1. Airflow capacity
2. Incorrect cylinder bore
3. Actual load conditions
4. Air leakage
5. Improper installation

Incorrect Cylinder Bore Selection

This is the most common cause of weak cylinder force.

Many systems have:

1. Enough pressure
2. Proper valves

but:

1. The cylinder bore is too small

→ The cylinder simply cannot generate enough force.

Why Does Bore Size Affect Cylinder Force?

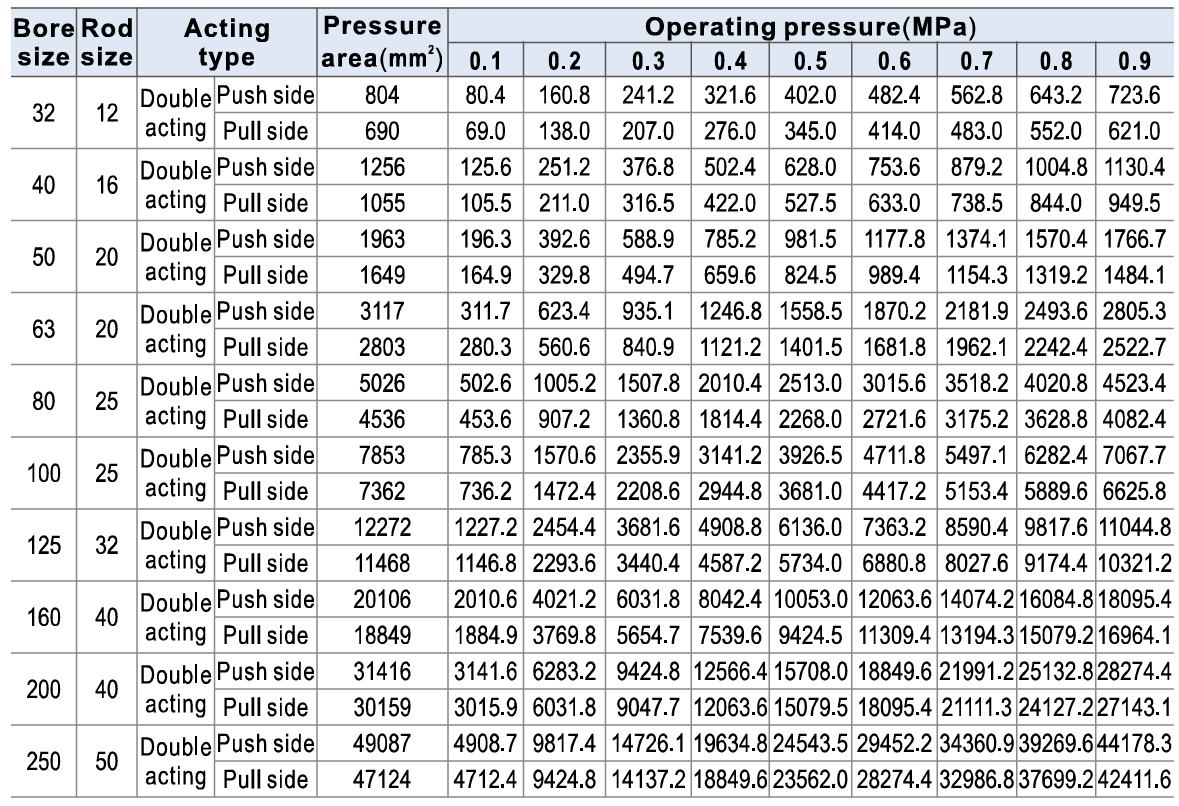

Cylinder force depends on:

1. Air pressure
2. Piston area

👉 Larger bore:

1. Larger piston area
2. Greater pushing force

F=P×AF = P \times AF=P×A

Where:

1. F = Force
2. P = Pressure
3. A = Piston area

👉 If the bore is too small:

1. Even with enough pressure
2. The cylinder will still feel weak

Insufficient Airflow

Many people only check pressure and forget about:

1. Airflow rate

👉 This is an extremely common mistake.

Example:

1. The pressure gauge still shows 6 bar
2. But:
3. The valve is too small
4. The air tubing is undersized

→ The cylinder still becomes weak.

Signs of Insufficient Airflow

1. Slow cylinder movement
2. Weak force only under load
3. Unstable movement
4. Strong at the beginning but weak at the end of stroke

Solutions

✅ Increase air tube size

✅ Use larger valves

✅ Check the FRL unit

✅ Check compressor airflow capacity

Air Leakage Problems

If:

1. Seals are worn
2. The piston rod is scratched
3. Fittings are loose

👉 Air pressure will leak from the system.

Result:

1. The pressure gauge may still show normal pressure
2. But actual cylinder force drops significantly

Signs of Air Leakage

1. Hissing air sound
2. Gradually weaker cylinder force
3. Compressor running continuously

Solutions

✅ Inspect seals

✅ Tighten pneumatic fittings

✅ Check air tubing

✅ Replace damaged seals if necessary

Actual Load Is Heavier Than Expected

Many systems:

1. Calculate the load incorrectly
2. Ignore friction
3. Ignore dynamic load conditions

👉 In real operation:

1. The cylinder cannot generate enough force

Commonly Ignored Loads

Mechanical Friction

Linear guides and machine mechanisms:

1. Often create more resistance than expected

Off-Center Loads

If the load is off-center:

1. The cylinder experiences additional side load

→ Actual pushing force decreases significantly.

High-Speed Acceleration

The faster the movement:

1. The more force is required

👉 This is a very common problem in automation systems.

Excessively Long Stroke Reduces Stability

If the cylinder stroke is too long:

1. The piston rod becomes unstable
2. Side load increases more easily

👉 This can:

1. Reduce actual force
2. Make the cylinder feel weaker

Solutions

✅ Reduce stroke length if possible

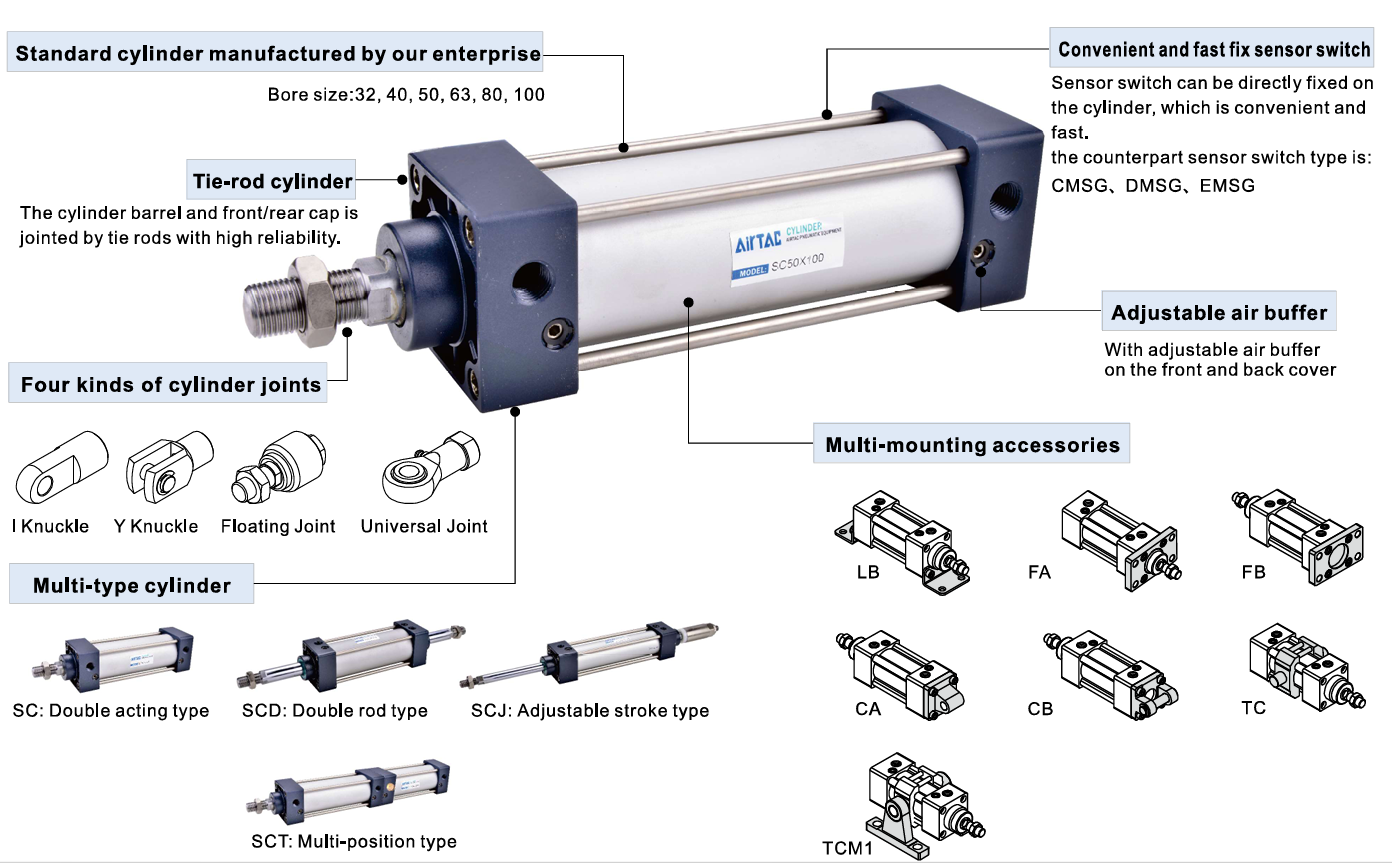

✅ Use guided cylinders

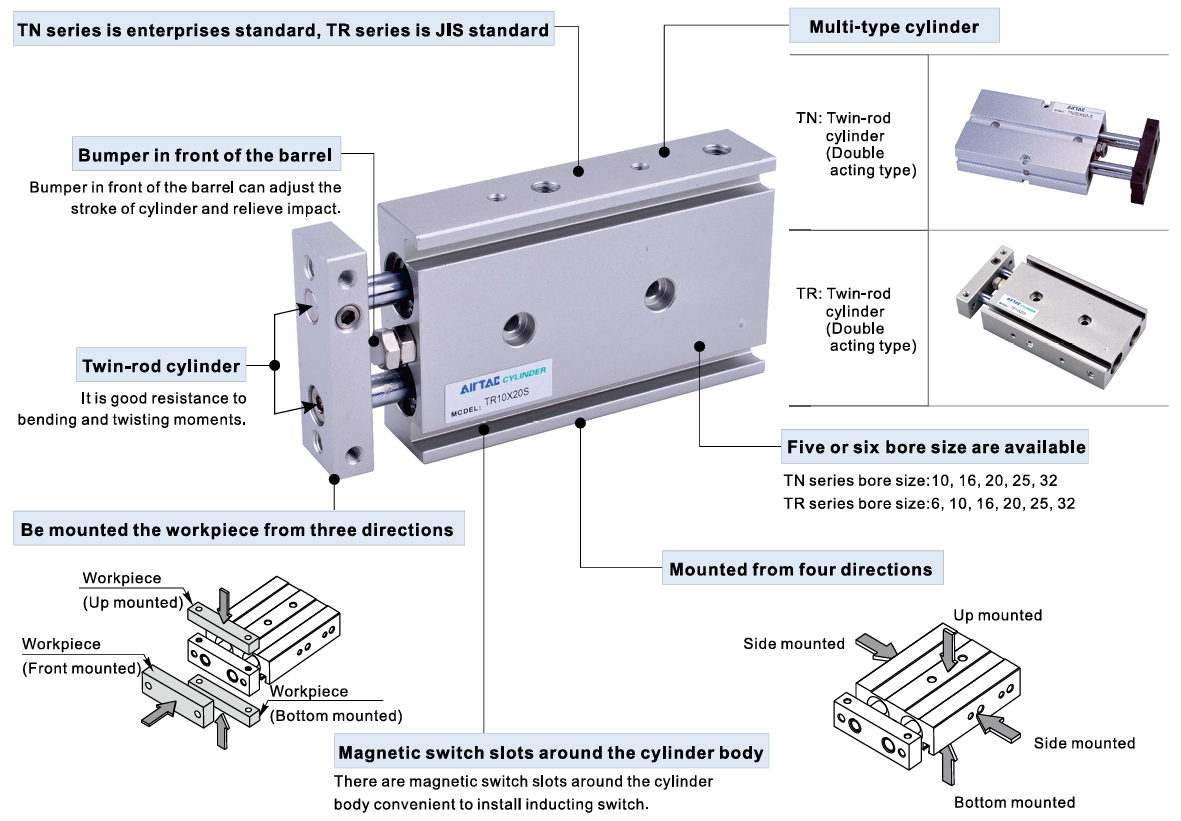

✅ Use dual rod cylinders

Solenoid Valve Is Too Small

If the valve:

1. Has low airflow capacity
2. Uses small ports

👉 The cylinder may:

1. Lack airflow under heavy load
2. Become significantly weaker

Common Symptoms

1. Uneven movement
2. Strong at first, weak later
3. Speed drops under load

Solutions

✅ Use larger airflow valves

✅ Increase air port size

✅ Check the pneumatic piping system

Dirty or Wet Compressed Air

Contaminated air:

1. Damages seals quickly
2. Causes leakage
3. Reduces cylinder performance

Solutions

✅ Install FRL units

✅ Drain water regularly

✅ Maintain the air system properly

When Should You Upgrade to a Larger Cylinder?

You should increase cylinder bore if:

1. The cylinder is always weak under load
2. Air leakage has already been checked
3. Pressure and valve size are already sufficient

👉 This usually means:

1. The current bore size is simply too small for the real application.

Conclusion

A pneumatic cylinder may feel weak even with normal pressure because of:

1. Incorrect bore selection
2. Insufficient airflow
3. Air leakage
4. Undersized valves
5. Excessively long stroke
6. Actual loads larger than expected

👉 In most cases:

1. The problem is NOT the pressure itself
2. The issue is the overall system design

👉 To improve cylinder performance:

1. Calculate force correctly
2. Select the proper bore size
3. Use appropriate valves
4. Use guided cylinders when necessary
