Pneumatic cylinders are essential components in automation systems. However, to ensure stable operation, accurate movement, and long service life, cylinders require the right accessories.

Many users focus only on selecting the cylinder itself and overlook the importance of accessories such as magnetic sensors, mounting brackets, rod-end joints, and flow control valves.

In this article, we will explore the most common pneumatic cylinder accessories and how to choose the right ones for your application.

Why Are Pneumatic Cylinder Accessories Important?

Many people assume that once a cylinder is purchased, it can be installed and operated immediately.

In reality:

1. Cylinders require proper mounting
2. Loads must be connected correctly
3. Position detection may be necessary
4. Speed often needs adjustment

Without suitable accessories:

1. Cylinder vibration increases
2. Stroke accuracy decreases
3. Piston rod wear accelerates
4. System lifespan is reduced

Common Pneumatic Cylinder Accessories

1. Foot Mount Brackets

Foot mounts are among the most commonly used accessories.

Functions:

1. Secure the cylinder to the machine frame
2. Reduce vibration
3. Improve installation stability

Commonly used with:

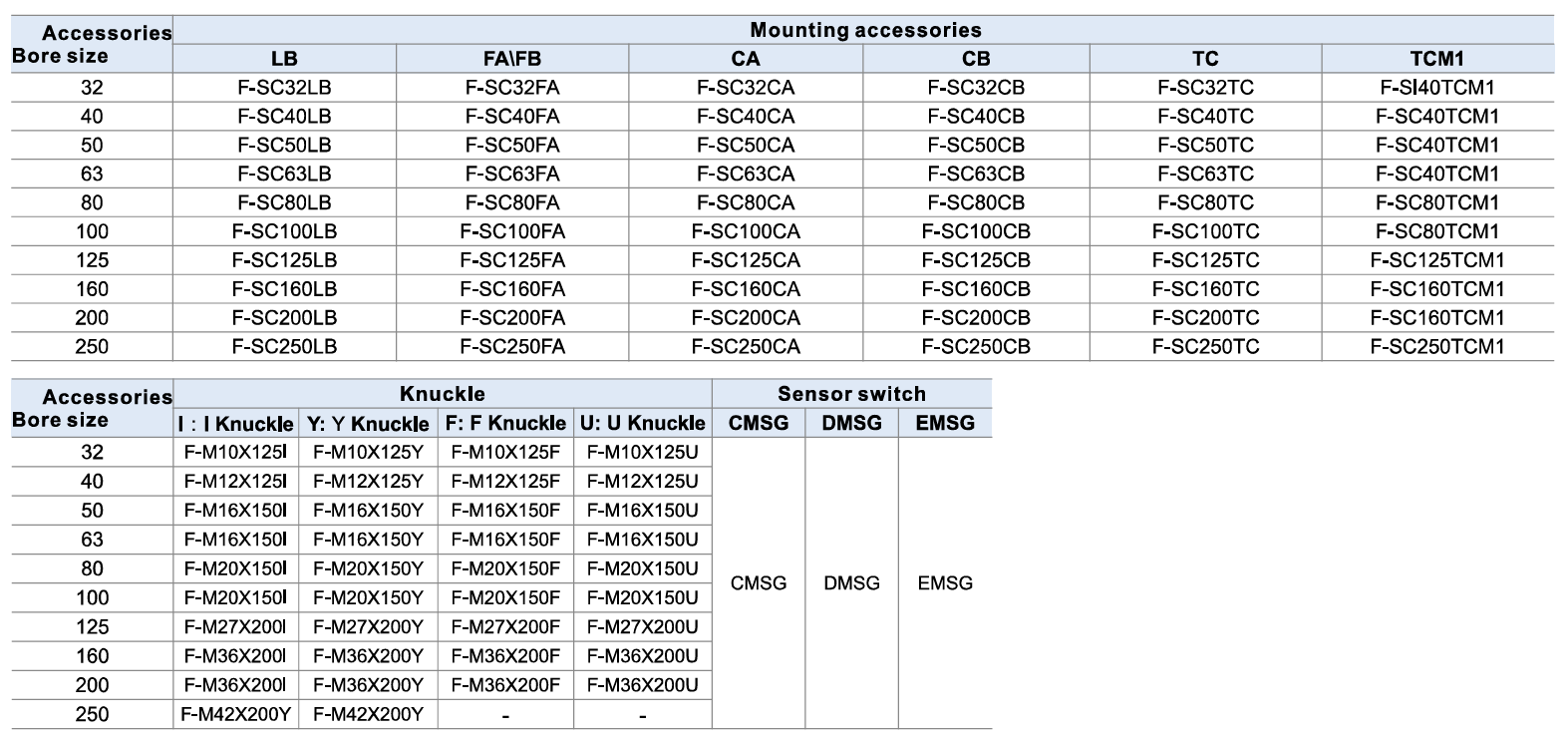

1. AirTAC SC cylinders
2. ISO standard cylinders

2. Flange Mounts

Flange mounts allow cylinders to be installed from the front or rear side.

Advantages:

1. Strong load support
2. High rigidity
3. Secure installation

Applications:

1. Pneumatic press machines
2. Heavy-duty automation systems

3. Rod End Attachments

Rod end accessories connect the piston rod to the moving load.

Common types:

1. Rod clevis
2. Rod eye
3. Spherical joint

Advantages:

1. Reduce misalignment
2. Minimize side loads
3. Extend piston rod life

Magnetic Sensors (Auto Switches)

What Is a Magnetic Sensor?

A magnetic sensor detects the piston position inside the cylinder.

Generally:

1. Cylinders with magnetic pistons can use sensors
2. Cylinders without magnets cannot use magnetic switches

Why Are Magnetic Sensors Important?

Sensors help:

✅ Monitor cylinder position

✅ Control PLC systems

✅ Count stroke cycles

✅ Improve automation accuracy

👉 Most modern automation systems use magnetic sensors.

Flow Control Valves

Flow control valves are used to adjust:

1. Extension speed
2. Retraction speed
3. Motion smoothness

Without flow control valves:

1. Cylinders may move too quickly
2. Impact forces increase
3. Vibration becomes more severe

When Should Flow Control Valves Be Used?

Recommended for:

✅ Long strokes

✅ Heavy loads

✅ High-speed applications

✅ Smooth motion requirements

FRL Units (Filter, Regulator, Lubricator)

FRL stands for:

1. Filter
2. Regulator
3. Lubricator

This is one of the most important accessories in any pneumatic system.

What Does an FRL Unit Do?

An FRL unit helps:

1. Remove water
2. Remove dust
3. Stabilize air pressure
4. Protect cylinder seals

Without an FRL unit:

1. Cylinders wear faster
2. Seals deteriorate prematurely
3. Overall efficiency decreases

Accessories You Should Buy Together with a Cylinder

When purchasing a new SC cylinder, it is recommended to include:

✅ Foot mount or flange mount

✅ Magnetic sensor

✅ Flow control valve

✅ Pneumatic fittings

✅ FRL unit

✅ Solenoid valve

👉 This is the most common accessory package used in pneumatic systems.

Conclusion

Pneumatic cylinder accessories not only simplify installation but also directly affect system reliability, efficiency, and service life.

The most common accessories include:

1. Foot mounts
2. Flange mounts
3. Rod end attachments
4. Magnetic sensors
5. Flow control valves
6. FRL units
7. Solenoid valves

👉 When selecting a pneumatic cylinder, do not focus only on bore size and stroke length. Make sure the supporting accessories are appropriate for your application.
