When selecting a pneumatic cylinder, many users focus only on bore size and stroke length. However, a cylinder cannot operate efficiently on its own.

For a pneumatic system to function reliably, a basic setup typically includes:

1. Pneumatic cylinder
2. Solenoid valve
3. FRL unit (Filter, Regulator, Lubricator)

These three components form the foundation of a pneumatic automation system and directly affect performance, reliability, and service life.

In this article, we will explain why purchasing a cylinder + valve + FRL combo is often a better solution than buying each component separately.

What Is Included in a Pneumatic Cylinder + Valve + FRL Combo?

A typical pneumatic package includes:

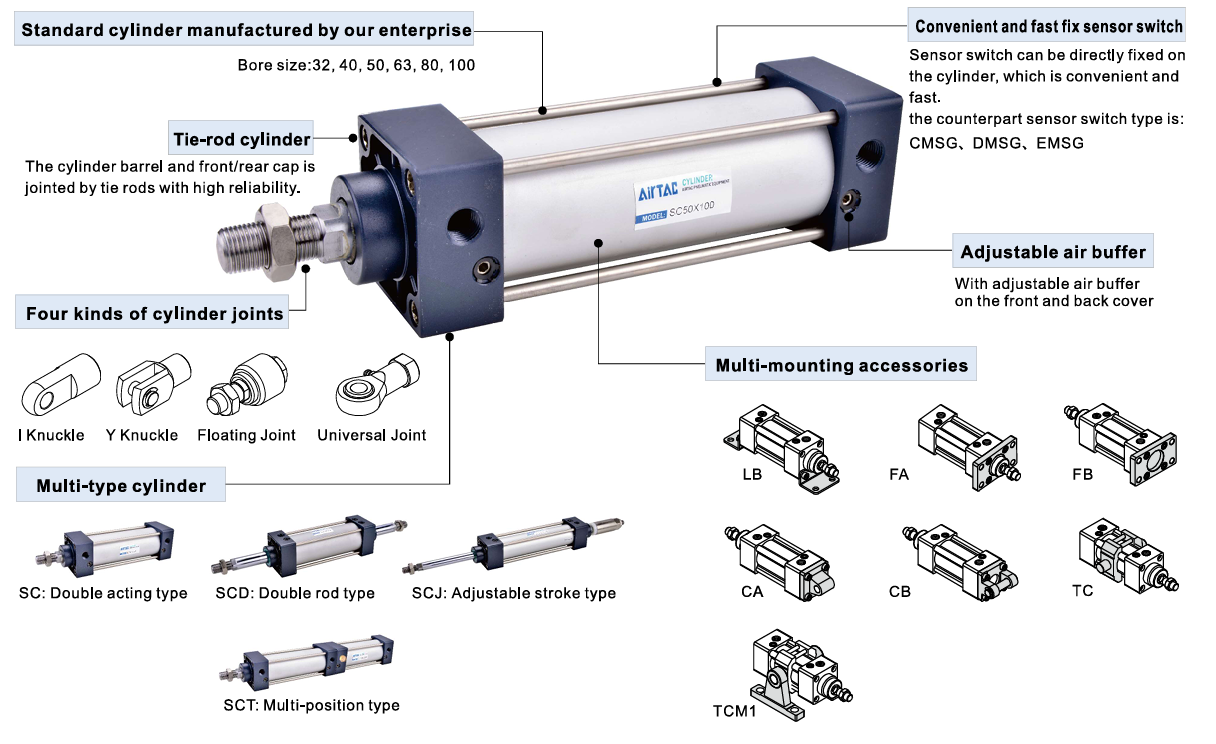

Pneumatic Cylinder

The cylinder is responsible for:

1. Linear motion
2. Pushing products
3. Clamping workpieces
4. Lifting and positioning mechanisms

Popular options include:

1. AirTAC SC Series
2. AirTAC SDA Series
3. Guided cylinders

Solenoid Valve

The solenoid valve controls:

1. Cylinder extension
2. Cylinder retraction
3. Operating speed

Common models include:

1. 3V1 Series
2. 4V110 Series
3. 4V210 Series
4. 4V310 Series

👉 The solenoid valve acts as the "brain" of the cylinder control system.

FRL Unit

FRL stands for:

1. Filter
2. Regulator
3. Lubricator

Functions:

1. Remove dust and contaminants
2. Remove moisture
3. Stabilize air pressure
4. Protect cylinder seals and internal components

Why Buy a Complete Combo Instead of Individual Components?

Guaranteed Compatibility

When purchasing components separately, users often encounter:

1. Incorrect valve selection
2. Wrong thread sizes
3. Insufficient flow capacity

A properly designed combo ensures:

1. The cylinder matches the valve
2. The valve provides adequate airflow
3. The FRL unit supports the required pressure and flow

👉 This significantly reduces engineering risks.

Saves Time

With a complete package, you don't need to:

1. Calculate component compatibility
2. Compare multiple catalogs
3. Source individual parts from different suppliers

👉 This is especially beneficial for machine builders and automation integrators.

Reduces Overall Cost

In many cases:

1. Combo packages offer better pricing
2. Shipping costs are reduced
3. Procurement time is minimized

How to Choose the Right Pneumatic Combo

Step 1: Determine the Required Load

Examples:

1. Below 50 kg
2. 50–150 kg
3. Above 150 kg

Recommended cylinder sizes:

1. SC32
2. SC50
3. SC63
4. SC80

Step 2: Determine the Stroke Length

Common stroke lengths:

1. 50 mm
2. 100 mm
3. 200 mm
4. 300 mm

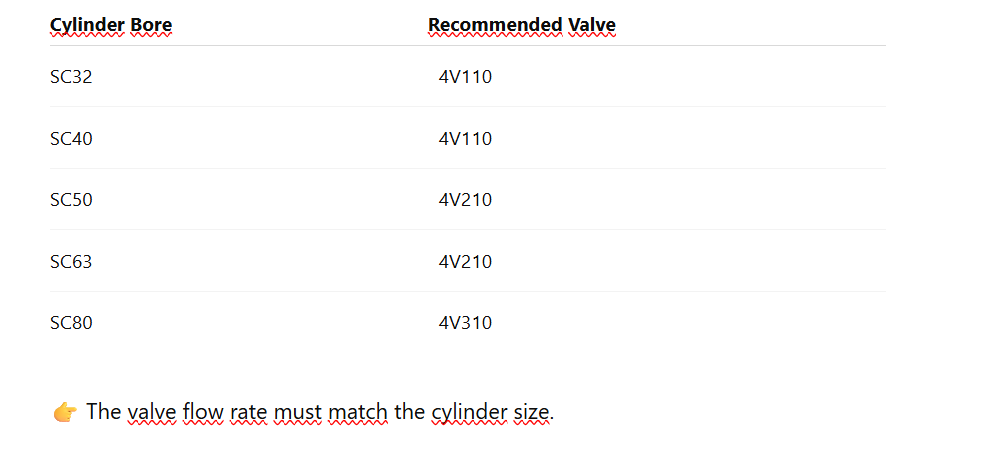

Step 3: Select the Appropriate Solenoid Valve

Typical recommendations:

Step 4: Select the Correct FRL Unit

FRL selection depends on:

1. Air consumption
2. Pipe size
3. Number of connected devices

Popular Pneumatic Cylinder Combo Configurations

SC63x100 Package

Includes:

1. SC63x100-S Cylinder
2. 4V210-08 Solenoid Valve
3. BFR3000 FRL Unit

Applications:

1. Press machines
2. Packaging equipment
3. Conveyor systems

SC80x200 Package

Includes:

1. SC80x200-S Cylinder
2. 4V310-10 Solenoid Valve
3. BFR4000 FRL Unit

Applications:

1. Heavy-duty automation
2. Lifting systems

SDA Compact Cylinder Package

Includes:

1. SDA50x50 Cylinder
2. 4V110 Solenoid Valve
3. BFR2000 FRL Unit

Applications:

1. Small machines
2. Space-limited installations

Common Mistakes When Choosing a Pneumatic Combo

Valve Too Small

Results:

1. Slow cylinder movement
2. Reduced performance

FRL Unit Too Small

Results:

1. Pressure drop
2. Insufficient airflow

Incorrect Bore Selection

Results:

1. Insufficient force
2. Excessive air consumption

Conclusion

A pneumatic cylinder + valve + FRL combo is one of the most efficient solutions for modern pneumatic automation systems.

Benefits include:

✅ Fully compatible components

✅ Easier installation

✅ Fewer engineering errors

✅ Lower overall cost

✅ Faster implementation

👉 If you are not experienced in selecting individual pneumatic components, a complete combo package provides a reliable and cost-effective solution.
