3A-manifold Valve Pneumatic Valve Manifold Base, Multi-Station Air Valve Manifold for Industrial Automation

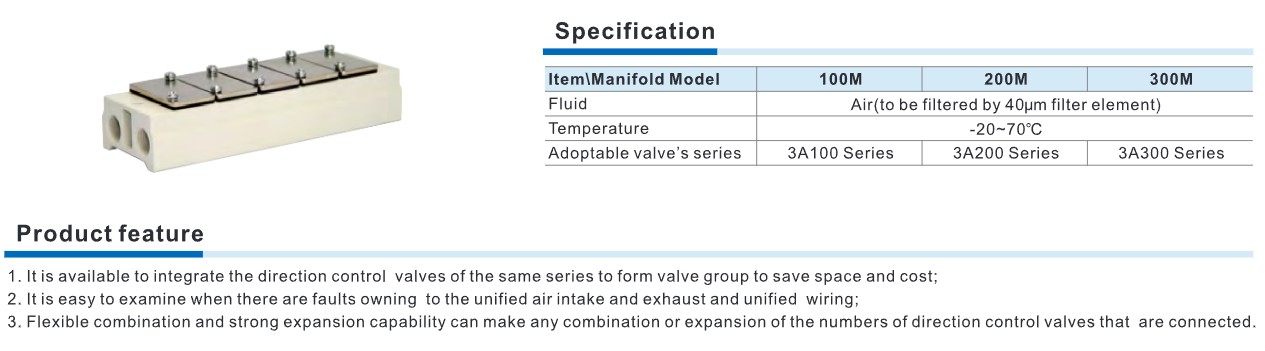

Specification 3A:

Product Overview

3A-manifold Valve pneumatic manifold is a base block used to mount multiple directional control valves in one integrated pneumatic system. It allows several valves to be connected together to form a valve group, which helps simplify air piping, save installation space, and reduce system costs. This manifold is widely used in automation systems, industrial machinery, and pneumatic control applications.

Product Features and Characteristics

The manifold is designed to integrate directional control valves of the same series, creating a compact valve assembly for efficient pneumatic control.

1. Supports multiple valves connection in the same series to form a valve group.
2. Unified air inlet and exhaust structure, making system inspection and troubleshooting easier.
3. Flexible modular design, allowing easy expansion by adding more valves.
4. Compact structure helps save installation space and reduce pneumatic piping complexity.

Technical Specifications

1. Manifold models: 100M, 200M, 300M
2. Working fluid: Compressed air filtered through a 40µm filter element
3. Operating temperature: -20°C to 70°C
4. Compatible valve series:
5. 3A100 Series
6. 3A200 Series
7. 3A300 Series
8. Number of stations: 1 to 16 valve stations
9. Thread types available:
10. PT
11. G
12. NPT
13. Manifold kit includes: manifold body, sealing components, and mounting screws
14. Blank plate kit includes: blank plate and fixing screws

Product Advantages

1. Space-saving design for compact pneumatic systems.
2. Reduced piping and installation cost compared to separate valve installations.
3. Easy installation, maintenance, and system expansion.
4. Durable construction suitable for industrial working environments.
5. Provides organized and efficient pneumatic valve management.

Applications

3A-manifold Valve pneumatic manifold is widely used in industrial fields such as:

1. Automation and manufacturing production lines
2. Industrial pneumatic control systems
3. Packaging machines, labeling machines, and assembly equipment
4. Mechanical manufacturing and industrial robotics
5. Systems requiring multiple pneumatic valves working simultaneously.
