Airtac 4A100 Series Pneumatic Air Valve 5/2 5/3 Way Solenoid Valve M5 1/8 Inch Industrial Pneumatic Control Valve

Specification 4A100:

Product Description – AirTAC 4A100 Pneumatic Air Valve

The AirTAC 4A100 Series pneumatic valve is a 5/2 and 5/3 way air control valve designed for industrial automation systems. It features a sliding spool structure that ensures high sealing performance, fast response, and stable operation. With a compact design and reliable durability, this valve series is widely used in pneumatic cylinder control and automated machinery.

Key Features

1. Sliding column structure ensures excellent sealing and sensitive response.
2. Available in 5/2 way and 5/3 way configurations for different pneumatic control applications.
3. Double air control models include memory function for stable system operation.
4. Internal precision processing technology provides low friction, low starting pressure, and long service life.
5. No lubrication oil required, reducing maintenance cost.
6. Compatible with manifold installation to save mounting space.

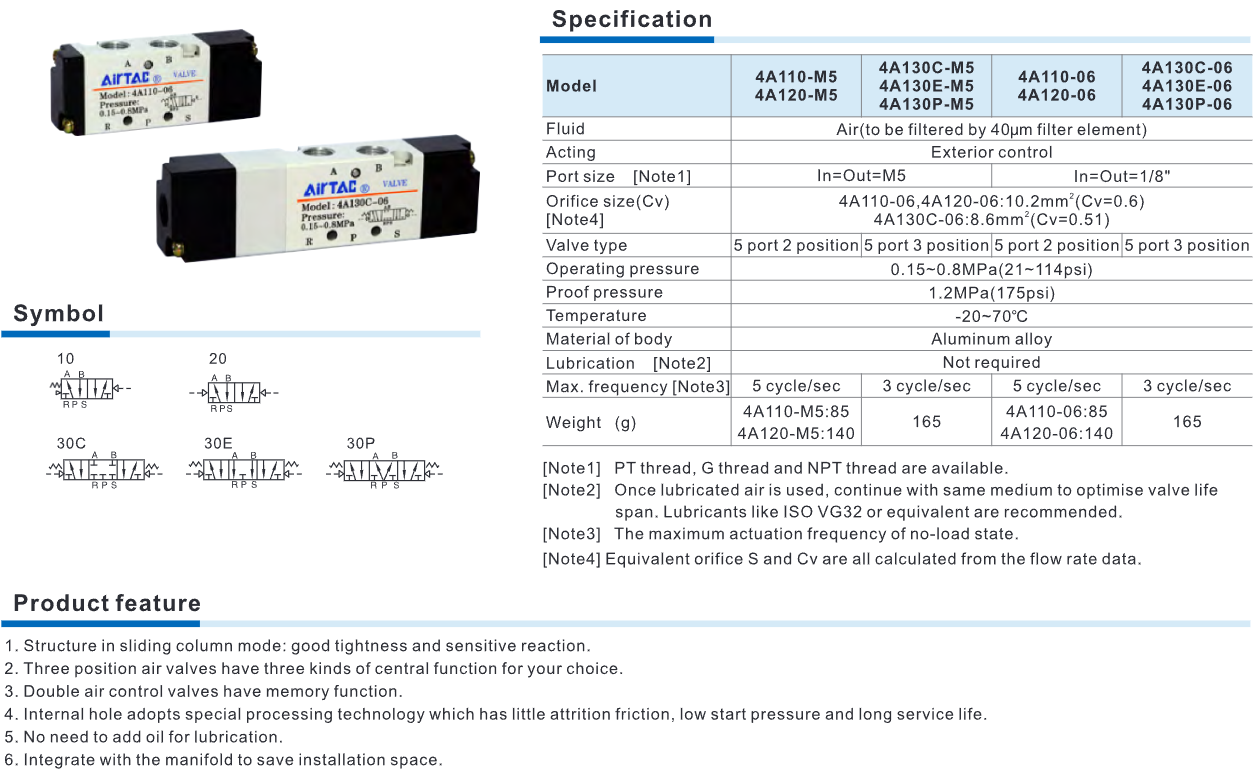

Technical Specifications

1. Product series: AirTAC 4A100 Series
2. Valve type: 5 port 2 position / 5 port 3 position
3. Working medium: Air (filtered by 40µm filter element)
4. Acting type: External control
5. Port size: M5 or 1/8 inch
6. Operating pressure: 0.15 – 0.8 MPa (21 – 114 psi)
7. Proof pressure: 1.2 MPa (175 psi)
8. Operating temperature: -20°C to 70°C
9. Body material: Aluminum alloy
10. Maximum operating frequency: 3 – 5 cycles per second

Advantages

1. Durable and stable performance
2. Compact design for easy installation
3. Low maintenance cost
4. Ideal for industrial automation systems

Applications

The AirTAC 4A100 pneumatic valve is widely used in:

1. Industrial automation machines
2. Pneumatic cylinder control systems
3. Packaging and assembly equipment
4. Industrial robots and automated production lines
