4A200 Series Pneumatic Air Control Valve 5/2 5/3 Way Directional Valve 4A210 4A220 4A230C 4A230E 4A230P
The 4A200 Series pneumatic air control valve is designed for directional airflow control in industrial pneumatic systems. Available in 5/2 way and 5/3 way configurations, it allows precise switching of compressed air to control pneumatic cylinders and actuators. The valve features external air control actuation with a sliding spool structure that ensures quick response, high sealing performance, and stable operation. Built with a durable aluminum alloy body, the internal air passages are specially processed to reduce friction and extend service life. The valve also supports manifold mounting to form valve groups, saving installation space and improving efficiency in automation equipment, packaging machines, and industrial pneumatic control systems.
- 4A200
- 4A210-06
- 4A220-06
- 4A230C-06
- 4A230E-06
- 4A230P-06
- 4A210-08
- 4A220-08
- 4A230C-08
- 4A230E-08
- 4A230P-08
- 4A210
- 4A220
- 4A230C
- 4A230E
- 4A230P
- pneumatic air valve
- 5/2 pneumatic valve
- 5/3 pneumatic valve
- directional air valve
- industrial pneumatic valve
Design file download links:
Other fileRAR filePDF fileDescription

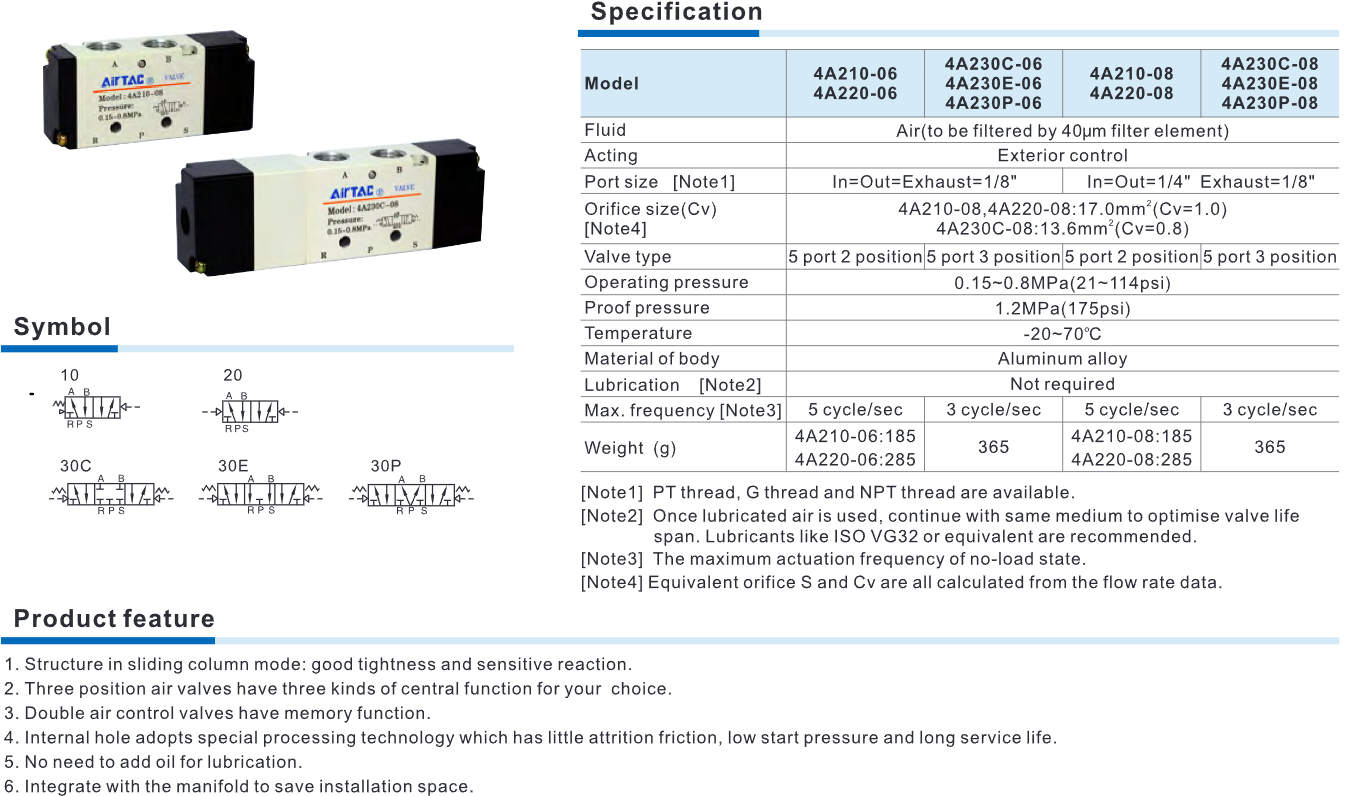

Specification 4A200:
Product Overview
The 4A200 Series pneumatic air control valve is designed to control the direction of compressed air in industrial pneumatic systems. It is used to switch air supply and exhaust flow for pneumatic cylinders and actuators, ensuring accurate and stable system operation. The valve supports 5/2 way and 5/3 way configurations, making it suitable for a wide range of industrial automation and pneumatic control applications.
Key Features
- Sliding spool structure provides quick response and excellent sealing performance
- Body made from high-quality aluminum alloy for durability and lightweight design
- Precision-machined air passages to reduce friction and improve airflow efficiency
- Multiple center functions available for 5/3 valves (closed center, exhaust center, pressure center)
- Double air control valves feature memory function for stable operation
- Can be mounted on a manifold to form valve groups, saving installation space
- Lubrication not required, reducing maintenance cost
Technical Specifications
- Valve Type: Pneumatic Directional Control Valve
- Configuration: 5/2 Way or 5/3 Way
- Fluid: Filtered compressed air (40µm filtration)
- Control Method: External air control
- Port Size: 1/8”, 1/4”
- Operating Pressure: 0.15 – 0.8 MPa (21 – 114 psi)
- Proof Pressure: 1.2 MPa (175 psi)
- Operating Temperature: -20°C to 70°C
- Maximum Frequency: 3 – 5 cycles/sec
- Body Material: Aluminum alloy
Advantages
- High sealing performance and stable operation
- Optimized internal structure for low friction and long service life
- Fast response for precise pneumatic control
- Easy integration into existing pneumatic systems
- Reduced maintenance cost thanks to no lubrication requirement
Applications
- Pneumatic cylinder control systems
- Industrial automation production lines
- Packaging machinery and mechanical equipment
- Robotics and automated industrial machines
- Compressed air control systems in manufacturing plants
