4A400 Series Pneumatic Directional Air Valve 5/2 5/3 Way Control Valve 4A410 4A420 4A430C 4A430E 4A430P

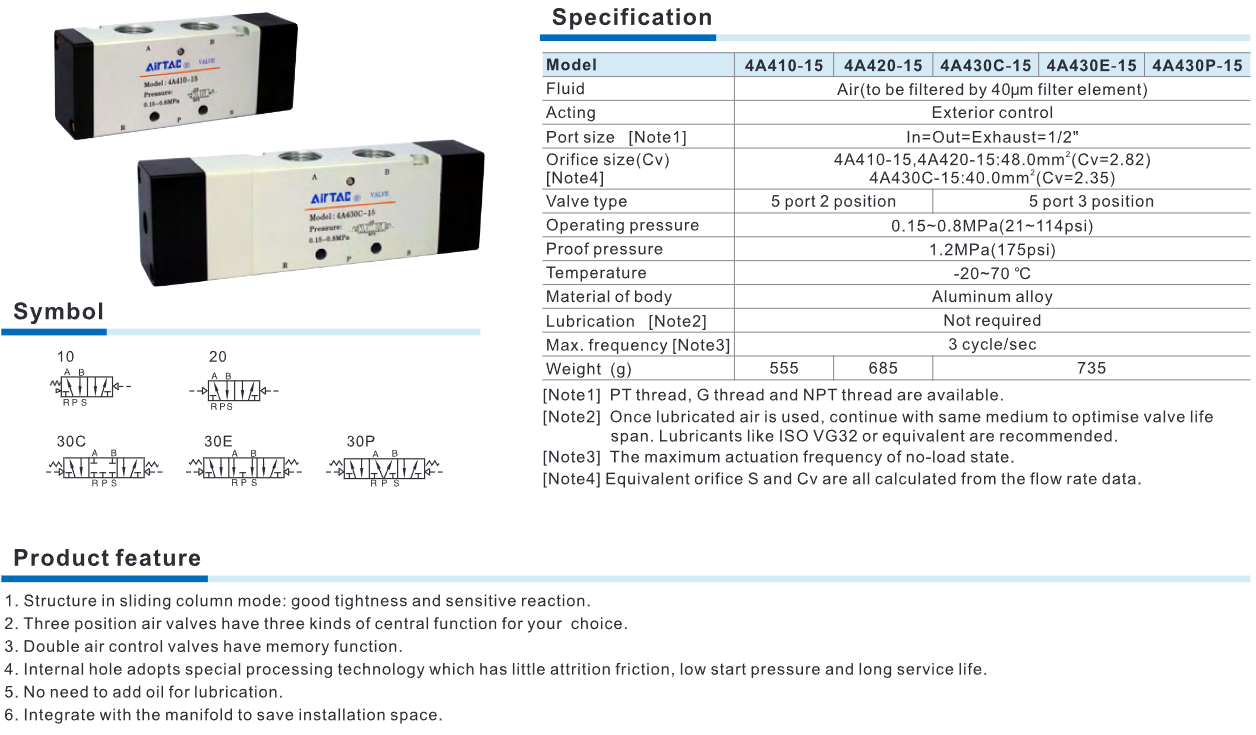

Specification 4A400:

Product Overview

The 4A400 Series pneumatic directional control valve is designed to control compressed air flow direction in industrial pneumatic systems. It precisely switches air supply and exhaust flow to operate pneumatic cylinders and actuators. With support for 5/2 way and 5/3 way configurations, the 4A400 series is ideal for applications requiring high airflow capacity and stable performance in industrial automation systems.

Key Features

1. Sliding spool structure ensures fast response and reliable sealing performance
2. Body made from high-strength aluminum alloy for durability and lightweight design
3. Precision-machined internal air channels to increase airflow capacity and reduce pressure loss
4. Multiple center functions available for 5/3 valves (closed center, exhaust center, pressure center)
5. Double air control valves include memory function for stable operation
6. Can be mounted on a manifold to form valve groups, saving installation space
7. No lubrication required, reducing maintenance costs

Technical Specifications

1. Valve Type: Pneumatic Directional Control Valve
2. Configuration: 5/2 Way or 5/3 Way
3. Fluid: Filtered compressed air (40µm filtration)
4. Control Method: External air control
5. Port Size: 1/2 inch
6. Operating Pressure: 0.15 – 0.8 MPa (21 – 114 psi)
7. Proof Pressure: 1.2 MPa (175 psi)
8. Operating Temperature: -20°C to 70°C
9. Maximum Frequency: 3 cycles/sec
10. Body Material: Aluminum alloy

Advantages

1. High airflow capacity for large pneumatic systems
2. Excellent sealing performance to minimize air leakage
3. Optimized internal structure for low friction and long service life
4. Fast response for precise pneumatic control
5. Reduced maintenance cost due to no lubrication requirement

Applications

1. Pneumatic cylinder control systems
2. Industrial automation production lines
3. Packaging machinery and mechanical equipment
4. Robotics and automated industrial machines
5. Compressed air control systems in manufacturing plants
