CPV15S Series Integrated Solenoid Valve Manifold – Compact Pneumatic Valve System for Industrial Automation

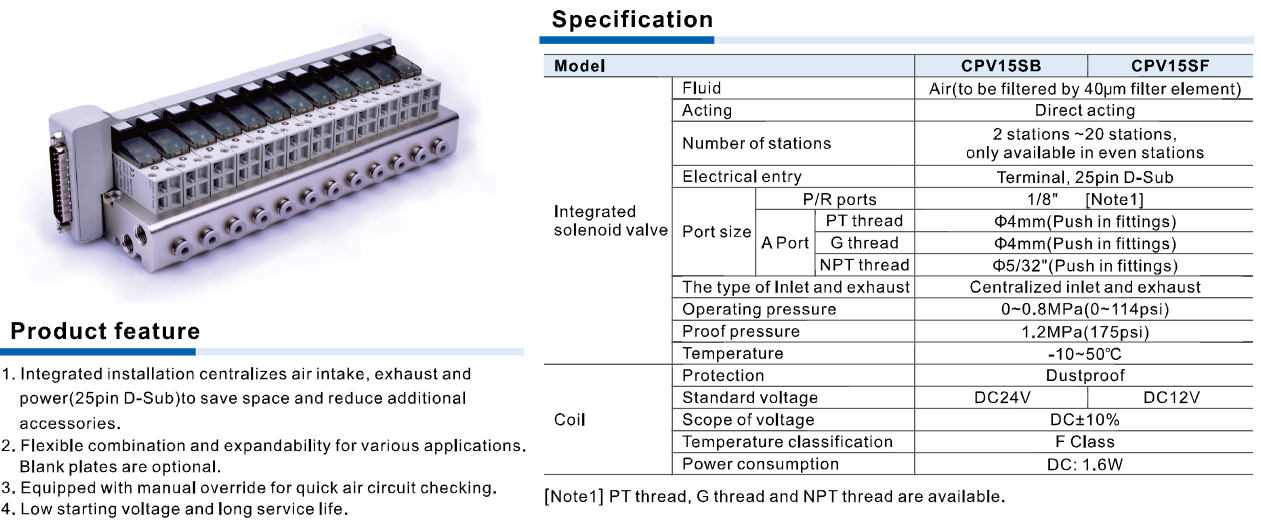

Specification CPV15S Series:

CPV15S Series Product Description – Integrated Solenoid Valve Manifold

The CPV15S Series is an integrated pneumatic solenoid valve manifold system designed to centralize air supply, exhaust, and electrical connections into a single compact unit. This design helps reduce installation space, simplify pneumatic tubing, and streamline electrical wiring, making it ideal for modern industrial automation equipment. Its modular structure allows multiple solenoid valves to be mounted on the same manifold for efficient pneumatic control.

Features and Characteristics

The CPV15S system features a compact manifold structure that allows multiple solenoid valves to be installed on a single base, forming a centralized pneumatic control unit. This design enhances system reliability and reduces the number of required accessories.

One of the key highlights is the centralized air inlet, exhaust, and 25-pin D-Sub electrical connection, significantly reducing pneumatic tubing and wiring complexity. This results in a cleaner and more organized control system.

The manifold supports flexible expansion from 2 to 20 stations, enabling users to configure the system according to application requirements. Additional stations can be added easily when the system needs to be expanded.

Each valve is equipped with manual override, allowing quick pneumatic circuit testing during maintenance or troubleshooting. The coil design also ensures low starting voltage and extended service life, providing reliable performance in industrial environments.

Technical Specifications

Model: CPV15SB / CPV15SF – CPV15S Series

Fluid: Compressed air filtered by a 40 µm filter element

Acting type: Direct acting

Number of stations: 2 – 20 stations (even numbers only)

Electrical connection: Terminal, 25-pin D-Sub

Port size:

P/R port: 1/8 inch

A port:

PT thread: Ø4 mm push-in fittings

G thread: Ø4 mm push-in fittings

NPT thread: Ø5/32 inch push-in fittings

Inlet and exhaust type: Centralized inlet and exhaust

Operating pressure: 0 – 0.8 MPa (0 – 114 psi)

Proof pressure: 1.2 MPa (175 psi)

Operating temperature: -10°C to 50°C

Coil specifications:

Standard voltage: DC24V / DC12V

Voltage tolerance: ±10%

Insulation class: Class F

Power consumption: DC 1.6W

Protection: Dustproof

Product Advantages

The CPV15S Series offers several advantages for pneumatic automation systems.

Its integrated manifold design saves installation space and reduces pneumatic accessories, making it ideal for compact machine designs.

The modular architecture allows easy expansion and flexible configuration, suitable for various industrial automation systems.

The D-Sub electrical connection provides fast wiring, stable connection, and convenient maintenance, reducing installation time.

Additionally, the valves feature low power consumption and long service life, ensuring stable operation in demanding industrial environments.

Applications

The CPV15S solenoid valve manifold is widely used in industries requiring precise pneumatic control.

Typical applications include industrial automation systems, packaging machines, labeling equipment, automated assembly machines, and robotic production lines.

It is also commonly used in machine manufacturing, pneumatic cylinder control systems, and multi-channel pneumatic distribution systems.
