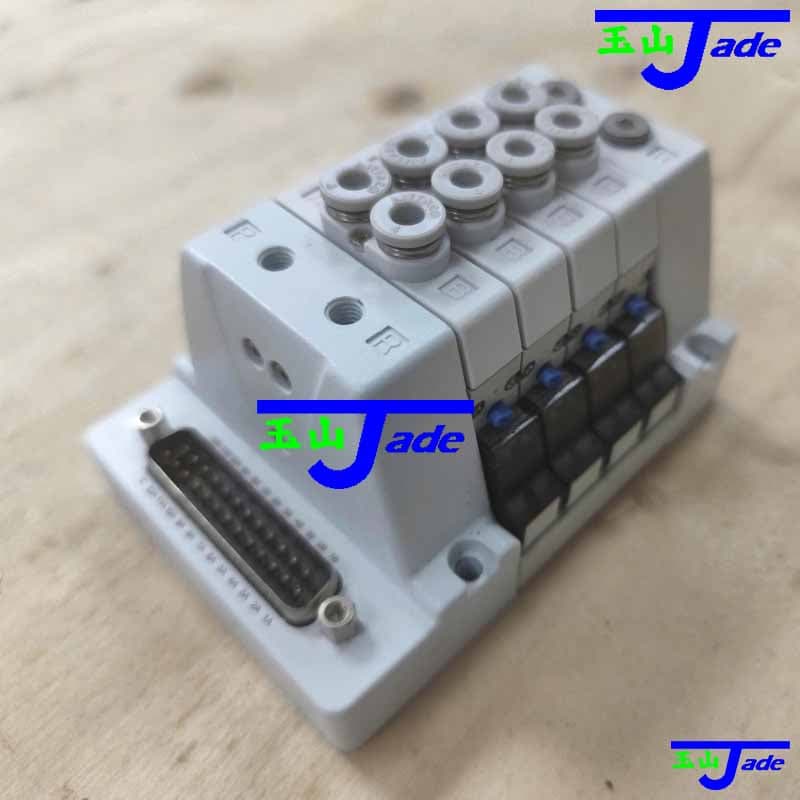

CPV10S Series Integrated Solenoid Valve Manifold, 4–24 Stations, DC12V/DC24V, Compact Pneumatic Control Valve

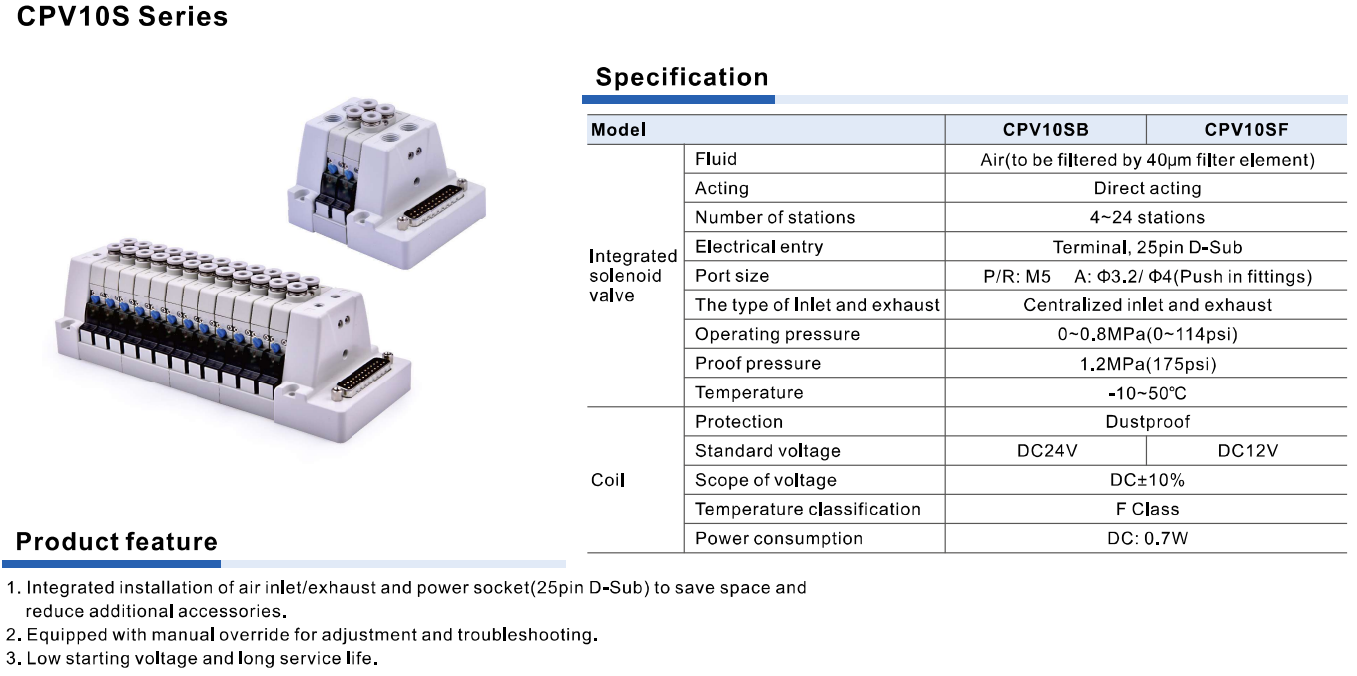

Specification:

This series operates with filtered compressed air (40µm) and features a direct acting solenoid valve design, ensuring fast response and precise control. With support for 4 to 24 stations, the CPV10S manifold can be flexibly configured to meet various system requirements while reducing installation space and overall cost.

The valve manifold integrates centralized air supply and exhaust ports together with a 25-pin D-Sub electrical connector, simplifying wiring, installation, and maintenance. It supports DC12V or DC24V power supply, consumes only 0.7W, and operates reliably under pressures up to 0.8 MPa within a temperature range of -10°C to 50°C.

For enhanced usability, the CPV10S Series is equipped with a manual override function, allowing easy adjustment and troubleshooting during operation.

🔹 Key Features

1. Integrated pneumatic solenoid valve manifold design
2. Configurable 4–24 stations for flexible system expansion
3. Centralized inlet and exhaust ports
4. 25-pin D-Sub electrical connection for simplified wiring
5. Low power consumption, DC12V / DC24V available
6. Dustproof construction and long service life

🔹 Applications

1. Industrial automation systems
2. Packaging and assembly machines
3. Pneumatic production lines
4. Air control systems in manufacturing equipment
