CPV10M Series Manifold for CPV10 Micro Solenoid Valve – Multi-Station Pneumatic Valve Manifold

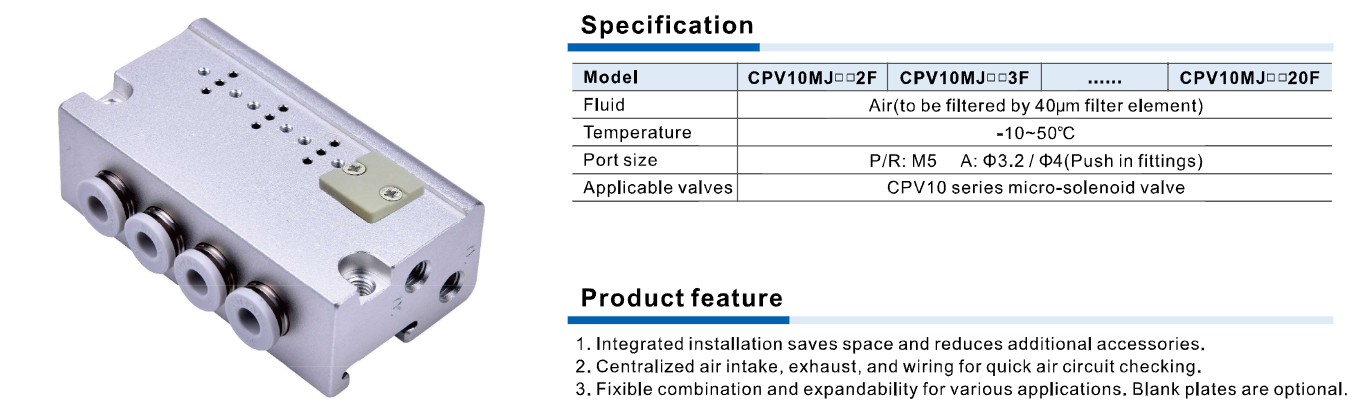

Specification CPV10 ManiFold:

CPV10M Series Manifold for CPV10 Micro Solenoid Valves

The CPV10M Series is a pneumatic manifold designed for CPV10 micro solenoid valves, allowing multiple valves to be installed on a single compact base to optimize pneumatic systems in automation equipment. With its integrated structure, the manifold enables centralized air distribution while reducing piping and additional fittings, making the system more compact and easier to install and maintain. This product is ideal for applications requiring multi-valve pneumatic control in limited installation space, such as packaging machines, electronic assembly equipment, and industrial automation systems.

Features and Characteristics

The CPV10M Series features an integrated manifold structure that allows multiple CPV10 solenoid valves to be mounted on one base, reducing installation space and simplifying pneumatic system design.

The system provides centralized air supply, exhaust, and electrical wiring, enabling quick pneumatic circuit inspection and easier maintenance.

The manifold supports flexible station configurations from 2 to 20 stations, allowing users to expand the system according to operational requirements.

Air ports are designed with M5 ports for P/R and push-in fittings Ø3.2 or Ø4 for port A, ensuring fast and reliable connection with standard pneumatic tubing.

In addition, the manifold supports optional blank plates, which allow unused stations to be sealed, providing greater flexibility when modifying or expanding the system.

Technical Specifications

Model: CPV10M Series

Product type: Manifold for CPV10 micro solenoid valves

Fluid: Compressed air filtered by a 40 µm filter element

Operating temperature: -10°C to 50°C

Port size:

P / R: M5

A: Ø3.2 or Ø4 push-in fittings

Applicable valve: CPV10 Series micro solenoid valve

Number of stations:

2F, 4F, 6F, 8F, 10F, 12F, 16F, 20F

Optional accessory:

Blank plate kit (including plate, gasket and screws)

Product Advantages

The CPV10M Series manifold provides several benefits for modern pneumatic control systems.

Its manifold design significantly reduces pneumatic tubing and fittings, resulting in a cleaner and more organized system layout.

The compact structure helps save installation space, making it ideal for small automation equipment.

With multiple station configurations, the manifold offers excellent scalability for system expansion or modification.

Additionally, the centralized air supply and exhaust design allows faster pneumatic circuit inspection and easier system maintenance.

Applications

The CPV10M Series is widely used in systems that require multiple pneumatic valves in compact installations.

Typical applications include industrial automation equipment, packaging machines, electronic component assembly lines, automated production systems, and multi-channel pneumatic control systems.

It is also suitable for industrial robots, laboratory equipment, and precision pneumatic control applications
