CPV15M Series Pneumatic Manifold – Manifold Base for CPV15 Micro Solenoid Valves

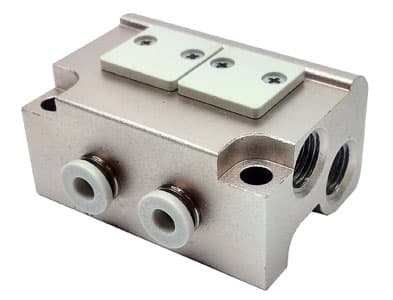

The CPV15M Series is a pneumatic manifold base designed for CPV15 micro solenoid valves, providing centralized air supply and exhaust ports in a compact structure. This design helps reduce installation space, minimize pneumatic tubing, and simplify system layout. The manifold supports 2 to 20 stations and is compatible with PT, G, and NPT thread types, with push-in fittings for 4 mm or 5/32 inch tubing. The CPV15M manifold is ideal for industrial automation systems, packaging machines, production lines, and multi-channel pneumatic control applications.
- CPV15M
- CPV15M2F
- CPV15M3F
- CPV15M4F
- CPV15M5F
- CPV15M6F
- CPV15M8F
- CPV15M10F
- CPV15M12F
- CPV15M14F
- CPV15M16F
- CPV15M18F
- CPV15M20F
- CPV15M2F-G
- CPV15M2F-T
- CPV15M4F-G
- CPV15M4F-T
- CPV15M6F-G
- CPV15M6F-T
- CPV15M20F-G
- CPV15M20F-T
- P-CPV15S-R2
- pneumatic manifold for solenoid valve
- CPV15 manifold base
- pneumatic valve manifold block
- industrial pneumatic manifold
- micro solenoid valve manifold base
Design file download links:
Other fileOther filePDF fileDescription
Specification CPV15S Manifold:
CPV15M Series Product Description – Pneumatic Manifold
The CPV15M Series is a pneumatic manifold base designed for CPV15 micro solenoid valves, providing centralized air supply and distribution in a compact structure. This design helps optimize pneumatic systems, reduce installation components, and save installation space, making it suitable for modern industrial automation equipment.
The manifold allows multiple solenoid valves to be installed on a single base, creating a neat and efficient pneumatic control system that is easy to maintain and expand.
Features and Characteristics
The CPV15M Series features a compact integrated manifold structure that supports the installation of multiple CPV15 solenoid valves on a single base. This significantly reduces pneumatic tubing and simplifies system layout.
The centralized air supply and exhaust design improves air distribution efficiency and allows quick inspection and maintenance of pneumatic circuits.
The manifold supports multiple valve stations, enabling flexible system configuration depending on the application requirements. Additional stations can be added easily when expanding the system.
The product also supports blank plates to seal unused stations, ensuring stable operation even when not all valve positions are installed.

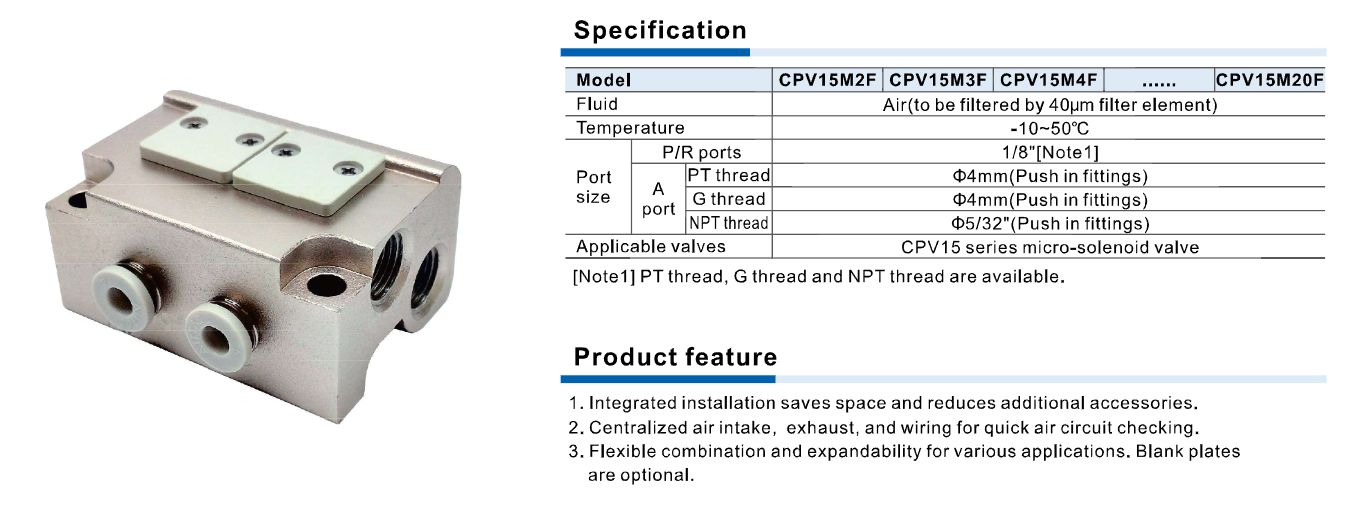

Technical Specifications
Model: CPV15M Series
Product type: Manifold for CPV15 micro solenoid valves
Fluid: Compressed air filtered by a 40 µm filter element
Operating temperature: -10°C to 50°C
Port size:
P/R port: 1/8 inch
A port:
PT thread: Ø4 mm push-in fittings
G thread: Ø4 mm push-in fittings
NPT thread: Ø5/32 inch push-in fittings
Number of stations: 2 to 20 stations
Applicable valve: CPV15 Series micro solenoid valve
Thread types available: PT, G, and NPT
Product Advantages
The CPV15M Series provides several advantages for pneumatic systems.
Its manifold design reduces pneumatic tubing and accessories, making the system cleaner and easier to install.
The modular structure allows flexible expansion and configuration, making it suitable for different machine sizes and automation requirements.
It also helps improve air distribution stability, ensuring consistent air supply to each solenoid valve in the system.
Applications
The CPV15M manifold is widely used in industries that require multi-channel pneumatic control.
Typical applications include industrial automation systems, packaging machines, automated assembly equipment, production lines, and industrial robotics.
It is also commonly used in pneumatic cylinder control systems, machine manufacturing equipment, and multi-channel pneumatic distribution systems.
