/ CPV15 Series Micro Solenoid Valve 3/2 Way – Compact Pneumatic Valve 0~0.8MPa
CPV15 Series Micro Solenoid Valve 3/2 Way – Compact Pneumatic Valve 0~0.8MPa
The CPV15 Series Micro Solenoid Valve is a compact 3-port 2-position direct acting pneumatic valve designed for precise air flow control in automation systems. It supports multiple voltages including AC220V, AC110V, AC24V, DC24V, and DC12V, with low power consumption and fast response time (<10 ms). With an operating pressure range of 0–0.8 MPa, dustproof protection, and long service life, the CPV15 valve is ideal for industrial automation, pneumatic control systems, robotics, and small machinery applications.
- CPV15
- CPV15P-A
- CPV15A-R
- CPV15A-P
- CPV15B
- CPV15B-P-050
- CPV15B-P-200
- CPV15A-P-050
- CPV15A-P-200
- CPV15E-P-050
- CPV15E-P-200
- CPV15F-P-050
- CPV15F-P-200
- CPVT050
- CPVT200
- micro solenoid valve
- 3/2 way pneumatic solenoid valve
- CPV15 micro solenoid valve
- pneumatic air solenoid valve
- compact solenoid valve for automation
Design file download links:
Other fileRAR filePDF fileDescription

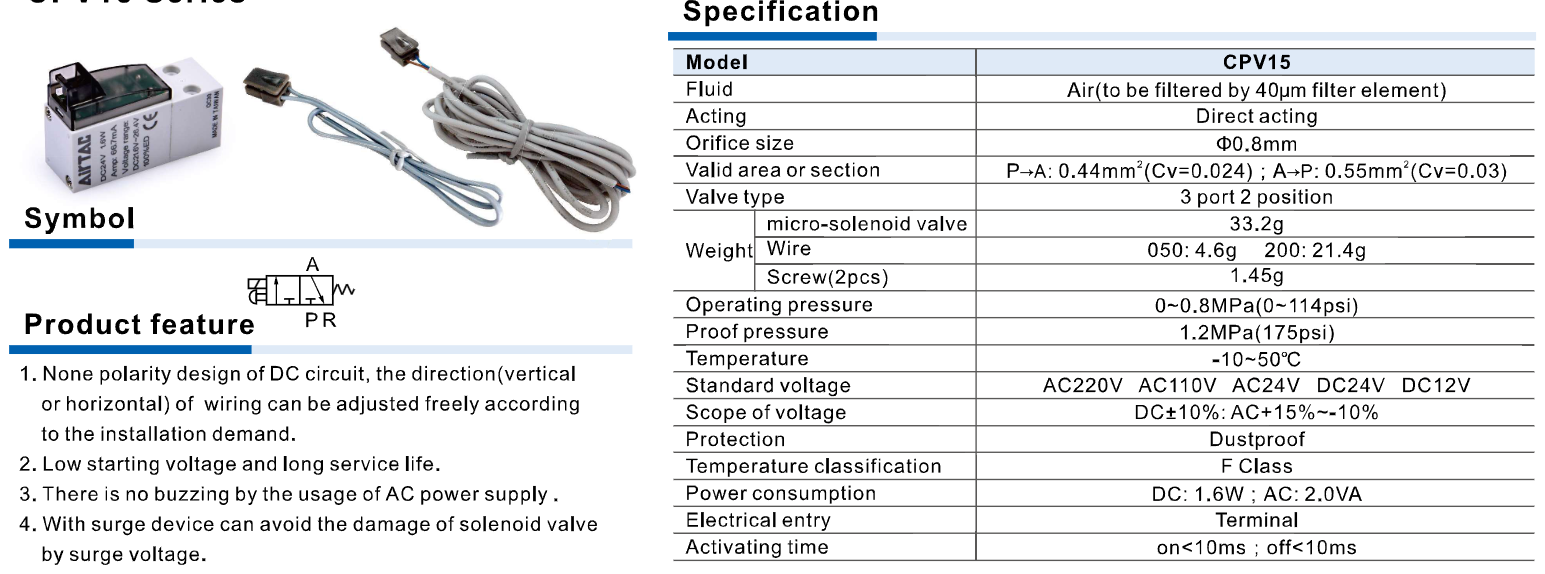

Specification CPV15 Micro-solenoid:
CPV15 Series Micro Solenoid Valve Product Description
The CPV15 Series is a compact micro solenoid valve designed for pneumatic control systems where installation space is limited. It features a 3-port 2-position (3/2 way) direct acting design, enabling fast and precise air flow control. With its compact structure, low power consumption, and high reliability, the CPV15 Series is widely used in industrial automation equipment, robotics, and precision pneumatic control systems.
Key Features of CPV15 Series
Non-polarity DC circuit design allows flexible wiring direction according to installation requirements.
Low starting voltage helps reduce power consumption and extend the valve’s service life.
Quiet operation with no buzzing noise when using AC power supply.
Built-in surge protection device protects the solenoid coil from voltage spikes.
Compact micro design suitable for equipment with limited installation space.
Fast switching performance with response time less than 10ms.
Dustproof structure ensures stable operation in industrial environments.
Technical Specifications
Model: CPV15 Series
Valve type: 3-port 2-position micro solenoid valve
Acting type: Direct Acting
Fluid: Air (filtered by 40µm filter element)
Orifice size: Φ0.8 mm
Operating pressure: 0 – 0.8 MPa (0 – 114 psi)
Proof pressure: 1.2 MPa
Operating temperature: -10 to 50°C
Standard voltage: AC220V, AC110V, AC24V, DC24V, DC12V
Voltage tolerance: DC ±10% ; AC +15% ~ -10%
Power consumption: DC 1.6W ; AC 2.0VA
Insulation class: Class F
Response time: ON <10ms ; OFF <10ms
Electrical connection: Terminal
Optional wire length: 0.5m or 2.0m
Advantages
Compact and space-saving design for modern automation equipment.
Fast and accurate switching performance.
High durability and stable operation in industrial environments.
Low power consumption, helping reduce operating costs.
Easy installation and maintenance in pneumatic systems.
Applications
Industrial automation systems.
Robotics and automated machinery.
Packaging machines and industrial printing equipment.
Medical devices and precision pneumatic control systems.
Compact pneumatic control equipment and electro-mechanical systems.
