CPV15S Series Solenoid Valve Manifold – Compact Integrated Pneumatic Valve System

SpecificationCPV15S Series Manifold:

CPV15S Series Product Description – Solenoid Valve Manifold

The CPV15S Series is a compact integrated pneumatic solenoid valve manifold designed to centralize air supply, exhaust, and electrical connections in a single unit. This integrated design helps reduce installation space, simplify pneumatic piping, and improve maintenance efficiency. The system is widely used in industrial automation, production lines, packaging machinery, assembly equipment, and pneumatic control systems.

Features and Product Characteristics

The CPV15S manifold adopts a modular design that allows multiple solenoid valves to be installed on a single base, creating a clean and organized pneumatic control system.

One of the key highlights is the centralized air supply, exhaust, and electrical connection design. With a single air inlet and a 25-pin D-Sub electrical connector, the system significantly reduces wiring complexity and pneumatic tubing.

The manifold supports flexible expansion from 2 to 20 stations, enabling users to configure the number of valves based on application requirements. Additional stations can be added easily without redesigning the entire system.

The system supports multiple thread standards including PT, G, and NPT, allowing compatibility with various pneumatic installations. The A ports are designed for push-in fittings of 4 mm or 5/32 inch, ensuring fast and secure tube connections.

A blank plate kit is also available to seal unused stations on the manifold. This allows the system to operate normally even when not all stations are installed.

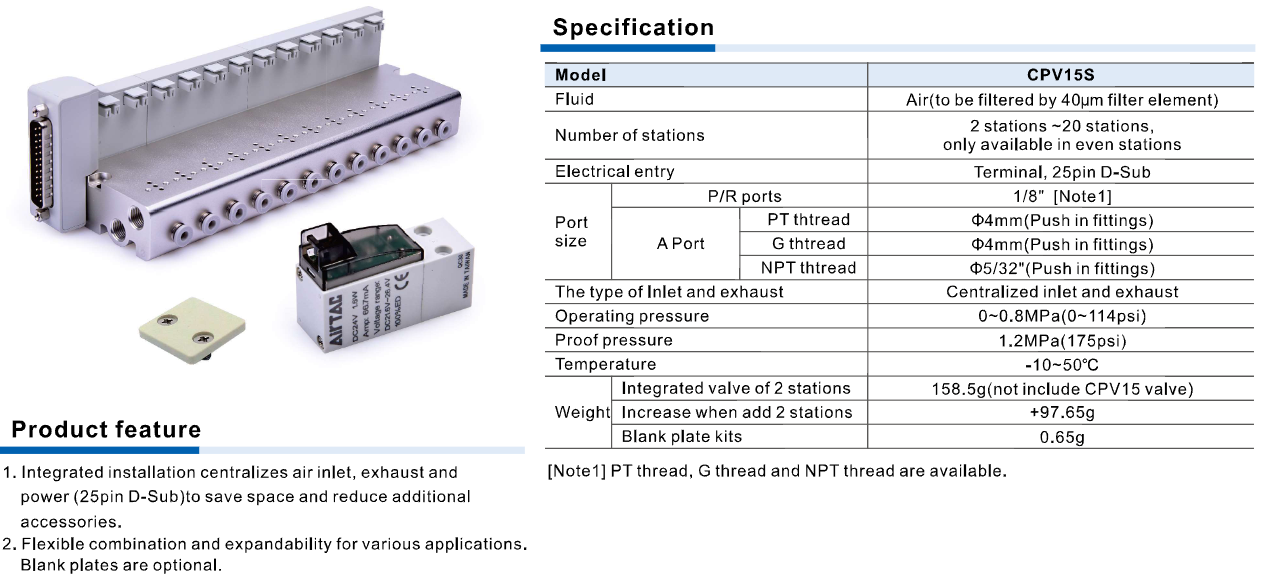

Technical Specifications

Model: CPV15S Series

Fluid: Compressed air filtered by a 40 µm filter element

Number of stations: 2 to 20 stations (even numbers only)

Electrical connection: Terminal, 25-pin D-Sub

Port size:

P/R port: 1/8 inch

A port:

PT thread: Ø4 mm push-in fittings

G thread: Ø4 mm push-in fittings

NPT thread: Ø5/32 inch push-in fittings

Inlet and exhaust type: Centralized inlet and exhaust

Operating pressure: 0 – 0.8 MPa (0 – 114 psi)

Proof pressure: 1.2 MPa (175 psi)

Operating temperature: -10°C to 50°C

Weight:

Integrated 2-station manifold: 158.5 g (excluding CPV15 valve)

Additional weight per 2 stations: +97.65 g

Blank plate kit: 0.65 g

Product Advantages

The CPV15S Series provides several advantages for pneumatic systems.

Its compact manifold design saves installation space by integrating multiple valves into a single platform. This is especially beneficial for machines with limited space.

The product also reduces pneumatic tubing and installation costs, making the system cleaner and easier to manage.

Thanks to the modular structure, the system offers excellent scalability and flexible configuration, suitable for different machine sizes and automation requirements.

The D-Sub electrical connection also enables quick wiring, stable operation, and easy maintenance when replacing or servicing valves.

Applications

The CPV15S solenoid valve manifold is widely used in industries that require precise pneumatic control.

Typical applications include industrial automation systems, packaging machines, labeling machines, automated assembly equipment, and robotic production lines.

It is also commonly applied in machine manufacturing, pneumatic control systems, cylinder control units, and multi-channel pneumatic distribution systems.
