Airtac 7V Series Pneumatic Solenoid Valve 5/2 Way – 5/3 Way Industrial Air Control Valve

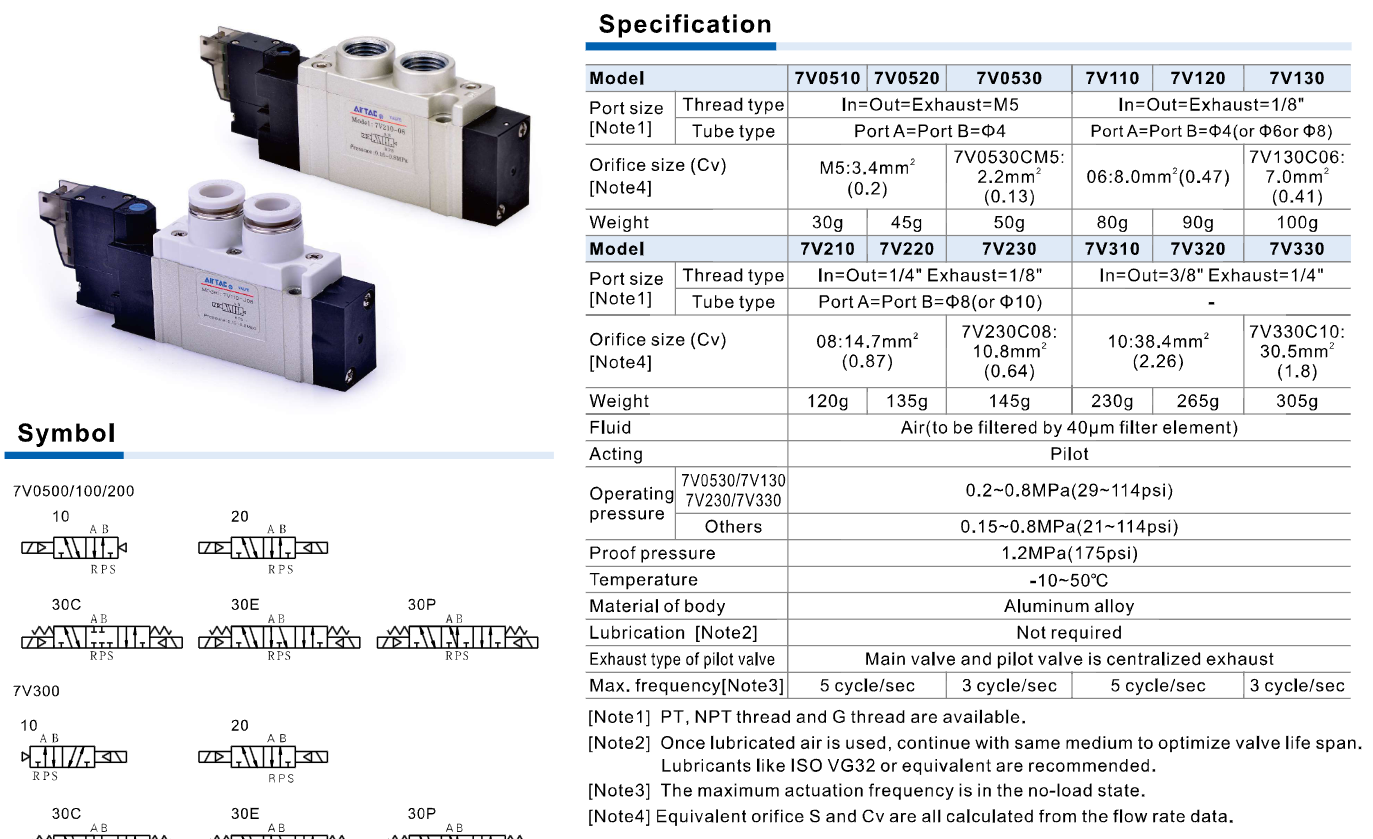

Specification Airtac 7V:

Product Description – Airtac 7V Series Pneumatic Solenoid Valve (5/2 Way – 5/3 Way)

The Airtac 7V Series pneumatic solenoid valve is designed to control airflow direction in industrial pneumatic systems. The valve operates through electrical signals to switch and control compressed air flow, making it ideal for automation equipment and pneumatic actuator systems.

This series supports 5/2 way and 5/3 way configurations, allowing precise control of pneumatic cylinders and other automation components. With a robust design and high-quality materials, the valve ensures stable operation, fast response, and long service life in industrial environments.

The valve body is manufactured using die-cast aluminum alloy, providing excellent durability, corrosion resistance, and improved airflow capacity. Its compact structure and flexible installation options make it suitable for a wide range of pneumatic control systems.

Key Features

• Internal exhaust structure that collects pilot airflow and releases it efficiently through exhaust ports, improving valve response and performance.

• Flexible electrical terminal design allowing both horizontal and vertical wiring installation.

• Durable die-cast aluminum body with optimized cavity structure to enhance airflow and valve efficiency.

• Multiple port connection options, including threaded and tube connector types for easy system integration.

• Various series options, including 7V0500, 7V100, 7V200, and 7V300 to meet different pneumatic system requirements.

Technical Specifications

• Common models: 7V0510, 7V0520, 7V0530, 7V1110, 7V1120, 7V1130, 7V2110, 7V2120, 7V2130, 7V3110, 7V3120, 7V3130

• Valve type: 5/2 way and 5/3 way solenoid valve

• Working medium: Compressed air (filtered to 40µm)

• Operating pressure: 0.15 – 0.8 MPa

• Proof pressure: 1.2 MPa

• Operating temperature: -10°C to 50°C

• Body material: Aluminum alloy

• Coil voltage options: AC220V, AC110V, DC24V, DC12V

• Power consumption: 1.1VA (AC) / 0.7W (DC)

• Response time: ≤ 0.05 seconds

• Max operating frequency: 3 – 5 cycles per second

Advantages

• High durability thanks to aluminum alloy valve body.

• Low power consumption for efficient operation.

• Fast and stable switching performance.

• Flexible installation and multiple port configurations.

• Low maintenance and long service life.

Applications

The Airtac 7V Series solenoid valve is widely used in various industrial pneumatic and automation systems such as:

• Industrial automation machinery

• Pneumatic cylinder control systems

• Packaging, filling, printing, and processing machines

• Robotics and automated production lines

• General pneumatic control systems in factories
