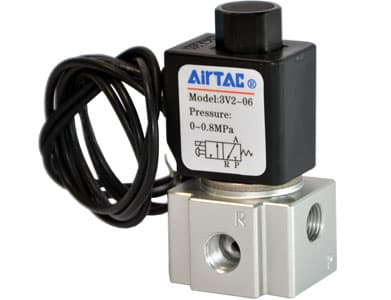

3V2 Series Pneumatic Solenoid Valve 3/2 Way, Direct Acting, 1/8”–1/4”, AC/DC Voltage, Aluminum Body

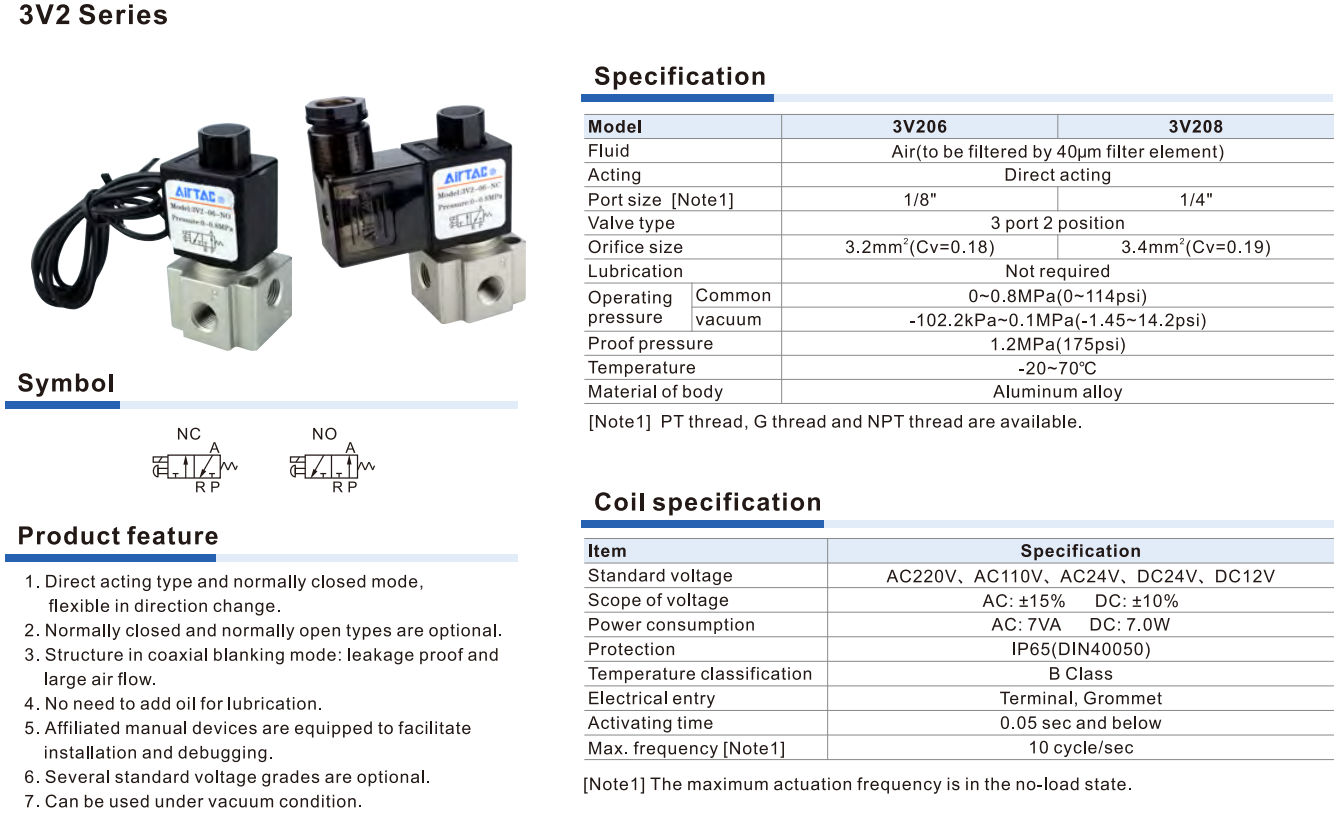

Specification:

This valve operates with filtered compressed air (40µm) and features a 3-port, 2-position design, available in normally closed (NC) or normally open (NO) configurations. The 3V2 Series includes 1/8 inch (3V206) and 1/4 inch (3V208) port sizes, with a durable aluminum alloy body ensuring long service life and corrosion resistance.

The valve operates within a pressure range of 0–0.8 MPa, supports vacuum applications, and requires no lubrication, reducing maintenance costs. It is compatible with multiple voltage options, including AC220V, AC110V, AC24V, DC24V, and DC12V, making it suitable for various industrial environments.

For easy commissioning and maintenance, the 3V2 Series is equipped with a manual override function, allowing quick testing and troubleshooting during operation.

🔹 Key Features

1. 3/2 way pneumatic solenoid valve, direct acting
2. Available in NC and NO configurations
3. 1/8” and 1/4” port sizes
4. No lubrication required, low maintenance
5. Wide range of AC/DC voltage options
6. Suitable for vacuum and compressed air systems
7. Robust aluminum body with high flow capacity

🔹 Applications

1. Industrial pneumatic systems
2. Packaging and labeling machines
3. Automation equipment and production lines
4. Pneumatic cylinder control
