/ 7V Series Pneumatic Solenoid Valve Manifold 7V0500M 7V100M 7V200M 7V300M – Pneumatic Valve Base
7V Series Pneumatic Solenoid Valve Manifold 7V0500M 7V100M 7V200M 7V300M – Pneumatic Valve Base
The 7V Series pneumatic solenoid valve manifold (7V0500M, 7V100M, 7V200M, 7V300M) is a manifold base designed to integrate multiple directional control valves into a single compact unit. It helps reduce installation space, simplify pneumatic piping, and improve maintenance efficiency. Compatible with 7V0500, 7V100, 7V200, and 7V300 series valves, this manifold allows multiple valve stations on one base and is widely used in industrial automation systems, pneumatic machinery, and production lines.
- 7V0500M
- 7V100M
- 7V200M
- 7V300M
- 7V0500M-1F
- 7V0500M-2F
- 7V0500M-3F
- 7V0500M-4F
- 7V0500M-5F
- 7V0500M-6F
- 7V0500M-8F
- 7V0500M-10F
- 7V0500M-12F
- 7V0500M-16F
- 7V100M-1F
- 7V100M-2F
- 7V100M-3F
- 7V100M-4F
- 7V100M-5F
- 7V100M-6F
- 7V100M-8F
- 7V100M-10F
- 7V100M-12F
- 7V100M-16F
- 7V100M-20F
- 7V200M-1F
- 7V200M-2F
- 7V200M-3F
- 7V200M-4F
- 7V200M-5F
- 7V200M-6F
- 7V200M-8F
- 7V200M-10F
- 7V200M-12F
- 7V200M-16F
- 7V200M-20F
- 7V300M-1F
- 7V300M-2F
- 7V300M-3F
- 7V300M-4F
- 7V300M-5F
- 7V300M-6F
- 7V300M-8F
- 7V300M-10F
- 7V300M-12F
- 7V300M-16F
- 7V300M-20F
- P-7V0500M-R2
- P-7V100M-R2
- P-7V200M-R2
- P-7V300M-R2
- pneumatic solenoid valve manifold 7V series
- 7V valve manifold base
- pneumatic valve manifold block
- industrial pneumatic manifold
- solenoid valve manifold base
Design file download links:
PDF fileOther fileOther fileDescription

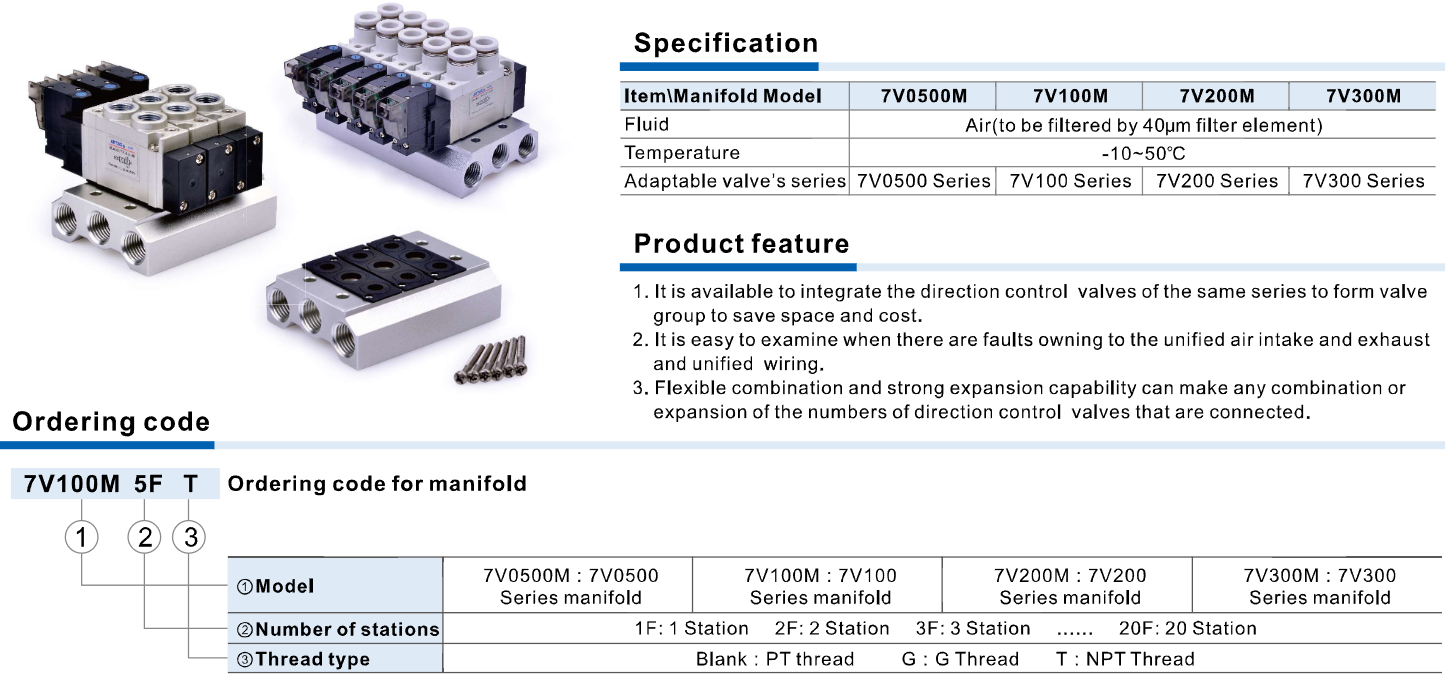

Specification 7V Manifold:
Product Overview
The 7V Series solenoid valve manifold (7V0500M, 7V100M, 7V200M, 7V300M) is a pneumatic manifold base designed to integrate multiple directional control valves into a single compact unit. It distributes compressed air from a common supply to several solenoid valves, improving the efficiency of pneumatic systems.
With its integrated manifold structure, the system helps reduce pneumatic piping, save installation space, and simplify maintenance, making it widely used in industrial automation systems and pneumatic control equipment.
Key Features
- Multi-station manifold design allowing multiple valves to be installed in a single block.
- Compatible with 7V0500, 7V100, 7V200 and 7V300 series solenoid valves.
- Centralized air supply and exhaust ports reduce pneumatic piping.
- Clean and organized installation with unified pneumatic connections.
- Flexible configuration allows expansion of valve stations as required.
- Strong and durable structure suitable for industrial environments.
- Installation kit includes seals and mounting screws for reliable sealing.
Technical Specifications
- Manifold model: 7V0500M / 7V100M / 7V200M / 7V300M
- Working medium: Compressed air (filtered with 40µm filter)
- Operating temperature: -10°C to 50°C
- Compatible valve series:
- 7V0500 Series
- 7V100 Series
- 7V200 Series
- 7V300 Series
- Number of stations: 1 – 20 stations depending on configuration
- Thread type: PT, G, or NPT thread
- Kit includes: manifold base, seals, and mounting screws
Advantages
- Space-saving installation by integrating multiple valves into one manifold.
- Reduces pneumatic piping complexity and installation cost.
- Modular design allows easy expansion and system upgrades.
- Convenient inspection and maintenance.
- Provides stable and efficient pneumatic control systems.
Applications
The 7V Series pneumatic valve manifold is widely used in:
- Factory automation systems
- Packaging and labeling machines
- Automatic production and assembly lines
- CNC machinery and industrial equipment
- Pneumatic cylinder control systems
- Industrial robots and automation equipment
