3V Series Pneumatic Valve Manifold (3V100M / 3V200M / 3V300M) – Solenoid Valve Manifold Base
The 3V Series Pneumatic Manifold is designed to integrate multiple 3V100, 3V200, and 3V300 solenoid valves into a single valve assembly for efficient pneumatic control. This manifold system helps save installation space, reduce piping and wiring costs, and simplifies system inspection and maintenance. With flexible station configurations and thread options PT, G, or NPT, it is ideal for industrial automation systems, pneumatic machinery, and manufacturing production lines requiring centralized valve control.
- 3V100M
- 3V200M
- 3V300M
- 3V100M-1F
- 3V100M-2F
- 3V100M-3F
- 3V100M-4F
- 3V100M-5F
- 3V100M-6F
- 3V100M-8F
- 3V100M-10F
- 3V100M-12F
- 3V100M-16F
- 3V200M-1F
- 3V200M-2F
- 3V200M-3F
- 3V200M-4F
- 3V200M-5F
- 3V200M-6F
- 3V200M-8F
- 3V200M-10F
- 3V200M-12F
- 3V200M-16F
- 3V300M-1F
- 3V300M-2F
- 3V300M-3F
- 3V300M-4F
- 3V300M-5F
- 3V300M-6F
- 3V300M-8F
- 3V300M-10F
- 3V300M-12F
- 3V300M-16F
- P-3V100M-R2
- P-3V200M-R2
- P-3V300M-R2
- pneumatic valve manifold
- 3V solenoid valve manifold base
- pneumatic solenoid valve manifold block
- air valve manifold for automation
- multi station pneumatic manifold
Design file download links:
Other fileOther filePDF fileDescription

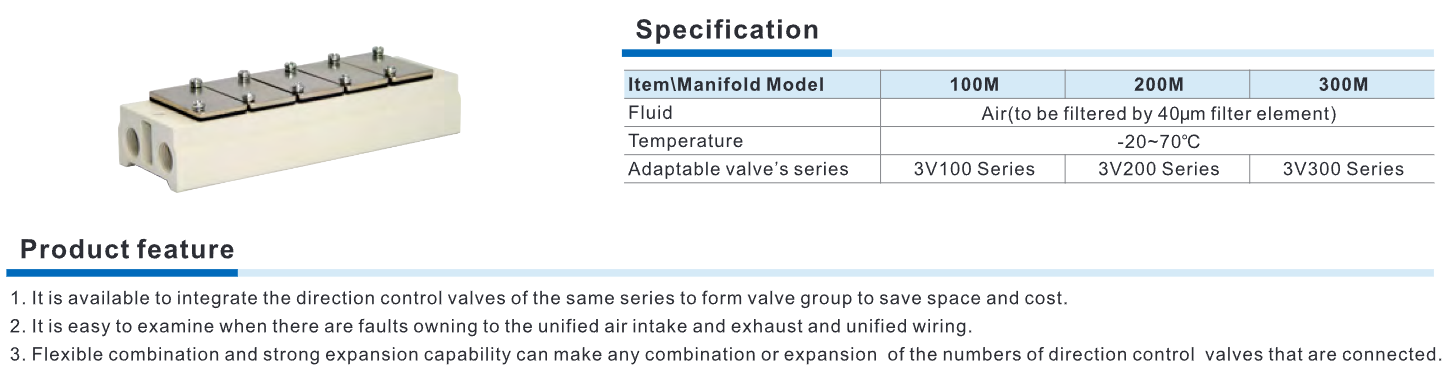

Specification 3V-manifold:
3V Series Pneumatic Valve Manifold Product Description
The 3V Series Pneumatic Manifold is designed to mount multiple solenoid valves into a single integrated pneumatic control unit. It allows valves from 3V100, 3V200, and 3V300 series to be installed together on a common manifold base, simplifying the pneumatic piping system and saving installation space. With its modular structure and flexible expansion capability, the 3V manifold is widely used in industrial automation systems, production lines, and pneumatic control equipment.
Key Features of the 3V Manifold
Designed to integrate multiple directional control valves of the same series into one valve group, reducing installation space and cost.
The shared air supply and exhaust channels make system inspection and maintenance easier.
Supports multiple valve stations, allowing flexible configuration based on system requirements.
Modular structure with strong expansion capability, enabling easy addition or removal of valves.
Durable construction suitable for continuous operation in industrial environments.
Technical Specifications
Model: 3V100M, 3V200M, 3V300M
Product type: Pneumatic solenoid valve manifold base
Fluid: Air (filtered by a 40µm filter element)
Operating temperature: -20°C to 70°C
Adaptable valve series:
3V100 Series
3V200 Series
3V300 Series
Number of stations: 1 to 16 stations
Thread type: PT, G, or NPT
Accessories: sealing gasket, screws, and blank plate kit.
Advantages
Helps reduce pneumatic tubing and wiring complexity.
Allows easy expansion of valve quantity in the system.
Provides simplified installation and maintenance.
Improves system organization and appearance.
Reliable and durable for long-term industrial use.
Applications
Industrial automation systems.
Manufacturing and assembly production lines.
Packaging machines and food processing equipment.
Robotics and pneumatic control systems.
Any pneumatic system requiring centralized control of multiple solenoid valves.
