/ 4V / 5V Series Solenoid Valve Manifold 100M 200M 300M 400M – Pneumatic Valve Base
4V / 5V Series Solenoid Valve Manifold 100M 200M 300M 400M – Pneumatic Valve Base
The 4V/5V Series solenoid valve manifold (100M, 200M, 300M, 400M) is a pneumatic valve base designed to integrate multiple directional control valves into a single compact unit. It helps save installation space, simplify air piping, and improve system maintenance efficiency. Compatible with 4V100, 4V200, 4V300, 4V400 and 5V100, 5V200, 5V300, 5V400 series valves, this manifold is widely used in industrial automation systems, pneumatic machinery, and production lines.
- 100M
- 200M
- 300M
- 400M
- 100M-1F
- 100M-2F
- 100M-3F
- 100M-4F
- 100M-5F
- 100M-6F
- 100M-8F
- 100M-10F
- 100M-12F
- 100M-16F
- 200M-1F
- 200M-2F
- 200M-3F
- 200M-4F
- 200M-5F
- 200M-6F
- 200M-8F
- 200M-10F
- 200M-12F
- 200M-16F
- 300M-1F
- 300M-2F
- 300M-3F
- 300M-4F
- 300M-5F
- 300M-6F
- 300M-8F
- 300M-10F
- 300M-12F
- 400M-1F
- 400M-2F
- 400M-3F
- 400M-4F
- 400M-5F
- 400M-6F
- 400M-8F
- P-100M-R2
- P-200M-R2
- P-300M-R2
- P-400M-R2
- pneumatic solenoid valve manifold
- 4V 5V series valve manifold base
- pneumatic valve manifold block
- industrial pneumatic manifold
- solenoid valve base manifold
Design file download links:
Other fileOther filePDF fileDescription

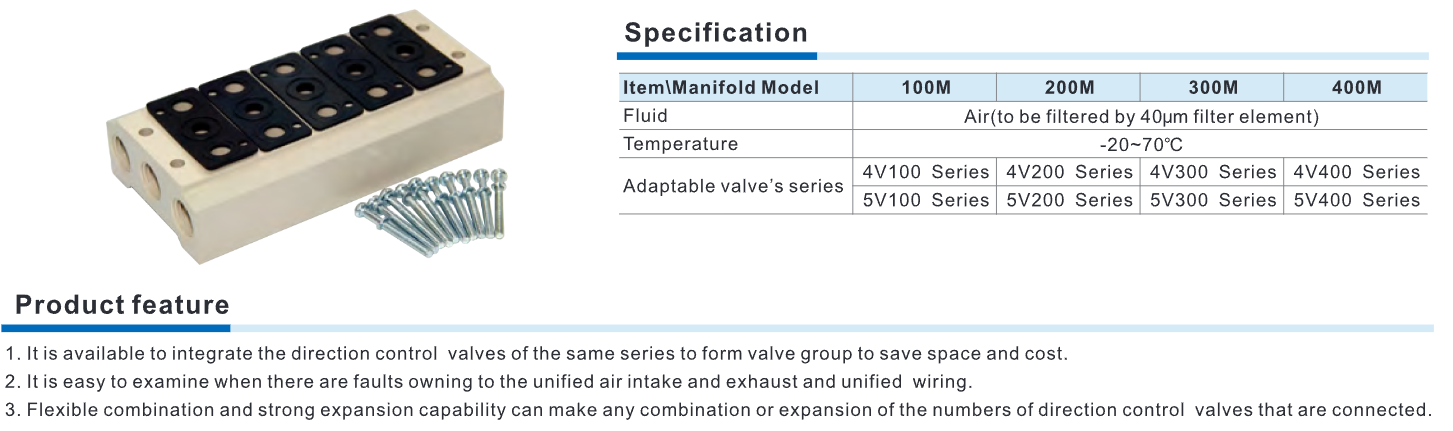

Specification 4V/5V:
Product Overview
The 4V/5V Series solenoid valve manifold (100M, 200M, 300M, 400M) is a pneumatic manifold base designed to integrate multiple directional control valves into a single compact unit. This manifold distributes compressed air from a common inlet to multiple solenoid valves, improving system efficiency.
With its integrated structure, the manifold helps reduce pneumatic piping, save installation space, and simplify maintenance. It is widely used in industrial automation systems and pneumatic machinery using 4V and 5V series solenoid valves.
Key Features
- Multi-station manifold design allowing multiple solenoid valves to be installed in one block.
- Compatible with 4V100, 4V200, 4V300, 4V400 and 5V100, 5V200, 5V300, 5V400 valve series.
- Centralized air supply and exhaust ports reduce the number of pneumatic pipes.
- Easy installation, removal, and maintenance.
- Flexible configuration allows expansion of valve stations according to system requirements.
- Strong and durable structure suitable for industrial environments.
- Provides clean and organized pneumatic connections for better system performance.
Technical Specifications
- Manifold model: 100M / 200M / 300M / 400M
- Working medium: Compressed air (filtered with 40µm filter)
- Operating temperature: -20°C to 70°C
- Compatible valves:
- 4V100 / 5V100 Series
- 4V200 / 5V200 Series
- 4V300 / 5V300 Series
- 4V400 / 5V400 Series
- Number of valve stations:
- 100M / 200M: up to 16 stations
- 300M: up to 12 stations
- 400M: up to 8 stations
- Thread type: PT, G, or NPT
- Kit includes: manifold base, seals, and mounting screws
Advantages
- Space-saving design by integrating multiple valves into one manifold block.
- Reduces pneumatic piping complexity and installation cost.
- Modular structure allows easy expansion and system upgrades.
- Convenient inspection and maintenance.
- Provides stable and organized pneumatic systems.
Applications
The 4V / 5V Series pneumatic manifold is widely used in:
- Factory automation systems
- Packaging and labeling machines
- Automatic production and assembly lines
- CNC machines and industrial equipment
- Pneumatic cylinder control systems
- Industrial robots and automation equipment
