Onpin Air Screwdriver OP-606DQ / OP-606DF - Screw Capacity 8mm, Max Torque 400Nm, 9000rpm

Specification OP-606DQ & OP-606DF:

The Onpin OP-606DQ / OP-606DF Air Screwdriver is an industrial-grade pneumatic fastening tool engineered to operate on compressed air power. It delivers high rotational torque to secure and loosen threaded fasteners rapidly and precisely via a pneumatic drive mechanism. This power tool serves as an essential solution for boosting assembly efficiency and ensuring torque consistency in high-volume production lines.

Key Features of Onpin OP-606DQ / OP-606DF

1. Quick Reversing Control: Equipped with a quick forward and backward trigger mechanism for seamless direction shifting.
2. High Torque Output: Delivers a free speed of 9000 rpm and a maximum torque of 400 Nm, ideal for demanding industrial fastening tasks.
3. Compact & Lightweight: Weighs only 1.47 kg with an overall length of 140 mm, minimizing operator fatigue during prolonged use.
4. Industrial Durability: Built with a rugged housing designed to withstand continuous operation in harsh manufacturing environments.
5. Versatile Bit Options: Available in Q type and F type bit chuck configurations to accommodate standard industrial bits.

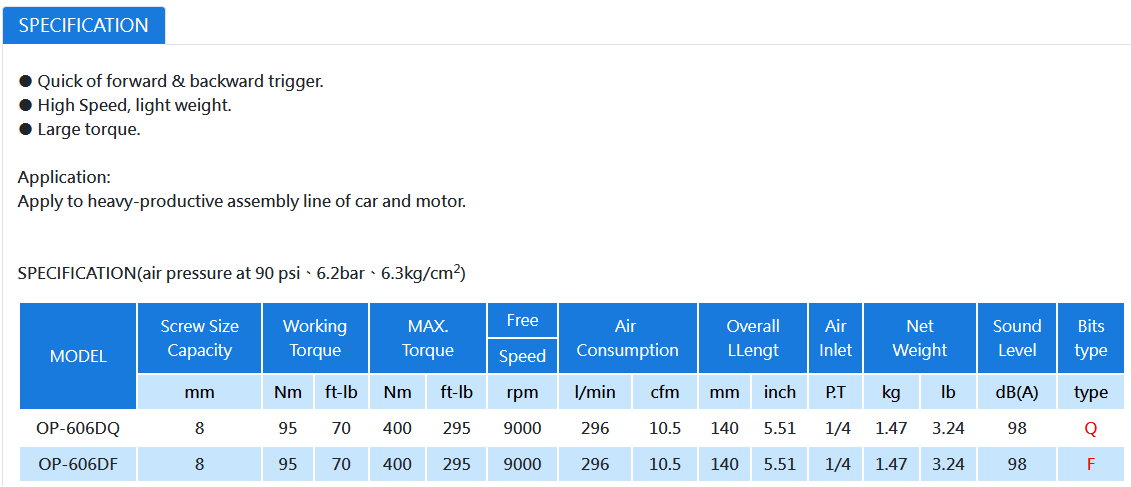

Technical Specifications of Onpin OP-606DQ / OP-606DF

1. Screw Size Capacity: $8\text{ mm}$
2. Working Torque: $95\text{ Nm}$ ($70\text{ ft-lb}$)
3. MAX Torque: $400\text{ Nm}$ ($295\text{ ft-lb}$)
4. Free Speed: $9000\text{ rpm}$
5. Air Consumption: $296\text{ l/min}$ ($10.5\text{ cfm}$)
6. Overall Length: $140\text{ mm}$ ($5.51\text{ inches}$)
7. Air Inlet: $1/4\text{ P.T}$
8. Net Weight: $1.47\text{ kg}$ ($3.24\text{ lbs}$)
9. Sound Level: $98\text{ dB(A)}$
10. Operating Air Pressure: $90\text{ psi}$ ($6.2\text{ bar}$ / $6.3\text{ kg/cm}^2$)
11. Bits Type: Q / F

Industrial Applications of Onpin OP-606DQ / OP-606DF

1. Automotive & Motorcycle Assembly: Deployed in heavy-productive assembly lines for chassis, engine component, and sub-assembly fastening.
2. General Mechanical Engineering: Applied in machinery manufacturing workshops and industrial equipment maintenance.
3. Industrial Hardware & Appliance Manufacturing: Suited for structural screwing tasks requiring consistent high-speed operation.
