Onpin Air Screwdriver OP-5C1419 - Screw Capacity 5mm, Max Torque 3Nm, 1900rpm
The Onpin OP-5C1419 Air Screwdriver is an industrial-grade precision fastening tool engineered to release or fasten high-precise screws in industries such as toy, electric, carpentry, and plastic. It features a free speed of 1900 rpm, maximum torque of 3 Nm, a screw capacity of 5 mm, and comes equipped with a torque regulator and an automatic clutch mechanism. Weighing 1.01 kg with a sound level of 85 dB(A) and a built-in hook for spring balancers, it delivers safe, efficient, and ergonomic operation at a standard air pressure of 90 psi (6.2 bar).
- OP-5C1419
- OP-6C2529
- onpin air screwdriver
- 5mm air screw driver
- 3nm pneumatic screwdriver
- automatic clutch air screwdriver
- industrial adjustable torque air screwdriver
Design file download links:
PDF fileDescription

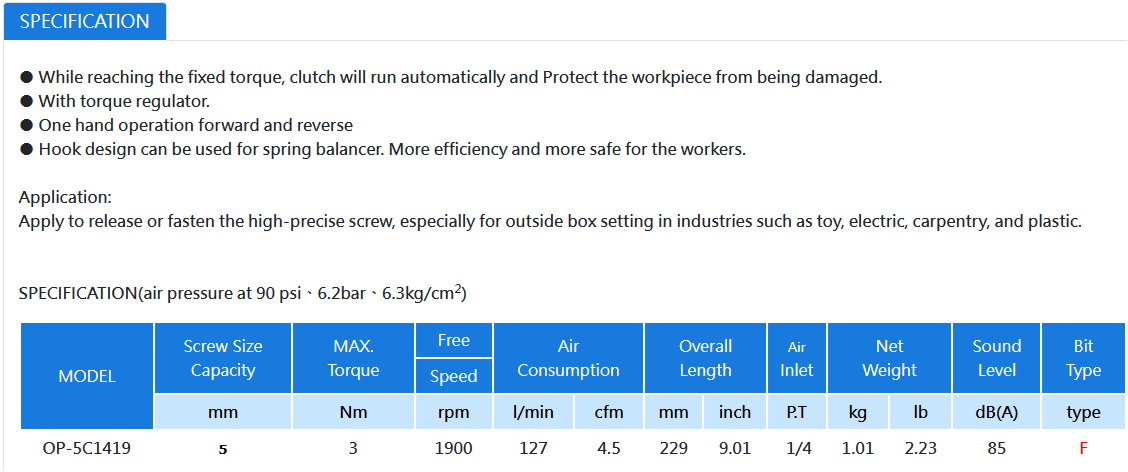

Specification OP-5C1419
The Onpin OP-5C1419 Air Screwdriver is an industrial pneumatic fastening tool designed to convert compressed air into rotational torque for high-precision screw driving and removal. Featuring an automatic shut-off clutch mechanism, the tool instantly stops rotation once the target torque is reached, ensuring process repeatability and protecting workpiece surfaces.
Key Features of Onpin OP-5C1419
- Automatic Shut-Off Clutch System halts operation immediately upon reaching set torque to prevent thread stripping or over-tightening.
- Built-in Torque Regulator allows fast, precise adjustment of tightening torque for diverse assembly demands.
- Ergonomic One-Hand Forward & Reverse Lever enables seamless direction switching to increase operation speed.
- Integrated Spring Balancer Hook facilitates overhead suspension on production lines, reducing operator fatigue.
- Quiet performance with a low noise level of 85 dB(A), meeting workplace safety standards.
Technical Specifications of Onpin OP-5C1419
- Screw Size Capacity: 5 mm
- Maximum Torque: 3 Nm
- Free Speed: 1900 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 229 mm (9.01 inch)
- Air Inlet Size: 1/4 P.T
- Net Weight: 1.01 kg (2.23 lb)
- Sound Level: 85 dB(A)
- Bit Type: Type F
- Standard Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-5C1419
- Electronics and electrical component assembly lines.
- Industrial toy manufacturing.
- Carpentry, woodworking, and furniture production.
- Plastic product fabrication and component joining.
