Onpin Air Screwdriver OP-5C1218 - Screw Capacity 4mm, Max Torque 2.5Nm, 1800rpm
The Onpin OP-5C1218 Air Screwdriver is an industrial-grade precision fastening tool engineered to release or fasten high-precise screws in industries such as toy, electric, carpentry, and plastic. It features a free speed of 1800 rpm, maximum torque of 2.5 Nm, a screw capacity of 4 mm, and comes equipped with a torque regulator and an automatic clutch mechanism. Weighing only 0.76 kg with a low noise level of 80 dB(A) and a built-in hook for spring balancers, it delivers safe, efficient, and ergonomic operation at standard air pressure of 90 psi (6.2 bar).
- OP-5C1218
- OP-6C1218
- onpin air screwdriver
- 4mm air screw driver
- 2.5nm pneumatic screwdriver
- automatic clutch air screwdriver
- industrial adjustable torque air screwdriver
Design file download links:
PDF fileDescription

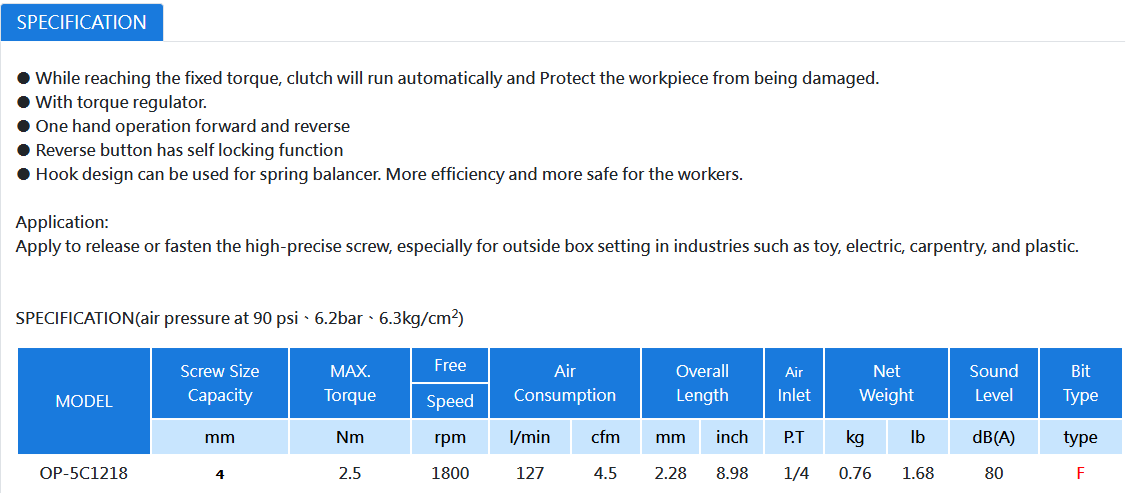

Specification OP-5C1218:
The Onpin OP-5C1218 Air Screwdriver is an industrial pneumatic fastening tool featuring an adjustable torque clutch system. It operates by converting compressed air pressure into high-rotational torque to precisely fasten or release threaded screws. This tool ensures accurate torque control, protects workpieces from damage, and greatly boosts assembly line productivity.
Key Features of Onpin OP-5C1218
- Automatic Clutch System: The clutch runs automatically upon reaching the preset torque, protecting workpieces from over-tightening and damage.
- Integrated Torque Regulator: Features a built-in torque regulator for precise torque adjustment according to assembly requirements.
- One-Hand Forward/Reverse Operation: Designed for effortless one-handed direction switching, featuring a reverse button with a self-locking function.
- Ergonomic Hook Design: Built-in hook design compatible with spring balancers, improving workplace safety and reducing operator fatigue.
- Ultra-Light & Quiet: Weighs only 0.76 kg and operates at a low sound level of 80 dB(A) for comfortable long-term use.
Technical Specifications of Onpin OP-5C1218
- Screw Size Capacity: 4 mm
- MAX Torque: 2.5 Nm
- Free Speed: 1800 rpm
- Air Consumption: 127 l/min (4.5 cfm)
- Overall Length: 228 mm (8.98 inches)
- Air Inlet Size: 1/4 P.T
- Net Weight: 0.76 kg (1.68 lbs)
- Sound Level: 80 dB(A)
- Bit Type: Type F
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-5C1218
- Electrical & Electronic Assembly: Precision fastening for circuit boards, electrical components, and delicate housing enclosures.
- Toy & Plastic Industries: Ideal for outside box setting and assembling plastic products without damaging workpieces.
- Carpentry & Woodworking: Suitable for high-precision screw driving in furniture manufacturing and fine woodworking applications
