/ Onpin Air Screwdriver OP-906DAQ / OP-906DAF - 8mm Capacity, Max Torque 400Nm, 10000RPM
Onpin Air Screwdriver OP-906DAQ / OP-906DAF - 8mm Capacity, Max Torque 400Nm, 10000RPM
The Onpin OP-906DAQ / OP-906DAF Air Screwdriver is designed for heavy-productive assembly lines in car and motor manufacturing. Powered by 90 psi (6.2 bar) air pressure, it handles 8mm screw capacity, delivering a high free speed of 10,000 RPM, working torque of 95 Nm, and maximum torque of 400 Nm. It features a 3-stage forward power knob, Twin Ring Type mechanism, alloy steel motor set, and an oil-in-the-front cap design for extended performance life. Featuring a compact 144mm length and 1.6 kg weight, it incorporates a built-in comfort grip and handle exhaust to prevent oil stains on workpieces.
- OP-906DAQ
- OP-906DAF
- 906DAQ
- 01-103-08
- 02-200-02
- 02-201-01
- 02-201-09
- 02-201-17
- 02-204-02
- 03-700-04
- 03-700-07
- 04-704-05
- 04-704-06
- 06-700-08
- 06-701-04
- 08-704-02
- 10-701-04
- 12-701-07
- 13-700-10
- 13-701-11
- 13-702-02
- 15-702-05
- 15-702-17
- 17-305-01
- 18-605-01
- 24-302-02
- 25-704-02
- 26-302-01
- 26-302-04
- 30-307-06
- 31-703-01
- 35-705-07
- 36-704-01
- 37-704-01
- 38-704-03
- 41-704-06
- 42-704-01
- 51-503-09
- 51-701-03
- 52-301-02
- 52-700-01
- 52-700-04
- 52-701-07
- 52-701-26
- 74-707-36
- 75-705-06
- 77-607-02
- 79-605-01
- air screwdriver
- heavy duty pneumatic screwdriver
- twin ring air screwdriver
- onpin air tools
- air screwdriver spare parts
Design file download links:
PDF fileDescription
Specification
The Onpin Air Screwdriver OP-906DAQ / OP-906DAF is a heavy-duty pneumatic fastening tool designed for industrial assembly and disassembly operations. It converts compressed air power into high-speed rotational force via a twin ring mechanism, delivering a maximum torque of up to 400 Nm for enhanced assembly efficiency. Manufactured by Hong Bing Pneumatic Industry Co., Ltd. (Taiwan), this tool complies strictly with European quality standards CE (EN ISO 11148-6:2012).
Key Features of Onpin OP-906DAQ / OP-906DAF
- Adjustable Power: Equipped with a forward knob featuring 3 stages of torque power for precise torque control.
- Heavy-Duty Impact Mechanism: Features a Twin Ring Type mechanism providing high stability and strong impact force under heavy loads.
- Durable Motor: Built with an alloy steel material motor set for high wear resistance.
- Extended Service Life: Designed with an oil-in-the-front cap to ensure proper lubrication and prolonged operating life.
- Ergonomic & Clean Operation: Built with an integrated Comfort Grip to reduce operator fatigue and handle exhaust to prevent oil stains on workpieces.
- Versatile Bit Options: Available in OP-906DAQ (Quick change Bit Type Q) and OP-906DAF (Bit Type F) models.

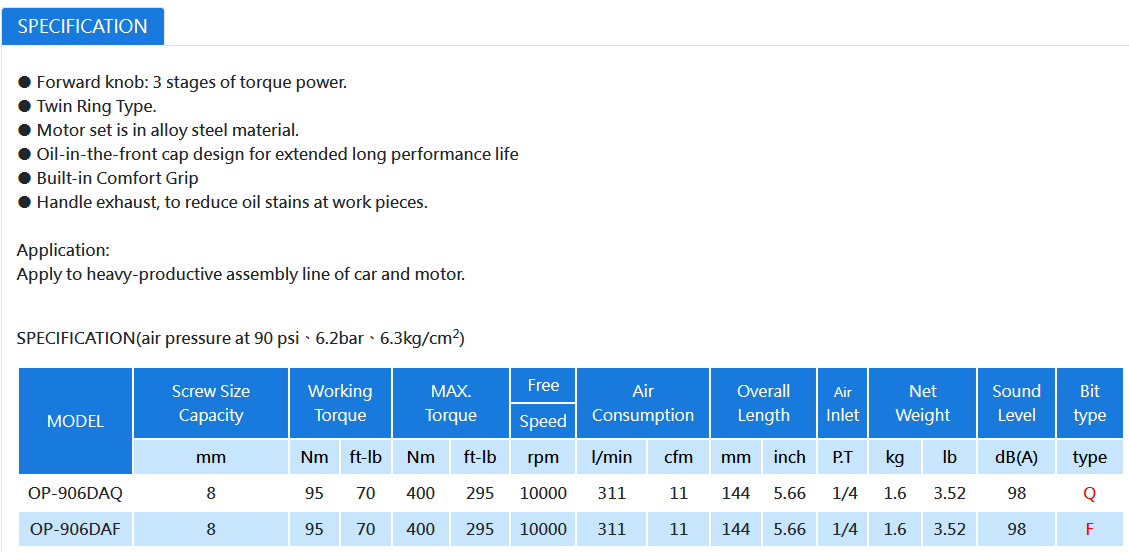

Technical Specifications of Onpin OP-906DAQ / OP-906DAF
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model Series: OP-906DAQ / OP-906DAF
- Screw Size Capacity: 8 mm
- Working Torque: 95 Nm (70 ft-lb)
- MAX. Torque: 400 Nm (295 ft-lb)
- Free Speed: 10,000 rpm
- Air Consumption: 311 l/min (11 cfm)
- Overall Length: 144 mm (5.66 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.6 kg (3.52 lb)
- Sound Level: 98 dB(A)
- Operating Air Pressure: 6.2 bar (90 psi / 6.3 kg/cm²)
- Normative Standards: CE, EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-906DAQ / OP-906DAF
- Automotive & Motorcycle Assembly: Specially engineered for heavy-productive assembly lines of car and motor manufacturing.
- General Machinery Manufacturing: Ideal for fastening industrial threaded joints requiring screws up to 8 mm and high torque up to 400 Nm.
- Industrial Maintenance Workstations: Perfectly suited for continuous fastening tasks needing a compact 144 mm length tool with 3 stages of torque power adjustment.
