/ Onpin Air Screwdriver OP-605DA / OP-605DAF - 8mm Capacity, Max Torque 270Nm, 9500RPM
Onpin Air Screwdriver OP-605DA / OP-605DAF - 8mm Capacity, Max Torque 270Nm, 9500RPM
The Onpin OP-605DA / OP-605DAF Air Screwdriver is engineered for heavy-productive assembly lines in automotive and motorcycle manufacturing. Operating at an air pressure of 90 psi (6.2 bar), it delivers a high free speed of 9,500 RPM, a maximum torque of 270 Nm (working torque 60 Nm), and handles screw capacity up to 8mm. The tool features a compact 155mm length, lightweight 1.42kg design, durable iron front cap, and a low noise rating of 82 dB(A). It is equipped with a quick forward/backward trigger and handle exhaust to prevent oil stains on workpieces.
- OP-605DA
- OP-605DAF
- 605DA
- 01-104-01
- 02-201-05
- 02-203-03
- 03-300-02
- 03-700-04
- 04-700-03
- 04-702-04
- 04-702-08
- 06-701-04
- 09-702-04
- 12-701-07
- 13-401-01
- 13-700-09
- 14-701-01
- 15-702-04
- 17-704-01
- 20-702-01
- 25-702-12
- 26-501-02
- 31-703-01
- 35-706-06
- 36-503-13
- 37-503-05
- 38-504-04
- 39-504-02
- 41-704-01
- 42-703-01
- 51-402-00
- 51-503-05
- 51-701-03
- 52-701-07
- 74-707-04
- 75-605-01
- 79-609-07
- air screwdriver
- pneumatic torque screwdriver
- onpin air tools
- industrial air screwdriver
- air tool replacement parts
Design file download links:
PDF fileDescription
Specification
The Onpin Air Screwdriver OP-605DA / OP-605DAF is an industrial pneumatic fastening tool designed to tighten and loosen threaded fasteners using compressed air energy. It converts pneumatic pressure into high-speed rotational force and high torque, significantly increasing fastening productivity on assembly lines. Manufactured by Hong Bing Pneumatic Industry Co., Ltd. (Taiwan), this tool complies with European safety standards CE (EN ISO 11148-6:2012).
Key Features of Onpin OP-605DA / OP-605DAF
- Quick Reversibility: Equipped with a quick forward & backward trigger for seamless switching between tightening and loosening operations.
- High Performance & Ergonomics: Achieves a free speed of 9,500 rpm while maintaining a light weight of 1.42 kg and a low noise level of 82 dB(A).
- Rugged Construction: Built with an iron front cap to withstand heavy mechanical impacts in demanding factory environments.
- Clean Operation: Features handle exhaust to direct air away from workpieces, preventing oil stain contamination on product surfaces.
- Bit Type Options: Available in OP-605DA (Quick change Bit Type Q) and OP-605DAF (Bit Type F) to suit various bit shank requirements.

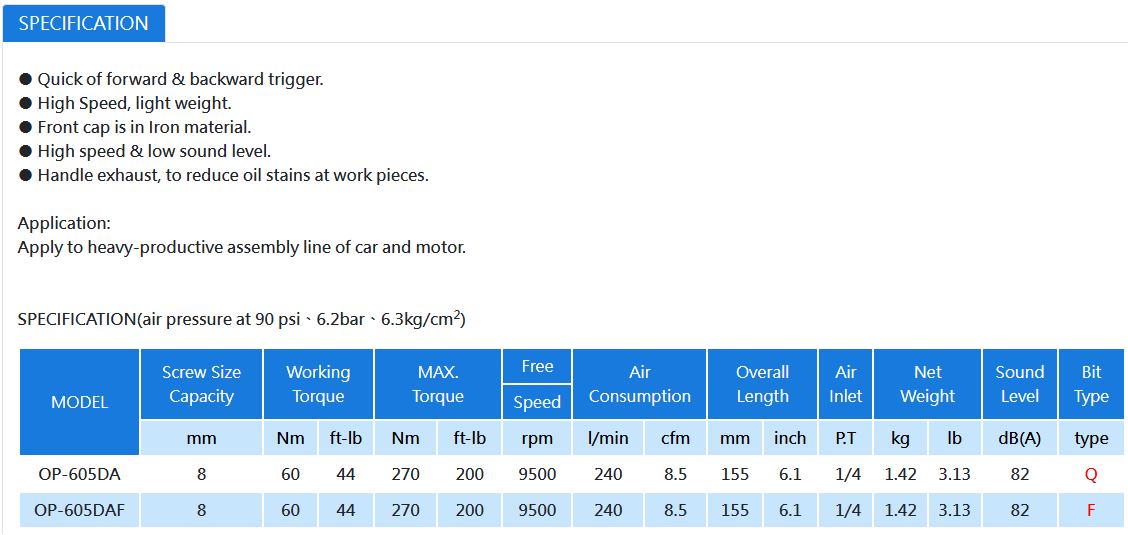

Technical Specifications of Onpin OP-605DA / OP-605DAF
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model Series: OP-605DA / OP-605DAF
- Screw Size Capacity: 8 mm
- Working Torque: 60 Nm (44 ft-lb)
- MAX. Torque: 270 Nm (200 ft-lb)
- Free Speed: 9,500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.42 kg (3.13 lb)
- Sound Level: 82 dB(A)
- Operating Air Pressure: 6.2 bar (90 psi / 6.3 kg/cm²)
- Normative Standards: CE, EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-605DA / OP-605DAF
- Automotive & Motorcycle Industry: Specially designed for heavy-productive assembly lines of car and motor manufacturing.
- General Mechanical Assembly: Ideal for assembling machinery components requiring screws up to 8 mm and torque up to 270 Nm.
- Industrial Manufacturing Plants: Suitable for continuous-duty workstations where a lightweight 1.42 kg tool with low sound level (82 dB(A)) is required to minimize operator fatigue.
