Onpin OP-914DAZ6 Air Impact Wrench - M27~30, Max Torque 2700~3000Nm, Inside Trigger, 6" Anvil
The Onpin OP-914DAZ6 air impact wrench is a heavy-duty pneumatic bolting tool engineered with an inside trigger mechanism and an extended 6" driver anvil length. Designed specifically for heavy-duty M27~30 bolt size capacity applications, it operates at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). The tool delivers a working torque of 2000 Nm (1475 ft-lb) and a maximum torque range of 2700~3000 Nm (1990~2210 ft-lb) at a free speed of 2800 rpm. Key technical specifications include an air consumption of 452 l/min (16 cfm), overall length of 543 mm (21.38 inch), net weight of 13.26 kg (29.23 lb), 3/8 P.T air inlet, and an operating sound level of 100 dB(A).
- OP-914DAZ6
- 914DAZ6
- OP-914
- OP-914DA
- air impact wrench
- pneumatic impact wrench
- Onpin air impact wrench
- M30 air impact wrench
- heavy duty air wrench
Design file download links:
Other fileDescription

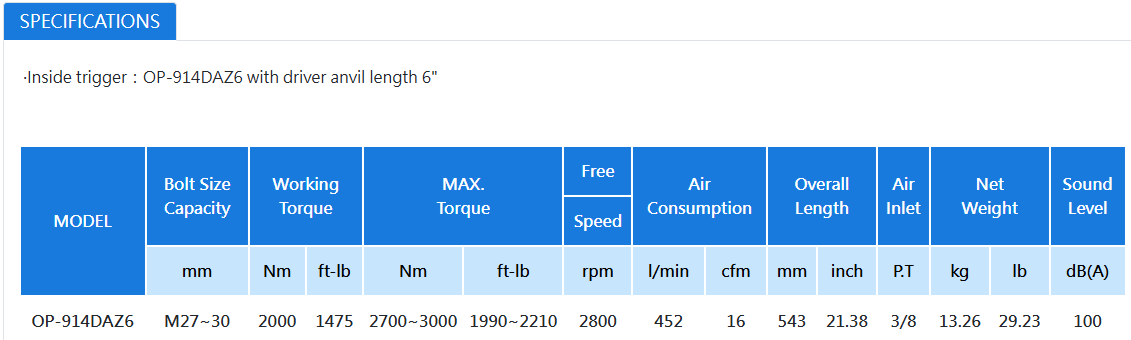

Specification OP-914DAZ6
The Onpin OP-914DAZ6 air impact wrench is a heavy-duty industrial pneumatic bolting tool engineered for high-torque mechanical fastening applications. Operating on compressed air at a standard working pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it features an inside trigger mechanism and an extended 6" driver anvil length to efficiently and accurately secure or loosen fasteners with an M27~30 bolt capacity in deep or recessed areas.
Key Features of Onpin OP-914DAZ6
- Inside Trigger & 6" Extended Anvil: Designed with an inside trigger configuration for enhanced operator protection against accidental activation, paired with an extended 6" anvil length for deep structural reach.
- Massive Torque Output: Delivers a working torque of 2000 Nm and a maximum torque range of 2700~3000 Nm, perfectly suited for heavy M27~30 bolting requirements.
- High Free Speed: Operates at a free speed of 2800 rpm, significantly accelerating operational cycle efficiency.
- Extended Solid Profile: Features an overall length of 543 mm (21.38 inch) and a net weight of 13.26 kg (29.23 lb), ensuring excellent stability and control during high-torque operations.
Technical Specifications of Onpin OP-914DAZ6
- Model: OP-914DAZ6
- Design Feature: Inside trigger with driver anvil length 6"
- Bolt Size Capacity: M27~30
- Working Torque: 2000 Nm (1475 ft-lb)
- MAX. Torque: 2700~3000 Nm (1990~2210 ft-lb)
- Free Speed: 2800 rpm
- Air Consumption: 452 l/min (16 cfm)
- Overall Length: 543 mm (21.38 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 13.26 kg (29.23 lb)
- Sound Level: 100 dB(A)
- Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-914DAZ6
- Heavy Machinery Assembly: Securing M27~30 structural bolts on heavy machinery chassis, steel frame constructions, and deep-set industrial equipment.
- Industrial Maintenance & Repair: Essential for heavy-duty vehicle maintenance workshops, commercial truck wheel servicing, and construction equipment repair.
- General Mechanical Engineering: Applied in demanding industrial environments requiring inside trigger safety, extended anvil reach, high torque output, and long-term durability.
