Onpin Air Impact Wrench OP-W1095D3 / OP-W1095D4 - Max Torque 550Nm, Free Speed 10000rpm

Specification OP-W1095D3、OP-W1095D4

The Onpin OP-W1095D3 / OP-W1095D4 air impact wrench is a series of pneumatic handheld bolting tools specifically engineered for auto repair applications. Operating on compressed air at a standard working pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it converts air pressure into high rotational torque for fast fastening and unfastening of mechanical components. Featuring a highly compact design and ultra-fast speed, OP-W1095D3 and OP-W1095D4 provide an optimized efficiency solution for maintenance engineers and technicians.

Key Features of Onpin OP-W1095D3 / OP-W1095D4

1. Ultra-Compact Profile: An overall length of just 125 mm (4.42 inch) and a lightweight net weight of 1.24 kg (2.5 lb) allow technicians to operate effortlessly in tight vehicle chassis and engine bays.
2. High Torque Output: Delivers a working torque of 480 Nm (353 ft-lb) and a maximum torque of 550 Nm (405 ft-lb) for dependable bolting operations.
3. Exceptional Free Speed: Reaches a high free speed of 10000 rpm, significantly accelerating operational cycles.
4. Standard Industrial Air Consumption: Consumes 340 l/min (12 cfm) with a standard 1/4 P.T air inlet, seamlessly integrating with workshop air supply systems.

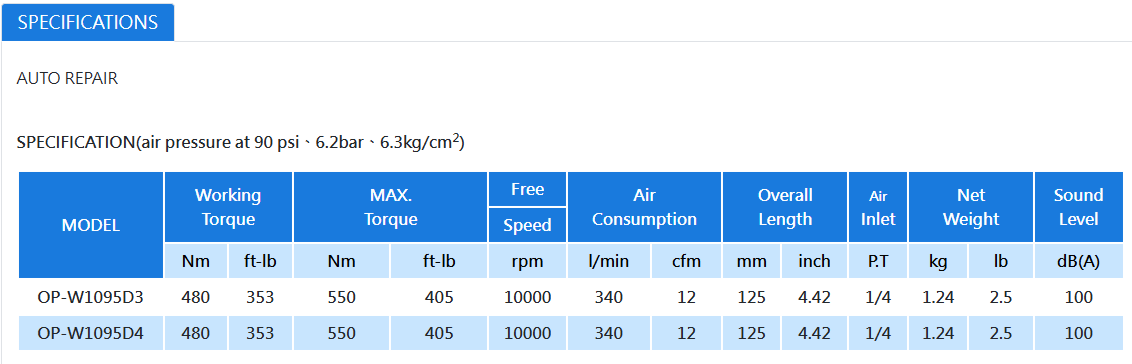

Technical Specifications of Onpin OP-W1095D3 / OP-W1095D4

1. Model: OP-W1095D3, OP-W1095D4
2. Application Category: Auto Repair
3. Working Torque: 480 Nm (353 ft-lb)
4. MAX. Torque: 550 Nm (405 ft-lb)
5. Free Speed: 10000 rpm
6. Air Consumption: 340 l/min (12 cfm)
7. Overall Length: 125 mm (4.42 inch)
8. Air Inlet: 1/4 P.T
9. Net Weight: 1.24 kg (2.5 lb)
10. Sound Level: 100 dB(A)
11. Standard Operating Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)

Industrial Applications of Onpin OP-W1095D3 / OP-W1095D4

1. Automotive Repair & Service Workshops: Fastening and loosening wheels, undercarriage systems, brake assemblies, and engine compartment bolts.
2. Mechanical Equipment Maintenance: Ideal for routine maintenance tasks requiring compact and agile tools across industrial plants.
3. Component Assembly & Light Manufacturing: Fast-paced assembly tasks requiring medium-duty torque in confined spaces.
