Onpin OP-W1064D3 Air Impact Wrench - Auto Repair, 550Nm, 8000rpm

Specification OP-W1064D3

The Onpin OP-W1064D3 air impact wrench is a professional pneumatic fastening tool operating at a standard working air pressure of 90 psi (6.2 bar). It utilizes compressed air energy to deliver high rotational torque, allowing fast and efficient tightening or loosening of heavy-duty bolts and nuts.

Key Features of Onpin OP-W1064D3

1. High Torque Output: Delivers a working torque of 480 Nm and a maximum torque of 550 Nm for reliable fastening performance.
2. High Free Speed: Operates at an impressive 8000 rpm free speed, enhancing productivity on assembly lines.
3. Compact & Lightweight Design: Features an overall length of 160 mm and weighs only 1.3 kg, minimizing operator fatigue during extended use.
4. Standardized Air Inlet: Equipped with a 1/4" P.T air inlet for seamless integration into standard compressed air systems.

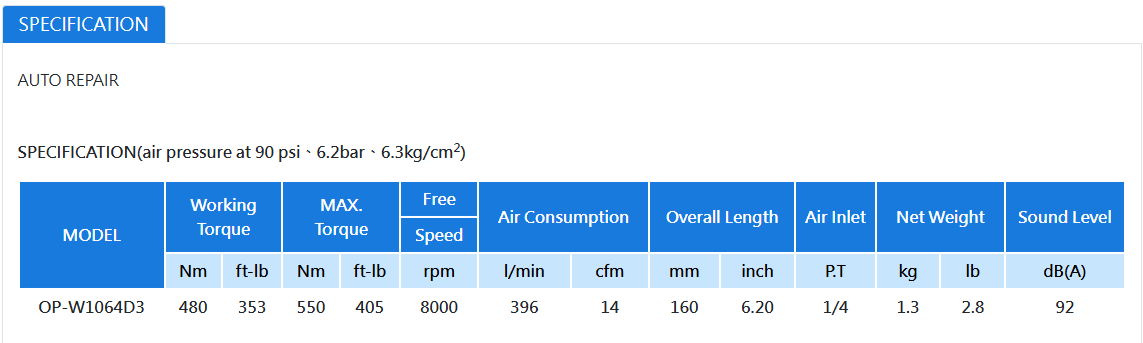

Technical Specifications of Onpin OP-W1064D3

1. Model: OP-W1064D3
2. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
3. Working Torque: 480 Nm / 353 ft-lb
4. Max Torque: 550 Nm / 405 ft-lb
5. Free Speed: 8000 rpm
6. Air Consumption: 396 l/min / 14 cfm
7. Overall Length: 160 mm / 6.20 inch
8. Air Inlet: 1/4" P.T
9. Net Weight: 1.3 kg / 2.8 lb
10. Sound Level: 92 dB(A)

Industrial Applications of Onpin OP-W1064D3

1. Automotive repair and vehicle maintenance workshops (Auto Repair).
2. Mechanical assembly and disassembly in light-to-medium industrial operations.
3. General equipment servicing and machinery manufacturing facilities.
