Onpin OP-W1015D4 Air Impact Wrench - Auto Repair, 900Nm, 8500rpm

Specification OP-W1015D4

The Onpin OP-W1015D4 air impact wrench is a heavy-duty pneumatic bolting tool specifically engineered for auto repair and industrial applications. Powered by compressed air at a standard operating pressure of 90 psi (6.2 bar / 6.3 kg/cm²), it converts air pressure into high rotational torque for rapid fastening and unfastening of heavy bolts and nuts. Designed with balanced ergonomics and robust torque output, the OP-W1015D4 delivers high performance for mechanical engineers and technicians.

Key Features of Onpin OP-W1015D4

1. High Torque Performance: Delivers a working torque of 750 Nm (552 ft-lb) and a maximum torque of 900 Nm (662 ft-lb) for demanding bolting jobs.
2. Fast Free Speed: Operates at a high free speed of 8500 rpm, significantly shortening operational cycle times.
3. Ergonomic Profile: Features an overall length of 190 mm (7.48 inch) and a net weight of 2.1 kg (4.6 lb), providing ideal control and stability.
4. Standard Air Connection: Consumes 452 l/min (16 cfm) of air with a standard 1/4 P.T air inlet for easy workshop integration.

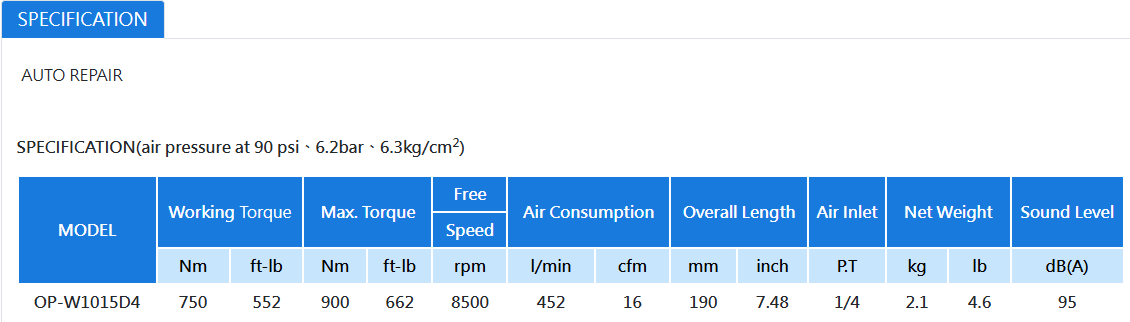

Technical Specifications of Onpin OP-W1015D4

1. Model: OP-W1015D4
2. Application: Auto Repair
3. Standard Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
4. Working Torque: 750 Nm / 552 ft-lb
5. MAX. Torque: 900 Nm / 662 ft-lb
6. Free Speed: 8500 rpm
7. Air Consumption: 452 l/min / 16 cfm
8. Overall Length: 190 mm / 7.48 inch
9. Air Inlet: 1/4 P.T
10. Net Weight: 2.1 kg / 4.6 lb
11. Sound Level: 95 dB(A)

Industrial Applications of Onpin OP-W1015D4

1. Automotive Repair & Services (Auto Repair): Servicing vehicle wheel lug nuts, chassis components, and undercarriage suspensions.
2. Mechanical Manufacturing & Assembly: Fastening structural bolts in equipment fabrication and machinery assembly lines.
3. Industrial Plant Maintenance: Routine maintenance and teardown operations requiring reliable pneumatic torque tools.
