AirTAC LSQH Series Caged Ball Linear Guide – Low-Noise Precision Linear Rail

Specification:

AirTAC LSQH Series Caged Ball Type Linear Guide

The AirTAC LSQH Series is a caged-ball linear guide in which the steel balls are kept at uniform spacing to reduce direct ball-to-ball contact. This structure delivers smoother motion, lower noise and stable performance in high-speed precision applications.

Features

1. Ball-cage design provides low-noise and low-vibration operation.
2. X-shaped rail raceway improves rigidity and multidirectional load capacity.
3. Precision steel balls meet ISO 3290 G10 grade.
4. Integrated overmolded block structure improves strength and sealing.
5. Single-lip oil scrapers clean the rail and help retain lubricant.
6. Double-molded dustproof covers protect the ball circulation system.
7. Single and butt-jointed rail configurations are available.

According to the supplied test charts, the LSQH Series produces lower operating noise than standard ball-type linear guides, especially at higher travel speeds.

Main Specifications

1. Sizes: LSQH15, LSQH20, LSQH25, LSQH30 and LSQH35.
2. Rail widths: 15 mm, 20 mm, 23 mm, 28 mm and 34 mm.
3. Block styles:
4. H: square block.
5. F1: flange block, top mounting.
6. F2: flange block, bottom mounting.
7. F3: flange block, top or bottom mounting.
8. Block lengths: N – standard, L – long; long blocks are unavailable for LSQH15.
9. Number of blocks: one or two blocks per rail.
10. Preload: A – standard clearance, B – light, C – medium, D – heavy.
11. Accuracy grades: N – normal, H – high, P – precision.
12. Rail mounting: top mount or bottom mount.

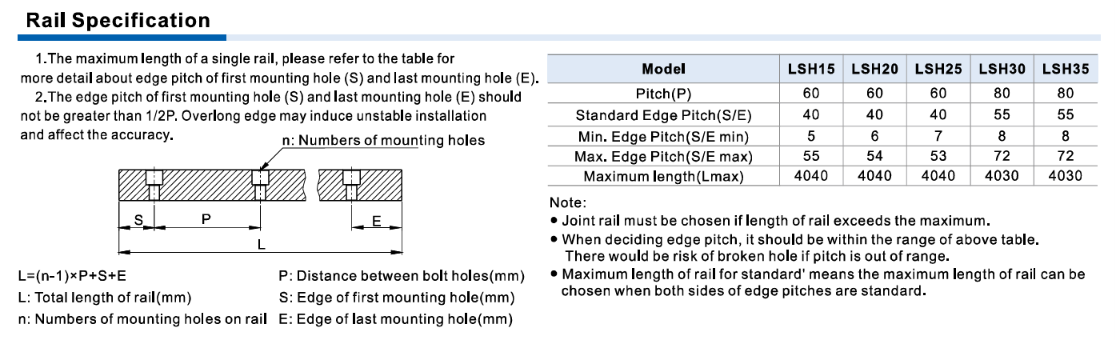

13. Maximum single-rail length:
14. LSQH15, LSQH20 and LSQH25: 4040 mm.
15. LSQH30 and LSQH35: 4030 mm.

Advantages

1. Lower operating noise than conventional ball guides.
2. Smooth motion and good positioning repeatability.
3. Reduced friction between adjacent steel balls.
4. High rigidity and multidirectional load support.
5. Multiple block styles, preload levels and accuracy grades.
6. Effective dust protection and convenient lubrication.
7. Suitable for both standard and long butt-jointed rail systems.

Applications

1. CNC machines and precision machine tools.
2. Industrial robots and pick-and-place systems.
3. High-speed assembly and packaging equipment.
4. Electronics, PCB and semiconductor machinery.
5. Optical measuring and inspection systems.
6. Medical and laboratory equipment.
7. Precision linear tables and low-noise automation systems.
