Onpin Air Screwdriver OP-601DA / OP-601DAF - Max 270Nm, 8500 RPM, 1/4" Inlet
The Onpin OP-601DA / OP-601DAF Air Screwdriver is a high-performance pneumatic tool engineered for heavy-duty assembly lines in automotive and motor manufacturing. Operating at a standard air pressure of 90 psi (6.2 bar), it provides a free speed of 8,500 rpm, a working torque of 60 Nm, and a maximum torque of 270 Nm with an 8 mm screw capacity. Key features include a rugged iron front cap, side exhaust, quick forward/backward trigger, and a built-in 4-speed air regulator conveniently located near the trigger. Measuring 155 mm in length, weighing 1.54 kg, and offering bit anvil choices of Type Q (OP-601DA) or Type F (OP-601DAF), this tool ensures robust operation and efficiency.
- OP-601DA
- OP-601DAF
- OP-601DA Series
- Series OP-601DA
- Onpin air screwdriver
- industrial pneumatic screwdriver
- 8mm air impact screwdriver
- inline air screwdriver 270Nm
- heavy duty air screwdriver car assembly
Design file download links:
Other filePDF fileDescription

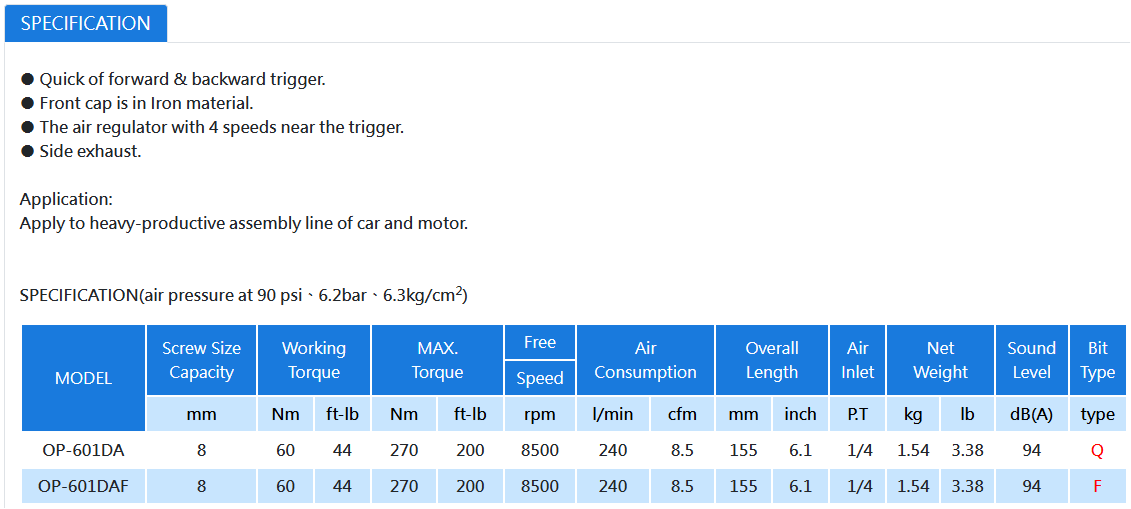

Specification
The Onpin OP-601DA and Onpin OP-601DAF (belonging to the OP-601DA series) are industrial-grade air-powered screwdrivers engineered to operate under a standard working air pressure of 90 psi (6.2 bar). These inline tools convert compressed air into rotational torque via a high-speed pneumatic motor, enabling fast and precise screw fastening in heavy assembly lines.
Key Features of Onpin OP-601DA & OP-601DAF
- Flexible Control: Features a quick forward and backward trigger (Quick of forward & backward trigger) for instant direction switching during operation.
- Heavy-Duty Construction: Built with an iron front cap (Front cap is in Iron material) to enhance mechanical durability and impact resistance in harsh working conditions.
- 4-Speed Air Regulator: Equipped with an integrated air regulator with 4 speeds near the trigger, allowing precise adjustment of rotational speed and power output.
- Safe Exhaust Routing: Includes a side exhaust system (Side exhaust) that diverts airflow away from the workpiece and operator.
- Multiple Anvil Options: Available in two bit anvil types: Bit Type Q (OP-601DA) and Bit Type F (OP-601DAF) to accommodate various standard driver bits.
Technical Specifications of Onpin OP-601DA & OP-601DAF
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Screw Capacity: 8 mm
- Working Torque: 60 Nm (44 ft-lb)
- Maximum Torque: 270 Nm (200 ft-lb)
- Free Speed: 8,500 rpm
- Air Consumption: 240 l/min (8.5 cfm)
- Overall Length: 155 mm (6.1 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.54 kg (3.38 lb)
- Sound Level: 94 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
Industrial Applications of Onpin OP-601DA & OP-601DAF
- Heavy-Productive Assembly Lines: Purpose-built for continuous operations on demanding manufacturing workstations.
- Automotive Manufacturing (Car Assembly): Applied in fastening car body parts, internal mechanisms, and structural components.
- Motor & Motorcycle Manufacturing: Suitable for motor casing bolting, frame joint assembly, and high-volume component integration.
