Onpin Air Screwdriver OP-330DQ / OP-330DF EN ISO 11148-6:2012 - Max 300Nm, 8800 RPM
The Onpin OP-330DQ / OP-330DF Air Screwdriver is an industrial pneumatic tool designed for heavy-productive assembly lines in automotive and motor manufacturing. Operating under a standard air pressure of 90 psi (6.2 bar), it features a heavy-duty alloy steel motor delivering a free speed of 8,800 rpm, a working torque of 75 Nm, and a maximum torque of 300 Nm for 8 mm screw capacities. Built with a 360-degree rotating side exhaust, CE / EN ISO 11148-6:2012 compliance, and available in Type Q (OP-330DQ) or Type F (OP-330DF) bit connections, this tool delivers superior operating convenience. Compact with an overall length of 200 mm and weighing just 1.2 kg, it ensures maximum efficiency for continuous production cycles.
- OP-330 Series
- 330 Series
- OP-330D Series
- OP-330DQ
- OP-330DF
- 330DQ
- 330DF
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- air impact screwdriver
- industrial pneumatic screwdriver
Design file download links:
PDF fileDescription
Specification
The Onpin OP-330DQ / OP-330DF Air Screwdriver is a professional pneumatic hand tool designed for heavy-productive industrial assembly lines. Operating on a standard air pressure of 90 psi (6.2 bar), it converts compressed air energy into high rotational torque, delivering a free speed of 8,800 rpm and a maximum torque of 300 Nm to optimize fastening efficiency.
Key Features of Onpin OP-330DQ / OP-330DF
- High Torque Output: Provides impressive power with a Working Torque of 75 Nm and a MAX. Torque of 300 Nm.
- 360-Degree Side Exhaust: Features a 360 degree rotate side exhaust system to direct exhaust air away from the operator and work area.
- Durable Alloy Steel Motor: The Motor set is in alloy steel material, ensuring exceptional durability under heavy-duty continuous operation.
- Dual Bit Type Options: Available in two bit anvil configurations: Type Q (Model OP-330DQ) and Type F (Model OP-330DF).
- International Safety Certification: Fully compliant with CE, Machinery Directive 2006/42/EC, and EN ISO 11148-6:2012 standards.

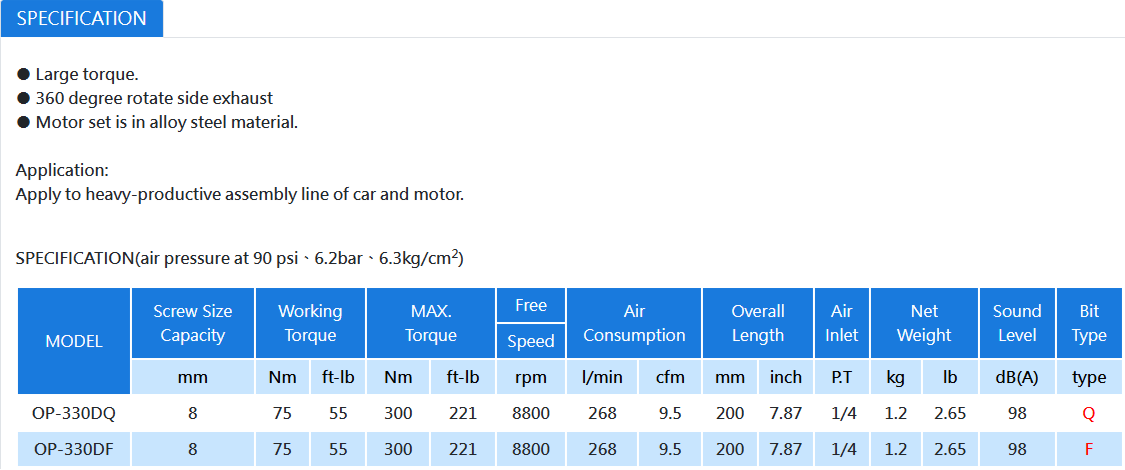

Technical Specifications of Onpin OP-330DQ / OP-330DF
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model: OP-330DQ (Type Q bit), OP-330DF (Type F bit)
- Screw Size Capacity: 8 mm
- Working Torque: 75 Nm (55 ft-lb)
- MAX. Torque: 300 Nm (221 ft-lb)
- Free Speed: 8,800 rpm
- Air Consumption: 268 l/min (9.5 cfm)
- Overall Length: 200 mm (7.87 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.2 kg (2.65 lb)
- Sound Level: 98 dB(A)
- Bit Type: Type Q (Model OP-330DQ), Type F (Model OP-330DF)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Normative Standards: EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-330DQ / OP-330DF
- Automotive Manufacturing: Applied directly in heavy-productive car assembly lines.
- Motor Assembly: Ideal for fastening electric motor components, housings, and sub-assemblies.
- Industrial Machinery Fabrication: Suited for heavy-duty mechanical plants requiring high rotational speed and high torque outputs up to 300 Nm.
