/ Onpin Air Screwdriver OP-310LDAQ / OP-310LDA EN ISO 11148-6:2012 - Max 300Nm, 8000 RPM
Onpin Air Screwdriver OP-310LDAQ / OP-310LDA EN ISO 11148-6:2012 - Max 300Nm, 8000 RPM
The Onpin OP-310LDAQ / OP-310LDA Air Screwdriver is an industrial pneumatic tool designed for heavy-productive assembly lines in automotive and motor manufacturing. Powered by compressed air at 90 psi (6.2 bar), it features an alloy steel motor set delivering a free speed of 8,000 rpm, working torque of 68 Nm, and maximum torque of 300 Nm for 8 mm screw capacities. Built for one-hand operation with a forward/reverse switch, 4-stage air regulator knob, external greasing port, and compliance with CE / EN ISO 11148-6:2012, it ensures high efficiency. Compact with an overall length of 185 mm, weight of 1.52 kg, and choices of Type Q (OP-310LDAQ) or Type F (OP-310LDA) bit anvils, it delivers dependable industrial performance.
- OP-310LDA Series
- 310LDA Series
- OP-310 Series
- OP-310LDAQ
- OP-310LDA
- 310LDAQ
- 310LDA
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- air impact screwdriver
- industrial pneumatic screwdriver
Design file download links:
PDF fileDescription

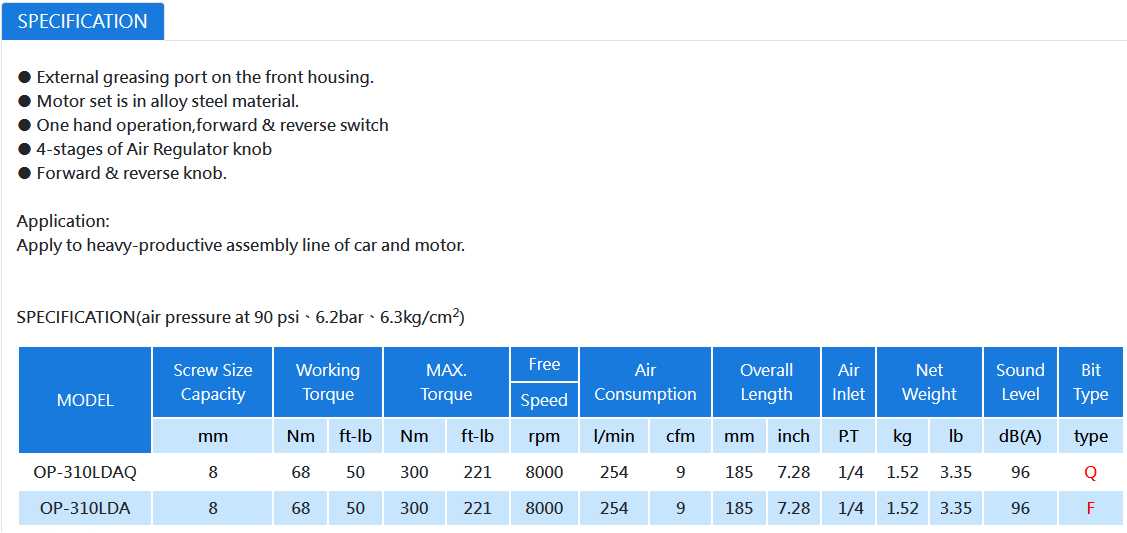

Specification
The Onpin OP-310LDAQ / OP-310LDA Air Screwdriver is an industrial pneumatic hand tool engineered for heavy-duty assembly and production lines. Driven by standard compressed air at 90 psi (6.2 bar / 6.3 kg/cm²), it converts air pressure into high rotational torque, delivering a free speed of 8,000 rpm and a maximum torque of 300 Nm for fast fastening operations.
Key Features of Onpin OP-310LDAQ / OP-310LDA
- Alloy Steel Motor: Engineered with a durable Motor set in alloy steel material for continuous industrial performance.
- External Greasing Port: Built-in External greasing port on the front housing for convenient routine maintenance without housing disassembly.
- One-Hand Operation: Designed for effortless One hand operation with an integrated forward & reverse switch.
- 4-Stage Air Regulation: Equipped with a 4-stages of Air Regulator knob to control air flow and power output.
- Dual Bit Type Options: Available in two anvil options: Type Q (Model OP-310LDAQ) and Type F (Model OP-310LDA).
- Safety Certified: Fully compliant with CE, Machinery Directive 2006/42/EC, and EN ISO 11148-6:2012 standards.
Technical Specifications of Onpin OP-310LDAQ / OP-310LDA
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model: OP-310LDAQ (Type Q bit), OP-310LDA (Type F bit)
- Screw Size Capacity: 8 mm
- Working Torque: 68 Nm (50 ft-lb)
- MAX. Torque: 300 Nm (221 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 254 l/min (9 cfm)
- Overall Length: 185 mm (7.28 inch)
- Air Inlet: 1/4" P.T
- Net Weight: 1.52 kg (3.35 lb)
- Sound Level: 96 dB(A)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Normative Standards: EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-310LDAQ / OP-310LDA
- Automotive Assembly: Applied in heavy-productive car manufacturing and component lines.
- Motor Manufacturing: Designed for fastening housings and structural components of electric motors.
- General Industrial Assembly: Suitable for high-torque fastening tasks requiring up to 300 Nm capacity on 8 mm fasteners.
