/ Onpin Air Screwdriver OP-310DA / OP-310DAQ EN ISO 11148-6:2012 - Max 300Nm, 8000 RPM
Onpin Air Screwdriver OP-310DA / OP-310DAQ EN ISO 11148-6:2012 - Max 300Nm, 8000 RPM
The Onpin OP-310DA / OP-310DAQ Air Screwdriver is an industrial pneumatic tool designed for heavy-productive assembly lines in car and motor manufacturing. Powered by compressed air at 90 psi (6.2 bar), it features an alloy steel motor set delivering a free speed of 8,000 rpm, a working torque of 68 Nm, and a maximum torque of 300 Nm for 8 mm screw capacities. The tool incorporates a forward & reversible knob, a 2-step push start trigger, screw-fixed front cap for long-duty operation, and options for Type Q (OP-310DA) or Type F (OP-310DAQ) anvils. Weighing 1.2 kg with an overall length of 200 mm and CE / EN ISO 11148-6:2012 compliance, it provides dependable industrial performance.
- OP-310 Series
- 310 Series
- OP-310DA Series
- OP-310DA
- OP-310DAQ
- 310DA
- 310DAQ
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- air impact screwdriver
- industrial pneumatic screwdriver
Design file download links:
PDF fileDescription
Specification
The Onpin OP-310DA / OP-310DAQ Air Screwdriver is a handheld pneumatic fastening tool engineered for heavy-productive assembly lines in automotive and motor manufacturing. Operating on standard compressed air at 90 psi (6.2 bar), it converts pneumatic power into a working torque of 68 Nm and a maximum torque of 300 Nm at 8,000 rpm to optimize assembly efficiency.
Key Features of Onpin OP-310DA / OP-310DAQ
- Alloy Steel Motor Set: Built with an alloy steel motor assembly (Motor set is in alloy steel material) to ensure superior durability and high-load performance.
- 2-Step Push Start Trigger: Designed with a 2 step push start trigger for precise speed control and smooth starting response.
- Screw-Fixed Structure: The front cap and tool body are securely fastened with screws (The front cap & the body are fixed by screws), preventing looseness during extended working hours.
- Forward & Reversible Control: Features an intuitive Forward & Reversible knob for quick direction switching.
- Dual Bit Anvil Options: Offers two anvil configurations including Type Q (Model OP-310DA) and Type F (Model OP-310DAQ) to suit various bit requirements.
- CE & International Compliance: Certified under European Machinery Directive 2006/42/EC and EN ISO 11148-6:2012 safety standards.

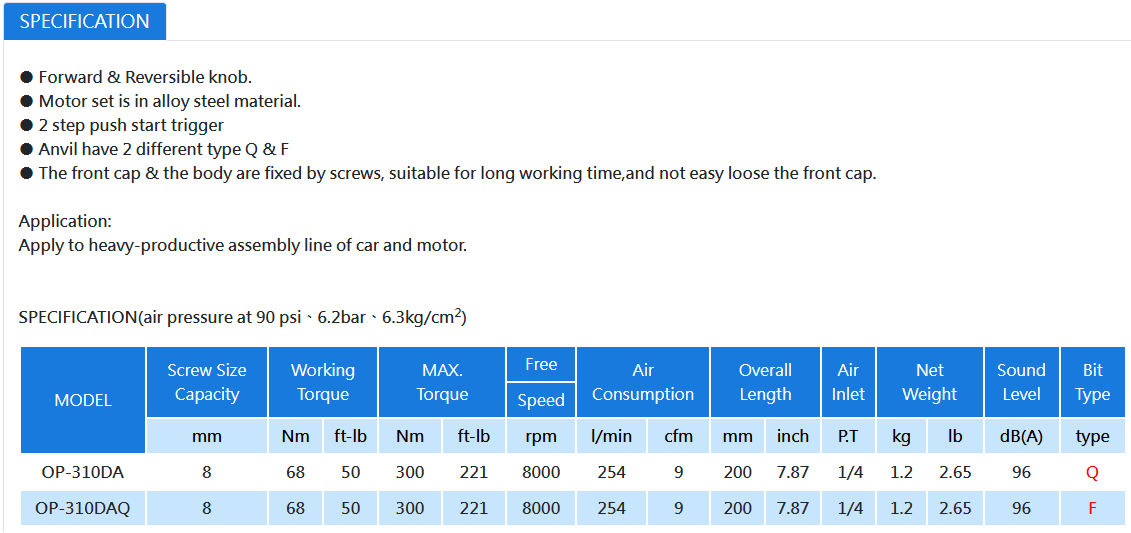

Technical Specifications of Onpin OP-310DA / OP-310DAQ
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model: OP-310DA (Type Q bit), OP-310DAQ (Type F bit)
- Screw Size Capacity: 8 mm
- Working Torque: 68 Nm (50 ft-lb)
- MAX. Torque: 300 Nm (221 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 254 l/min (9 cfm)
- Overall Length: 200 mm (7.87 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.2 kg (2.65 lb)
- Sound Level: 96 dB(A)
- Bit Type: Type Q (Model OP-310DA), Type F (Model OP-310DAQ)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Normative Standards: EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-310DA / OP-310DAQ
- Automotive Assembly Lines: Applied in high-capacity vehicle production for fastening chassis components and sub-assemblies.
- Motor & Engine Manufacturing: Ideal for securing electric motor housings, starters, and mechanical drive units.
- Industrial Mechanical Fabrication: Suited for heavy-duty manufacturing tasks requiring high rotational speed and torque outputs up to 300 Nm.
