Onpin Air Screwdriver OP-308DA1 / OP-308DAF - 8mm Capacity, 60Nm, 8000 RPM
The Onpin OP-308DA1 / OP-308DAF Air Screwdriver is a professional pneumatic tool engineered for heavy-productive car and motor assembly lines. Featuring a durable twin-ring mechanism, it offers an 8 mm screw capacity, 60 Nm working torque (max 230 Nm), and a free speed of 8,000 rpm under 90 psi (6.2 bar) air pressure. Designed with a self-locking reverse button for easy one-hand operation, its lightweight 1.32 kg body ensures optimal productivity and user comfort.
- OP-308 Series
- 308 Series
- OP-308DA Series
- OP-308DA1
- OP-308DAF
- 308DA1
- 308DAF
- air screwdriver
- pneumatic screwdriver
- Onpin air screwdriver
- air impact screwdriver
- twin ring air screwdriver
Design file download links:
PDF fileDescription
Specification
The Onpin OP-308DA1 / OP-308DAF Air Screwdriver is a professional pneumatic fastening tool engineered specifically for heavy-productive assembly lines in automotive and motor manufacturing. Powered by standard compressed air at 90 psi (6.2 bar), it converts air power into a working torque of 60 Nm and a maximum torque of 230 Nm at 8,000 rpm to boost assembly line efficiency.
Key Features of Onpin OP-308DA1 / OP-308DAF
- Twin Ring Mechanism: Delivers large torque output (Large torque) while ensuring long performance life (long performance life).
- One-Handed Operation: Designed for effortless one-handed forward and reverse control (One hand operation forward and reverse).
- Self-Locking Reverse Button: Features a self-locking function on the reverse switch (Reverse button has self locking function) for precise and safe operation.
- Lightweight Design: Weighs only 1.32 kg, significantly reducing operator fatigue during continuous industrial shifts.
- CE & International Compliance: Fully complies with European Machinery Directive 2006/42/EC and EN ISO 11148-6:2012 normative safety standards.

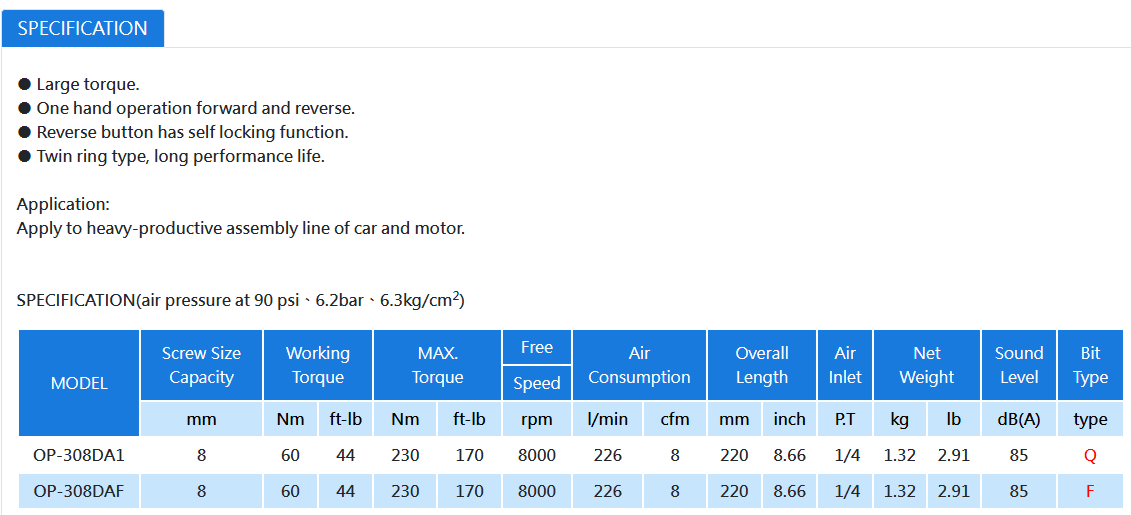

Technical Specifications of Onpin OP-308DA1 / OP-308DAF
- Brand: Onpin (Hong Bing Pneumatic Industry Co., Ltd.)
- Model: OP-308DA1 (Type Q bit), OP-308DAF (Type F bit)
- Impact Mechanism: Twin ring type
- Screw Size Capacity: 8 mm
- Working Torque: 60 Nm (44 ft-lb)
- MAX. Torque: 230 Nm (170 ft-lb)
- Free Speed: 8,000 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 220 mm (8.66 inch)
- Air Inlet Size: 1/4" P.T
- Net Weight: 1.32 kg (2.91 lb)
- Sound Level: 85 dB(A)
- Bit Type: Type Q (Model OP-308DA1), Type F (Model OP-308DAF)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Normative Standards: EN ISO 11148-6:2012, Machinery Directive 2006/42/EC
Industrial Applications of Onpin OP-308DA1 / OP-308DAF
- Automotive Manufacturing: Applied in heavy-productive vehicle assembly lines for interior and chassis components.
- Electric Motor Production: Fastening electric motor housings and sub-assemblies requiring high RPM and consistent torque.
- Heavy-Productive Assembly Lines: Ideal for continuous industrial manufacturing environments demanding high tool durability.
