/ Onpin OP-9630 Air Belt Sander - 30x540mm Belt Size, 15000RPM, 90psi/6.2bar Pressure, 1.4kg
Onpin OP-9630 Air Belt Sander - 30x540mm Belt Size, 15000RPM, 90psi/6.2bar Pressure, 1.4kg
The Onpin OP-9630 air belt sander utilizes a 30 x 540 mm belt size and delivers a free speed of 15,000 rpm under standard 90 psi (6.2 bar) air pressure. Featuring an air consumption rate of 432 l/min (15.3 cfm), an overall length of 410 mm (16.15 inches), and a net weight of 1.4 kg (3.08 lb), it provides stable handling for larger surface grinding. Equipped with a 1/4 P.T air inlet, it supports #80 and #100 grit sandpaper bands. This tool offers an efficient solution for heavy deburring, weld seam leveling, and surface finishing in industrial operations.
- OP-9630
- Ref 1 9630#01 Cap
- Ref 2 9630#02 Ball Bearing (608ZZ)
- Ref 3 9630#03 Rear End Plate
- Ref 4 9630-04 Pin (435)
- Ref 5 9630#05 Cylinder
- Ref 6 9630#06 Rotor
- Ref 7 9630-07 Rotor Blade
- Ref 8 9630-08 Spacer
- Ref 9 9630-09 Front End Plate
- Ref 10 9630-10 Bearing
- Ref 11 9630#11 O-Ring (50D1.5)
- Ref 12 9630-12 Housing
- Ref 13 9630-13 Lever Pin (D323)
- Ref 14 9630#14 Spring
- Ref 15 9630-15 Valve Stem
- Ref 16 9630-16 O-Ring (3.6D2.4)
- Ref 17 9630-17 O-Ring (2.2D0.9)
- Ref 18 9630-18 O-Ring (P9)
- Ref 19 9630#19 Valve Body
- Ref 20 9630#20 Safety Lever
- Ref 21 9630#21 Cover Handle
- Ref 22 9630#22 Washer
- Ref 23 9630#23 O-Ring
- Ref 24 9630#24 Exhaust Control Spacer
- Ref 25 9630#25 Inlet Bushing
- Ref 26 9630-26 Washer
- Ref 27 9630#27 Spring
- Ref 28 9630#28 Guide Cover
- Ref 29 9630#29 Guard Body
- Ref 30 9630#30 Screw (M530)
- Ref 31 9630#31 Set Screw (M45)
- Ref 32 9630#32 Spring
- Ref 33 9630#33 Block Slice
- Ref 34 9630#34 Drive Pulley
- Ref 35 9630#35 Key
- Ref 36 9630#36 Spindle Chuck
- Ref 37 9630#37 Screw (M616)
- Ref 38 9630#38 Belt Guard
- Ref 39 9630#39 Handle Screw
- Ref 40 9630#40 Grip
- Ref 41 9630#41 O-Ring
- Ref 42 9630#42 Screw (M48)
- Ref 43 9630#43 Dust Cover
- Ref 44 9630#44 Bearing (686ZZ)
- Ref 45 9630#45 Wheel
- Ref 46 9630#46 Spring Pin (318)
- Ref 47 9630#47 Location Pin
- Ref 48 9630#48 Screw (M38)
- Ref 49 9630#49 Screw (M48)
- Ref 50 9630#50 Contact Arm
- Ref 51 9630#51 Spring
- Ref 52 9630#52 Lever Pin (D314)
- Ref 53 9630#53 Tension Bar
- Ref 54 9630#54 Shoe 30
- Ref 55 9630-55 Screw (M510)
- Ref 56 9630#56 Hex Wrench Key (2.5mm)
- Ref 57 9630#57 Hex Wrench Key (4mm)
- Ref 58 9630#58 Sanderpaper Band #100
- Ref 58A 9630#58A Sanderpaper Band #80
- Onpin air belt sander
- pneumatic belt sander 30x540mm
- wide belt air sander
- Onpin OP-9630 replacement parts
- heavy duty air belt grinding tool
Design file download links:
PDF fileDescription

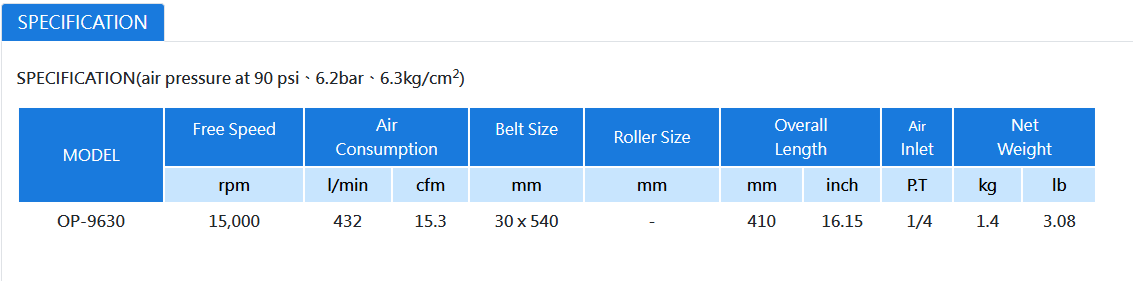

Specification OP-9630
The Onpin OP-9630 Air Belt Sander is a heavy-duty industrial pneumatic grinding tool powered by a standard working air pressure of 90 psi (6.2 bar). Driven by a high-capacity air motor through a drive pulley mechanism, it rotates a wide abrasive belt at high speeds for heavy material removal, weld seam leveling, and large-surface finishing.
Key Features of Onpin OP-9630
- Wide belt capacity: Uses a 30 x 540 mm abrasive belt to maximize surface contact area and optimize heavy-duty grinding efficiency.
- Powerful high-speed removal: Operates at a free speed of 15,000 rpm with an air consumption rate of 432 l/min (15.3 cfm) to tackle demanding workloads.
- Ergonomic & heavy-duty structure: Designed with an overall length of 410 mm (16.15 inches) and a net weight of 1.4 kg (3.08 lb), integrated with a auxiliary grip and backing shoe for superior control.
- Versatile abrasive banding: Compatible with #80 and #100 grit sandpaper bands for flexible rough grinding to medium surface conditioning.
Technical Specifications of Onpin OP-9630
- Brand: Onpin
- Model Number: OP-9630
- Belt Size: 30 x 540 mm
- Free Speed: 15,000 rpm
- Air Consumption: 432 l/min (15.3 cfm)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Overall Length: 410 mm (16.15 inches)
- Air Inlet Thread: 1/4 P.T
- Net Weight: 1.4 kg (3.08 lb)
Industrial Applications of Onpin OP-9630
- Steel Fabrication & Shipbuilding: Long seam weld leveling, plate rust removal, and heavy-duty sheet metal preparation.
- Automotive & Heavy Equipment Manufacturing: Deburring structural chassis frames, cast components, and body panels.
- Industrial Machinery Maintenance: Surface conditioning of large machine bases, mounting plates, and structural steel assemblies.
