/ Onpin OP-3936 Air Belt Sander - 60x260mm Belt Size, 60xØ50mm Roller, 7000RPM, 90psi/6.2bar Pressure, 1.25kg

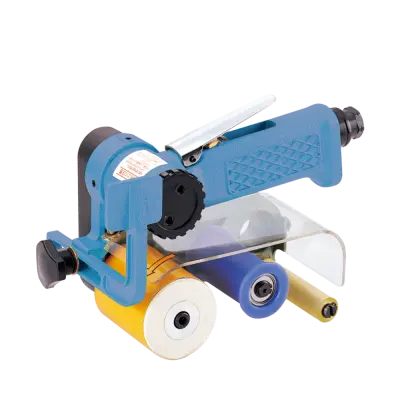

Onpin OP-3936 Air Belt Sander - 60x260mm Belt Size, 60xØ50mm Roller, 7000RPM, 90psi/6.2bar Pressure, 1.25kg
The Onpin OP-3936 air belt sander features a 60 x 260 mm belt size paired with a 60 x Ø50 mm roller, operating at a free speed of 7,000 rpm under a standard air pressure of 90 psi (6.2 bar). Delivering an air consumption rate of 268 l/min (9.5 cfm), an overall length of 210 mm (8.27 inches), and a net weight of 1.25 kg (2.76 lb), it ensures optimal control and maneuverability. Equipped with a standard 1/4 P.T air inlet, this pneumatic tool provides an efficient solution for surface finishing, weld seam removal, and deburring in metal fabrication environments.
- OP-3936
- Ref 1B 39360N-01B MOTOR HOUSHING
- Ref 2 39360N-61 DEFLECTOR
- Ref 3 00-06132 TAP SCREW (M3x8L)
- Ref 4 39360N-21 INLET BUSHING
- Ref 5 A303D-03 REGULATOR SET
- Ref 6 00-2314 BALL BEARING (6000ZZ)
- Ref 7 39360N-16 F-BEARING CASE
- Ref 8 39360N-93 ROTOR BLADE
- Ref 9 39360N-14 ROTOR
- Ref 10 39360N-12 CYLINDER
- Ref 11 39360N-10 B-BEARING CASE
- Ref 12 00-2319 BALL BEARING (626ZZ)
- Ref 13 00-4136S O-RING (S36)
- Ref 14B 39360N-07B MOTOR NUT(AH45)
- Ref 15 39360N-36 SPRING
- Ref 16 00-4107 O-RING (S4)
- Ref 17 39360N-23 VALVE STEM
- Ref 18 00-4102 O-RING (P8)
- Ref 19 00-4121 O-RING (S10)
- Ref 20 39360N-42 VALVE PIN SLEEVE
- Ref 21 00-3303 SPRING PIN (∮3x25L)
- Ref 22 39360N-30 VALVE LEVER
- Ref 23 00-3004 SNAP RING (S-8)
- Ref 24 39360N-66 LEVEL ROLLER
- Ref 25 39360N-19 LEVEL SHAFT
- Ref 26 00-2311 BALL BEARING (608ZZ)
- Ref 27 39360N-65B IDLER ROLLER
- Ref 28 39360N-18 ROLLER SHAFT
- Ref 29 00-3323 SPRING PIN (∮2x10L)
- Ref 30 00-0105 CAP SCREW (M5x10L)
- Ref 31 00-1802 SPRING WASHER (M5)
- Ref 32 39360N-17 DRIVER SHAFT
- Ref 33 00-3102 SNAP RING (R-26)
- Ref 34 39360N-80 DRIVER ROLLER
- Ref 35 00-1804 SPRING WASHER (M6)
- Ref 36 00-0123 CAP SCREW (M6)
- Ref 37B 39360N-02B FRAME(AH45)
- Ref 38 39360N-22 SPACER
- Ref 39B 39360N-05B GUIDE(AH45)
- Ref 40 39360N-62 KNOB
- Ref 41 00-1408 WASHER (∮8.2x16x0.5t)
- Ref 42 00-3433 NEEDLE ROLLER (∮2.5x11L)
- Ref 43 39360N-29 PULLY
- Ref 44 00-1506 WASHER (∮8.2x16x1.5t)
- Ref 45 00-1004 NUT (M8)
- Ref 46 00-80501 BELT (S3M-207-10)
- Ref 47 39360N-60 BELT COVER
- Ref 48 39360N-20 PULLY
- Ref 49 00-0206 SCREW (M5x6L)
- Ref 50 00-1006 NUT (M6)
- Ref 51 00-1501 WASHER (∮6.3x∮13x1t)
- Ref 52 39360N-67 WHEEL COVER
- Ref 53 00-030408W SCREW (M4x8L)
- Ref 55 00-1507 WASHER (M4)
- Ref 57 00-4603 HEX WRENCHES (2.5MM)
- Ref 58 00-4606 HEX WRENCHES (5MM)
- Ref 70 00-1808 SPRING WASHER (M8)
- Onpin air belt sander
- pneumatic belt sander 60x260mm
- Onpin OP-3936 replacement parts
- hand held pneumatic belt sander
- 60mm roller air sander
Design file download links:
PDF fileDescription
Specification OP-3936
The Onpin OP-3936 Air Belt Sander is an industrial pneumatic finishing tool powered by a standard working air pressure of 90 psi (6.2 bar). Driven by an internal air motor through a pulley and driver roller system, it operates a wide abrasive belt at high speed for effective surface conditioning, weld seam removal, and deburring of metal components.
Key Features of Onpin OP-3936
- Wide belt & roller setup: Features a 60 x 260 mm belt size combined with a 60 x Ø50 mm roller for expanded contact area and enhanced grinding efficiency.
- Controlled speed & efficient air use: Operates at a free speed of 7,000 rpm with an air consumption rate of 268 l/min (9.5 cfm), offering smooth surface finishing while keeping operating costs low.
- Compact & lightweight design: Built with an overall length of 210 mm (8.27 inches) and a net weight of 1.25 kg (2.76 lb), allowing precise control and easy maneuverability in confined spaces.
- Durable industrial components: Engineered with precision rotor blades, quality ball bearings, a belt cover, and a wheel cover to ensure operational safety and extended service life.

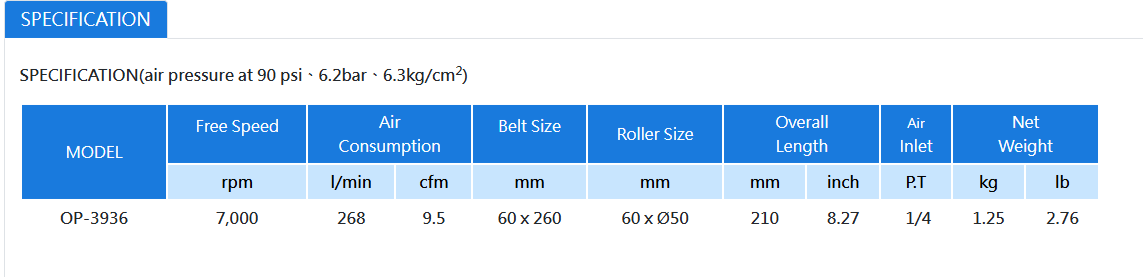

Technical Specifications of Onpin OP-3936
- Brand: Onpin
- Model Number: OP-3936
- Belt Size: 60 x 260 mm
- Roller Size: 60 x Ø50 mm
- Free Speed: 7,000 rpm
- Air Consumption: 268 l/min (9.5 cfm)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Overall Length: 210 mm (8.27 inches)
- Air Inlet Thread: 1/4 P.T
- Net Weight: 1.25 kg (2.76 lb)
Industrial Applications of Onpin OP-3936
- Sheet Metal Fabrication: Weld seam leveling, edge deburring, and surface preparation after cutting processes.
- Automotive & Precision Engineering: Polishing metal parts, contoured profiles, and structural frame components.
- Shipbuilding & Structural Steel Works: Rust removal, scale cleaning, and pre-coating surface preparation.
