/ Onpin OP-9610 Air Belt Sander - 10x330mm Belt Size, 16000RPM, 90psi/6.2bar Pressure, 0.9kg
Onpin OP-9610 Air Belt Sander - 10x330mm Belt Size, 16000RPM, 90psi/6.2bar Pressure, 0.9kg
The Onpin OP-9610 air belt sander utilizes a 10 x 330 mm belt size and delivers a free speed of 16,000 rpm under standard 90 psi (6.2 bar) air pressure. Featuring an air consumption rate of 328 l/min (11.6 cfm), an overall length of 290 mm, and a lightweight design of 0.9 kg, it allows easy access to narrow gaps and confined work areas. Equipped with a 1/4 P.T air inlet, it supports various grinding belts including #80, #100, and #120 grit options. This tool provides an efficient solution for surface finishing, weld seam deburring, and metal polishing in industrial manufacturing.
- OP-9610
- Ref 1 9610#01 Grinding Belt (#100)
- Ref 1A 9610#1A Grinding Belt (#80)
- Ref 1B 9610#1B Grinding Belt (#120)
- Ref 2 9610#02 Idle Pulley 10 Sub Assy
- Ref 2A 9610#2A Idle Pulley
- Ref 2B 9610#2B Ball Bearing (684ZZ)
- Ref 4 9610#04 Needle Roller
- Ref 5 9610#05 Bracket 10
- Ref 6 9610#06 Tension Bar 10
- Ref 7 9610#07 Screw (3x10)
- Ref 8 9610#08 Screw (M38)
- Ref 9 9610#09 Spring (0.98.58.3)
- Ref 10 9610#10 Spring Pin (M310)
- Ref 11 9610#11 Spring (1.05.04.0)
- Ref 12 9610#12 Shoe 10
- Ref 13 9610#13 Screw (M48)
- Ref 14 9610#14 Guard Sub Assy A
- Ref 14A 9610#14A Guard Bushing
- Ref 15 9610#15 Screw (M515)
- Ref 16 9610#16 Hexagon Nut (M6)
- Ref 16A 9610#16A Washer
- Ref 17 9610#17 Drive Pulley
- Ref 18 9610#18 Housing
- Ref 19 9610#19 Ball Bearing (628ZZ)
- Ref 20 9610#20 End Plate B
- Ref 21 9610#21 Spacer (8113)
- Ref 22 9610#22 Sunk Key (M310)
- Ref 23 9610#23 Cap
- Ref 24 9610#24 Ball Bearing (607ZZ)
- Ref 25 9610#25 End Plate A
- Ref 26 9610#26 Cylinder
- Ref 26A 9610-26A Pin (35)
- Ref 27 9610#27 Blade
- Ref 28 9610#28 Rotor
- Ref 29 9610#29 Throttle Lever
- Ref 30 9610#30 Lever Pin (M323)
- Ref 31 9610#31 Valve Body
- Ref 33 9610#33 O-Ring (P9)
- Ref 34 9610#34 O-Ring (P5)
- Ref 35 9610#35 Valve Stem
- Ref 36 9610#36 O-Ring (3.62.4)
- Ref 37 9610-37 Valve Spring
- Ref 38 9610#38 Deflector
- Ref 39 9610#39 Air Inlet
- Ref 40 9610#40 Tension Bar
- Ref 41 9610#41 Spring
- Ref 42 9610#42 Lever Pin (26)
- Ref 43 9610#43 Lever Pin (M2.510)
- Ref 44 9610-44 Dust Cover
- Ref 45 9610#45 Hexagon Wrench Key (4mm)
- Ref 46 9610#46 Hexagon Wrench Key (M1.5)
- Ref 47 9610-47 O-Ring
- Ref 48 9610#48 O-Ring
- Onpin air belt sander
- pneumatic belt sander 10x330mm
- mini air belt sander 16000rpm
- Onpin OP-9610 replacement parts
- industrial pneumatic belt grinding tool
Design file download links:
PDF fileDescription

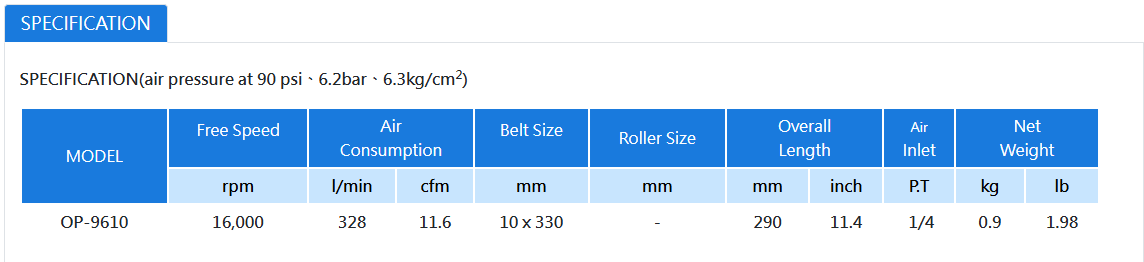

Specification OP-9610
The Onpin OP-9610 Air Belt Sander is a handheld pneumatic grinding tool designed to operate under a standard working air pressure of 90 psi (6.2 bar). It utilizes a compressed air motor driving a drive pulley to rotate a continuous abrasive belt, delivering efficient deburring, weld blending, and surface finishing in confined space industrial applications.
Key Features of Onpin OP-9610
- Compact design for tight spaces: Utilizes a 10 x 330 mm belt size combined with an ultra-lightweight 0.9 kg (1.98 lb) body, enabling easy access to narrow gaps and recessed areas.
- High-speed material removal: Reaches a free speed of 16,000 rpm for rapid stock removal and fine surface conditioning.
- Stable belt tracking: Features an integrated tension bar and guard assembly to maintain optimal belt alignment during heavy operation.
- Versatile abrasive options: Supports multiple grit options including #80, #100, and #120 for coarse grinding to fine finishing.
Technical Specifications of Onpin OP-9610
- Brand: Onpin
- Model Number: OP-9610
- Belt Size: 10 x 330 mm
- Free Speed: 16,000 rpm
- Air Consumption: 328 l/min (11.6 cfm)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Overall Length: 290 mm (11.4 inches)
- Air Inlet Thread: 1/4 P.T
- Net Weight: 0.9 kg (1.98 lb)
Industrial Applications of Onpin OP-9610
- Metal Fabrication: Deburring cut edges, corner weld blending, and surface prep.
- Automotive Manufacturing & Repair: Grinding internal contours, body panel seams, and narrow bracketry.
- Mold & Tooling Maintenance: Finishing intricate mold cavities, cast parts, and mechanical hardware.
