/ Onpin OP-9620 Air Belt Sander - 20x520mm Belt Size, 16000RPM, 90psi/6.2bar Pressure, 1.2kg
Onpin OP-9620 Air Belt Sander - 20x520mm Belt Size, 16000RPM, 90psi/6.2bar Pressure, 1.2kg

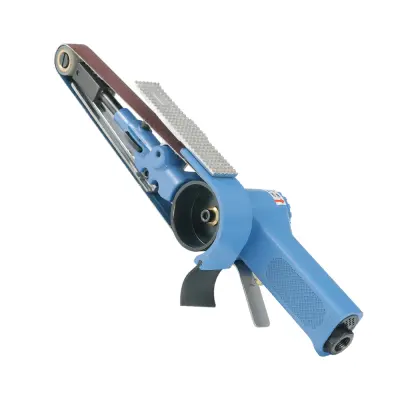

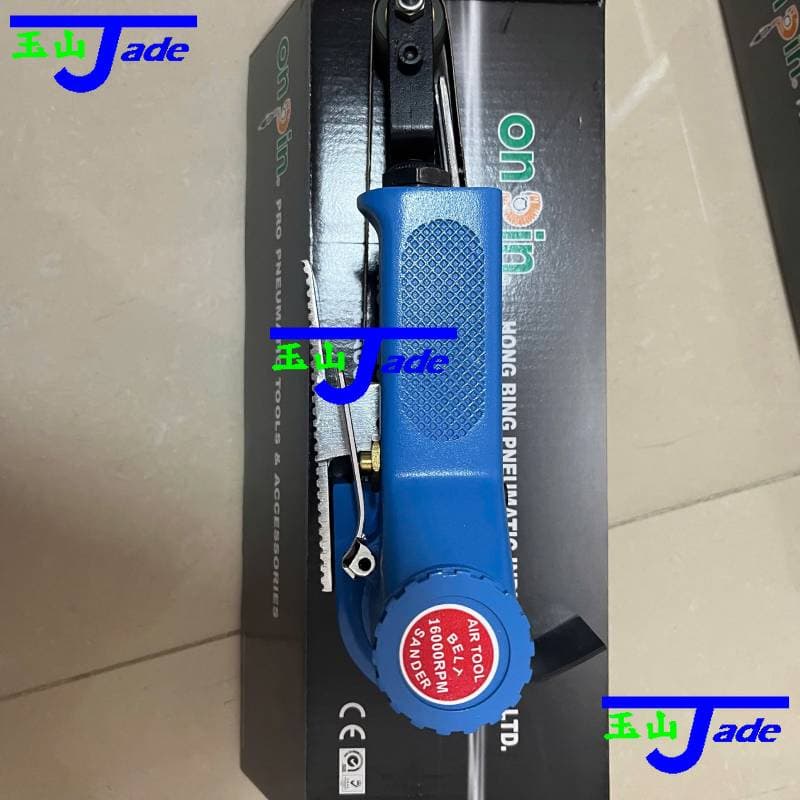

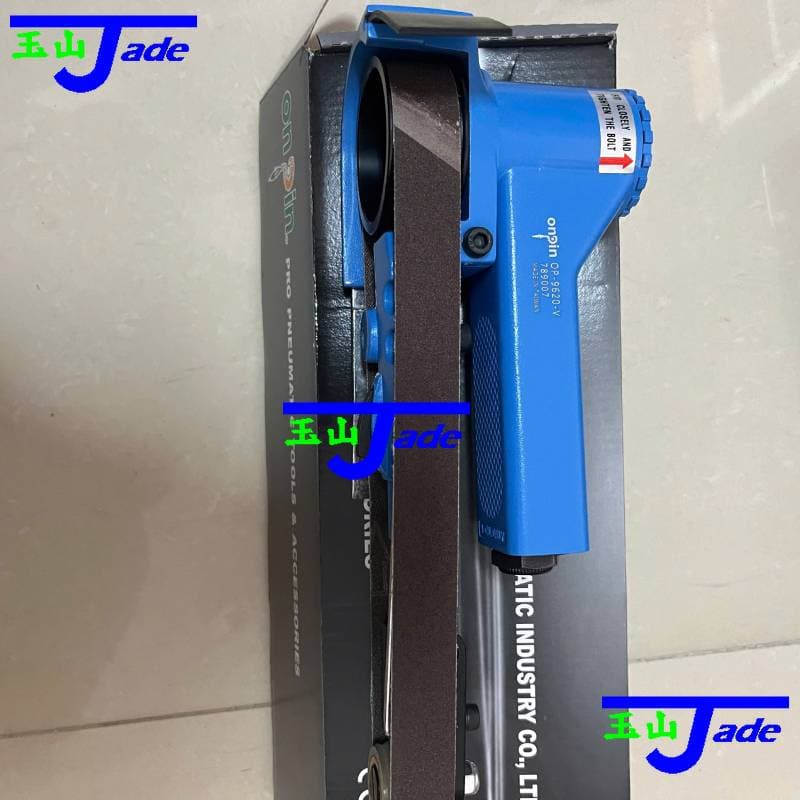

The Onpin OP-9620 air belt sander utilizes a 20 x 520 mm belt size and delivers a free speed of 16,000 rpm under standard 90 psi (6.2 bar) air pressure. Featuring an air consumption rate of 381 l/min (13.5 cfm), an overall length of 360 mm (14.17 inches), and a net weight of 1.2 kg, it ensures stable handling and increased contact area. Equipped with a 1/4 P.T air inlet, it supports grinding belts including #80 and #100 grit options. This tool provides an efficient solution for weld seam leveling, heavy deburring, and metal surface finishing in industrial applications.
- OP-9620
- Ref 1 9620#01 Tension Bar 10
- Ref 2 9620#02 Idel Pulley Assy
- Ref 2A 9620#2A Hexagon Socket Head Bolt
- Ref 2B 9620#2B Washer(M5)
- Ref 2C 9620#2C E-Clipper(ETW003)
- Ref 2D 9620#2D Idle Pulley Shaft
- Ref 2E 9620#2E Ball Bearing
- Ref 2F 9620#2F Washer
- Ref 2G 9620#2G Hexagon Nut(M5)
- Ref 2H 9620#2H Idle Pulley
- Ref 2I 9620#2I Washer
- Ref 3 9620#03 Spring
- Ref 4 9620#04 Finger Pad Assy
- Ref 4A 9620#4A Toothed Lock Washer (AW6)
- Ref 5 9620#05 Hexagon Socket Head Bolt
- Ref 5A 9620#5A Cup Spring
- Ref 6 9620#06 Hexagon Socket Head Bolt
- Ref 7 9620#07 Grinding Belt(#100)
- Ref 7A 9620#7A Grinding Belt(#80)
- Ref 8 9620#08 Hexagon Socket Head Bolt
- Ref 8A 9620#8A Washer
- Ref 9 9620#09 Drive Pulley
- Ref 10 9620#10 Flat Shoe
- Ref 11 9620#11 Hexagon Socket Head Bolt
- Ref 12 9620#12 Dust Cover
- Ref 13 9620#13 Guard Body
- Ref 14 9620#14 Tension Bar
- Ref 15 9620#15 Spring
- Ref 16 9620#16 Lever Pin(26)
- Ref 17 9620#17 Lever Pin(28)
- Ref 18 9620#18 Housing
- Ref 19 9620#19 Ball Bearing
- Ref 20 9620-20 End Plate A
- Ref 21 9620#21 Spacer 10133
- Ref 22 9620#22 Sunk Key 22.510
- Ref 23 9620#23 Cap
- Ref 24 9620#24 Ball Bearing
- Ref 25 9620#25 End Plate A
- Ref 26 9620#26 Cylinder
- Ref 27 9620#27 Blade Assy
- Ref 28 9620#28 Rotor
- Ref 29 9620#29 Throttle Lever
- Ref 30 9620-30 Lever Pin(323)
- Ref 31 9620#31 Valve Body
- Ref 32 9620#32 O-Ring (P9)
- Ref 33 9620-33 O-Ring (11.891.98)
- Ref 34 9620#34 O-Ring (P5)
- Ref 35 9620#35 Valve Stem
- Ref 36 9620-36 O-Ring(3.6*2.4)
- Ref 37 9620#37 Valve Spring
- Ref 38 9620#38 Deflector
- Ref 39 9620#39 Air Inlet
- Ref 40 9620#40 Hexagon Wrench Key 4
- Onpin air belt sander
- pneumatic belt sander 20x520mm
- heavy duty air belt sander
- Onpin OP-9620 spare parts
- industrial air belt grinding tool
Design file download links:
PDF fileDescription
Specification OP-9620
The Onpin OP-9620 Air Belt Sander is a heavy-duty industrial pneumatic grinding tool designed to operate at a standard working pressure of 90 psi (6.2 bar). Driven by a high-efficiency air motor via a drive pulley system, it rotates an abrasive belt continuously to deliver effective deburring, weld seam removal, and surface finishing.
Key Features of Onpin OP-9620
- Expanded belt size: Uses a 20 x 520 mm grinding belt for increased surface contact and efficient stock removal.
- High-speed performance: Delivers a free speed of 16,000 rpm with an air consumption of 381 l/min (13.5 cfm) for demanding industrial tasks.
- Ergonomic & durable structure: Features an overall length of 360 mm (14.17 inches) and a net weight of 1.2 kg (2.65 lb), equipped with a flat shoe and tension bar for smooth belt tracking and precise control.

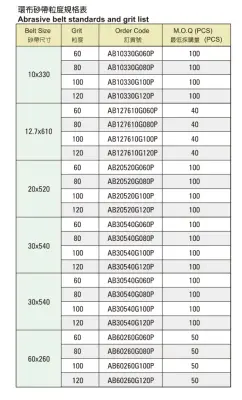

- Flexible abrasive options: Compatible with #80 and #100 grit grinding belts to suit different coarse-to-medium finishing requirements.

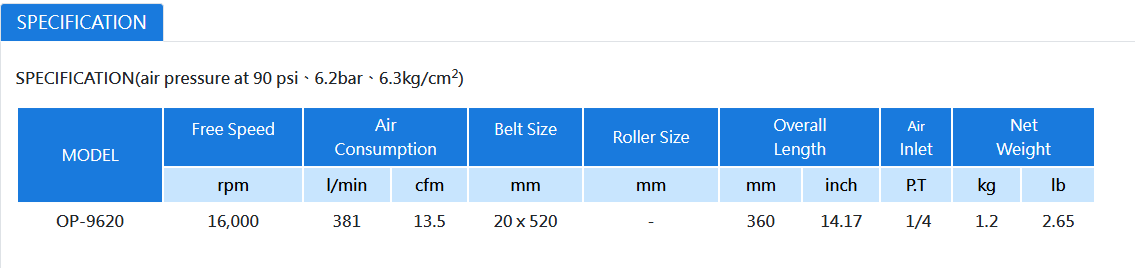

Technical Specifications of Onpin OP-9620
- Brand: Onpin
- Model Number: OP-9620
- Belt Size: 20 x 520 mm
- Free Speed: 16,000 rpm
- Air Consumption: 381 l/min (13.5 cfm)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Overall Length: 360 mm (14.17 inches)
- Air Inlet Thread: 1/4 P.T
- Net Weight: 1.2 kg (2.65 lb)
Industrial Applications of Onpin OP-9620
- Metal Fabrication & Shipbuilding: Weld seam leveling, plate surface conditioning, and heavy deburring.
- Automotive & Transportation Manufacturing: Finishing structural frames, body panels, and cast components.
- Machinery & Equipment Tooling: Surface grinding of machine parts, mold cavities, and fabricated assemblies.
