/ Air Drill Onpin OP-DMT21110Z - MT2 x JT3 Spindle Taper, 1000 RPM, Reversible, Inside Trigger
Air Drill Onpin OP-DMT21110Z - MT2 x JT3 Spindle Taper, 1000 RPM, Reversible, Inside Trigger
The Onpin OP-DMT21110Z / OP-DMT21110 heavy-duty industrial air drills feature a robust gear-driven structure, equipped with an MT2 * JT3 spindle taper and an auxiliary handle for enhanced operational stability. Operating under a standard air pressure of 90 psi (6.2 bar) at a free speed of 1000 rpm, these tools incorporate a positioning forward/reverse switch, a four-speed air volume adjustment knob, and a side exhaust design to minimize air interference. Measuring 445 mm (17.5 inches) in overall length, weighing 6.12 kg, with a 3/8 P.T inlet and 424 l/min air consumption, they offer two trigger options: inside trigger (OP-DMT21110Z) or outside trigger (OP-DMT21110) engineered for shipbuilding, mining, cement, and construction industries.
- OP-DMT21110Z
- OP-DMT21110
- OPDMT21110Z
- OPDMT21110
- OP DMT21110Z
- OP DMT21110
- OP-DMT21110 series
- OP-DMT21110Z model
- OP-DMT21110 model
- MT2 spindle taper heavy duty air drill 1000rpm
- JT3 reversible pneumatic drill gear driven
- Onpin industrial air drill inside trigger
- heavy duty pneumatic drill outside trigger shipbuilding
- gear driven air drill with auxiliary handle
Design file download links:
Other fileDescription

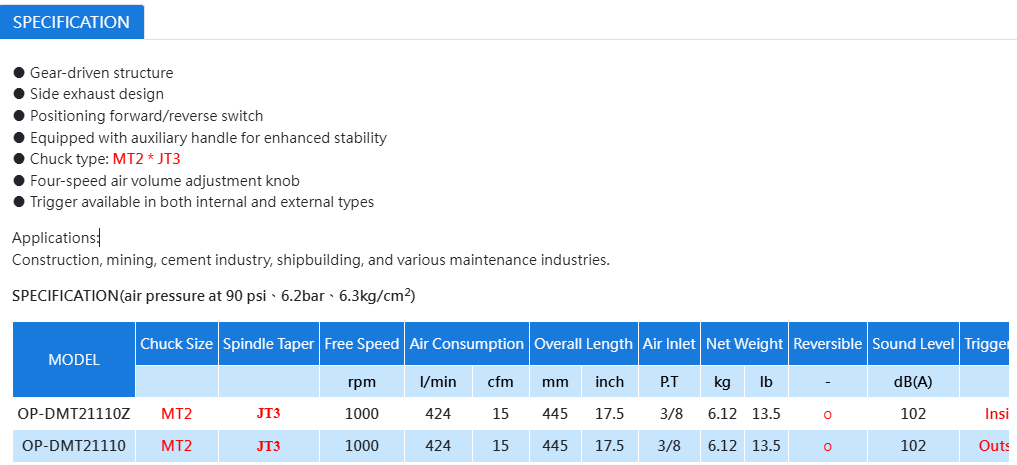

Specification OP-DMT21110Z
The Onpin OP-DMT21110Z / OP-DMT21110 pneumatic air drill is a heavy-duty industrial power tool operating on a standard compressed air supply of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a durable gear structure and enhanced with an auxiliary handle, it delivers stable operational torque at a free speed of 1000 rpm with positioning forward/reverse functionality. Featuring an MT2 * JT3 spindle taper chuck type and a side exhaust design, this tool offers two trigger options: internal trigger (OP-DMT21110Z) and external trigger (OP-DMT21110), built for heavy-duty metal fabrication and marine applications.
Key Features of Onpin OP-DMT21110Z / OP-DMT21110
- Gear-Driven Structure: Ensures stable power transmission, enhanced mechanical load capacity, and extended durability.
- Positioning Forward/Reverse Switch: Allows operators to control rotational direction smoothly and accurately.
- Four-Speed Air Volume Adjustment Knob: Provides precise control over airflow and operational speed to match specific tasks.
- Auxiliary Handle Support: Enhances holding stability, improves leverage, and reduces operator fatigue during demanding work.
- Side Exhaust Design: Redirects exhaust air away to minimize air interference at the immediate working surface.
- Flexible Trigger Configurations: Offers choice between Inside Trigger on model OP-DMT21110Z and Outside Trigger on model OP-DMT21110.
Technical Specifications of Onpin OP-DMT21110Z / OP-DMT21110
- Brand: Onpin
- Model: OP-DMT21110Z (Inside Trigger) / OP-DMT21110 (Outside Trigger)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: MT2
- Spindle Taper: JT3
- Free Speed: 1000 rpm
- Air Consumption: 424 l/min (15 cfm)
- Overall Length: 445 mm (17.5 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 6.12 kg (13.5 lb)
- Reversible Function: Yes (o)
- Sound Level: 102 dB(A)
- Trigger Type:
- OP-DMT21110Z: Inside
- OP-DMT21110: Outside
Industrial Applications of Onpin OP-DMT21110Z / OP-DMT21110
- Shipbuilding: Heavy steel hull plate drilling, vessel framework fabrication, and marine engineering maintenance.
- Mining Industry: Equipment installation, underground mining structural anchoring, and machinery servicing.
- Cement Industry: Maintenance, installation, and repair of heavy-duty cement grinding production equipment.
- Construction: Structural steel beam drilling, heavy frame assembly, and infrastructure construction projects.
- Various Maintenance Industries: Plant machinery overhaul, heavy equipment servicing, and industrial facility repair.
