/ Air Drill Onpin OP-D165111 - 16mm (5/8") Chuck, JT3, 1100 RPM, Reversible, High Torque
Air Drill Onpin OP-D165111 - 16mm (5/8") Chuck, JT3, 1100 RPM, Reversible, High Torque
The Onpin OP-D165111 heavy-duty industrial air drill delivers high torque output, equipped with a 16 mm (5/8 inch) chuck, JT3 anvil taper, an auxiliary handle for enhanced stability, and a plastic handle to reduce cold metal feel. Operating under standard 90 psi (6.2 bar) air pressure at a free speed of 1100 rpm, it features an indexed forward/reverse control switch and a bottom exhaust design to minimize air interference. Measuring 305 mm (12 inches) in overall length, weighing 5.86 kg, with a 3/8 P.T inlet, 452 l/min air consumption, and an 87 dB(A) sound level, it is ideally suited for shipbuilding, construction, mining, and cement applications.
- OP-D165111
- OPD165111
- OP D165111
- Onpin OP-D165111
- Onpin OPD165111
- Onpin OP D165111
- OP-D165 series
- OP-D165111 series
- OP-D165111 model
- 16mm heavy duty air drill 1100rpm
- 5/8 inch reversible pneumatic drill JT3
- Onpin industrial air drill plastic handle
- heavy duty pneumatic drill bottom exhaust 87dB
- high torque air drill with auxiliary handle
Design file download links:
Other fileDescription
Specification OP-D165111
The Onpin OP-D165111 pneumatic air drill is a heavy-duty industrial power tool operating on a standard air supply of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a precision gear mechanism and supported by an auxiliary handle, it combines a 16 mm (5/8 inch) chuck with a JT3 anvil taper to deliver high torque output at a free speed of 1100 rpm. Featuring a plastic-coated grip to reduce cold metal feel and a bottom exhaust design reducing sound levels to 87 dB(A), it is engineered for demanding industrial operations and shipbuilding fabrications.
Key Features of Onpin OP-D165111
- Precision Gear Mechanism: Ensures stable power transmission and long-term durability under heavy continuous loading.
- High Torque Output: Specially built to handle high-torque heavy-duty drilling applications.
- Indexed Forward/Reverse Switch: Allows operators to toggle rotational direction smoothly and reliably.
- Plastic Coated Handle: Minimizes the transmission of cold metal temperature to the operator's hand for better ergonomic comfort.
- Auxiliary Handle Support: Provides added leverage and holding stability to maintain drilling precision.
- Bottom Exhaust Design: Redirects air output downward to avoid air interference at the workpiece and maintain an 87 dB(A) sound level.

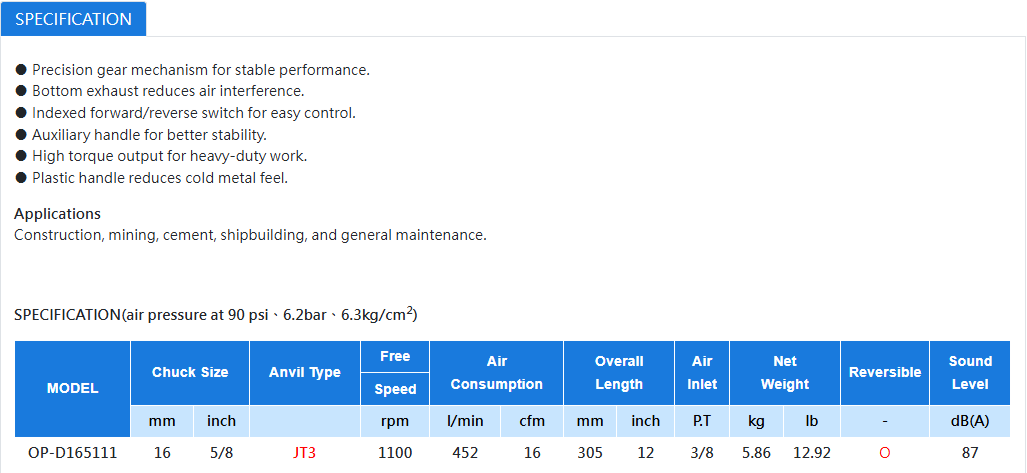

Technical Specifications of Onpin OP-D165111
- Brand: Onpin
- Model: OP-D165111
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 16 mm (5/8 inch)
- Anvil Type: JT3
- Free Speed: 1100 rpm
- Air Consumption: 452 l/min (16 cfm)
- Overall Length: 305 mm (12 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 5.86 kg (12.92 lb)
- Reversible Function: Yes (O)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-D165111
- Construction: Heavy structural steel drilling, beam fabrication, and infrastructure projects.
- Mining: Mining machinery installation, tunnel structural anchoring, and equipment servicing.
- Cement Industry: Maintenance, installation, and repair of heavy cement production line machinery.
- Shipbuilding: Drilling thick hull steel plates, vessel structural frames, and marine engineering assemblies.
- General Maintenance: Heavy plant overhaul, machine rebuilding, and industrial facility maintenance
