Air Drill Onpin OP-D16-G1Z - 16mm (5/8") Chuck, JT3, 1000 RPM, Reversible, Inside Trigger
The Onpin OP-D16-G1Z / OP-D16-G1 heavy-duty industrial air drills are high-torque pneumatic tools featuring a 16 mm (5/8 inch) chuck, JT3 anvil taper, and an auxiliary handle for superior handling stability. Operating at a standard air pressure of 90 psi (6.2 bar) with a free speed of 1000 rpm, these tools incorporate an indexed forward/reverse switch, a four-speed air control knob, and a side exhaust design to minimize air interference. Measuring 420 mm in length, weighing 6.34 kg, with a 3/8 P.T inlet and 424 l/min air consumption, they offer two distinct trigger configurations: inside trigger (model OP-D16-G1Z) or outside trigger (model OP-D16-G1) tailored for shipbuilding, mining, cement, and heavy construction applications.
- OP-D16-G1Z
- OP-D16-G1
- OPD16G1Z
- OPD16G1
- OP D16 G1Z
- OP D16 G1
- OP-D16 series
- OP-D16-G1Z model
- OP-D16-G1 model
- 16mm heavy duty air drill 1000rpm
- 5/8 inch reversible pneumatic drill JT3
- Onpin industrial air drill inside trigger
- heavy duty pneumatic drill outside trigger shipbuilding
- high torque air drill with auxiliary handle
Design file download links:
Other fileDescription

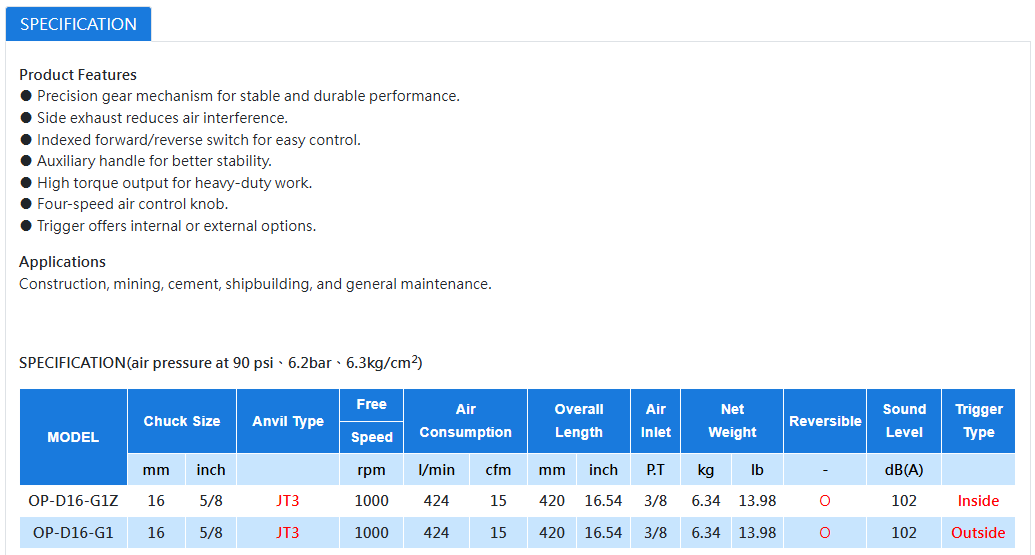

Specification OP-D16-G1Z
The Onpin OP-D16-G1Z / OP-D16-G1 pneumatic air drill is a heavy-duty industrial drilling tool operating on a standard compressed air supply of 90 psi (6.2 bar / 6.3 kg/cm²). Featuring a precision gear mechanism and an auxiliary handle, it delivers high torque output at a free speed of 1000 rpm with fully reversible rotation control. Fitted with a 16 mm (5/8 inch) chuck, a JT3 anvil taper, and side exhaust design, this tool provides two trigger configurations: internal trigger (OP-D16-G1Z) and external trigger (OP-D16-G1), tailored for continuous high-load industrial applications.
Key Features of Onpin OP-D16-G1Z / OP-D16-G1
- Precision Gear Mechanism: Delivers stable, durable performance and superior mechanical load capacity.
- High Torque Output: Engineered specifically for heavy-duty structural drilling operations.
- Indexed Forward/Reverse Switch: Allows operators to control rotational direction easily and precisely.
- Four-Speed Air Control Knob: Offers flexible regulation of air flow and operational speed.
- Auxiliary Handle: Enhances handling stability and reduces operator fatigue during heavy operations.
- Side Exhaust Design: Effectively directs exhaust air away to minimize air interference at work sites.
- Trigger Configuration Options: Provides choice between Inside Trigger on model OP-D16-G1Z and Outside Trigger on model OP-D16-G1.
Technical Specifications of Onpin OP-D16-G1Z / OP-D16-G1
- Brand: Onpin
- Model: OP-D16-G1Z (Inside Trigger) / OP-D16-G1 (Outside Trigger)
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 16 mm (5/8 inch)
- Anvil Type: JT3
- Free Speed: 1000 rpm
- Air Consumption: 424 l/min (15 cfm)
- Overall Length: 420 mm (16.54 inch)
- Air Inlet: 3/8 P.T
- Net Weight: 6.34 kg (13.98 lb)
- Reversible Function: Yes (O)
- Sound Level: 102 dB(A)
- Trigger Type:
- OP-D16-G1Z: Inside
- OP-D16-G1: Outside
Industrial Applications of Onpin OP-D16-G1Z / OP-D16-G1
- Construction: Structural steel drilling and heavy infrastructure construction tasks.
- Mining: Equipment installation, underground mining operations, and structural reinforcement.
- Cement Industry: Maintenance and installation of heavy-duty cement grinding equipment.
- Shipbuilding: Heavy steel plate drilling, vessel frame fabrication, and marine engineering maintenance.
- General Maintenance: Heavy plant machinery servicing and industrial facility overhaul.
