Air Drill Onpin OP-D9506 - 13mm Chuck, 0.9 HP, 650 RPM, Non-Reversible, 39.9 Nm Torque
The Onpin OP-D9506 industrial air drill features an 0.9 HP power output engineered for continuous heavy-duty operations, equipped with a 13 mm (1/2 inch) chuck and a 3/8"-24UNF spindle thread. Built with a non-reversible single-rotation design for high structural reliability, it utilizes a precision gear mechanism producing a high stall torque of 39.9 Nm at a free speed of 650 rpm under standard 90 PSI / 6.2 bar air pressure. Measuring 225 mm in overall length and weighing 1.72 kg, this tool operates at an 87 dB(A) sound level with a noise-reducing bottom exhaust and consumes 367 l/min of air via a 1/4 P.T inlet.
- OP-D9506
- OPD9506
- OP D9506
- Onpin OP-D9506
- Onpin OPD9506
- Onpin OP D9506
- OP-D95 series
- OP-D9506 series
- OP-D9506 model
- 0.9 HP high torque air drill 650rpm
- 1/2 inch non reversible pneumatic drill 13mm chuck
- Onpin industrial air drill 650rpm 39.9Nm
- high torque single rotation heavy duty air drill
- bottom exhaust industrial air drill 39.9Nm
Design file download links:
Other fileDescription

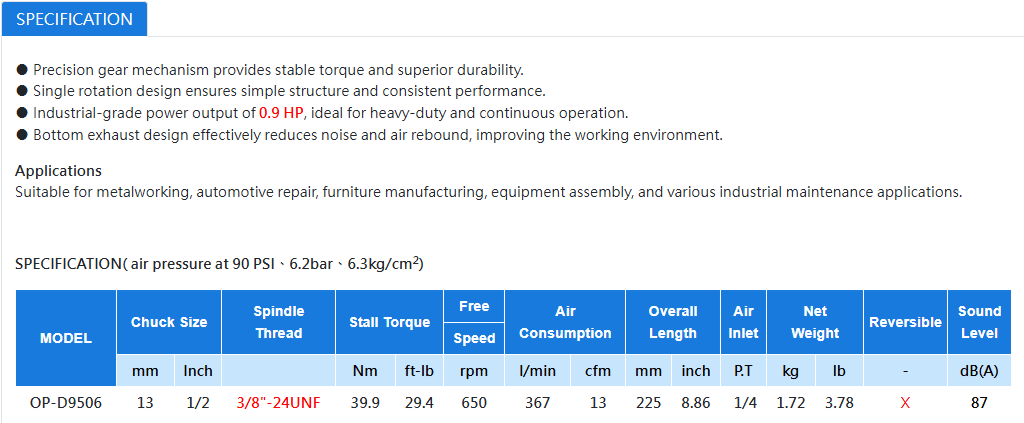

Specification OP-D9506
The Onpin OP-D9506 pneumatic air drill is an industrial-grade 13 mm (1/2 inch) chuck drilling tool delivering a high power output of 0.9 HP. Operating at a standard air pressure of 90 PSI (6.2 bar / 6.3 kg/cm²), it features a non-reversible single-rotation structure combined with a precision gear mechanism. Delivering a free speed of 650 rpm and an exceptionally high stall torque of 39.9 Nm (29.4 ft-lb) alongside a noise-reducing bottom exhaust at 87 dB(A), it is specifically designed for continuous, heavy-duty industrial processing requiring high torque.
Key Features of Onpin OP-D9506
- Precision Gear Mechanism: Provides stable, massive torque delivery and superior mechanical durability during high-load operations.
- Single Rotation Design: Ensures a simple, reliable internal structure that maintains consistent performance over long duty cycles.
- 0.9 HP Industrial Power Output: Supplies robust dynamic power, ideal for demanding continuous heavy-duty manufacturing tasks.
- Noise-Reducing Bottom Exhaust: Directs exhaust air downward to reduce working sound to 87 dB(A) and effectively eliminate air rebound.
Technical Specifications of Onpin OP-D9506
- Brand: Onpin
- Model: OP-D9506
- Operating Air Pressure: 90 PSI (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 13 mm (1/2 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 39.9 Nm (29.4 ft-lb)
- Free Speed: 650 rpm
- Air Consumption: 367 l/min (13 cfm)
- Overall Length: 225 mm (8.86 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.72 kg (3.78 lb)
- Reversible Function: No / Non-Reversible (X)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-D9506
- Metalworking: High-torque continuous drilling on thick structural steel, metal plates, and heavy fabrications.
- Automotive Repair: Chassis maintenance, structural part servicing, and heavy-duty vehicle repair tasks.
- Furniture Manufacturing: Fabrication and assembly of heavy-duty furniture components and metallic frames.
- Equipment Assembly: Industrial machinery assembly, panel drilling, and structural production line operations.
- Various Industrial Maintenance: Regular plant equipment servicing, facility repairs, and routine heavy maintenance.
