/ Air Drill Onpin OP-601CG - 12mm Chuck, 7.7 Nm Torque, 700 RPM, Rocker Reversible, 82 dB(A)
Air Drill Onpin OP-601CG - 12mm Chuck, 7.7 Nm Torque, 700 RPM, Rocker Reversible, 82 dB(A)
The Onpin OP-601CG industrial air drill features a 12 mm (1/2 inch) chuck with a 3/8-24UNF spindle thread, operating at a standard air pressure of 90 psi / 6.2 bar. Built with a precision gear mechanism, it delivers a stall torque of 7.7 Nm at 700 rpm free speed and includes a rocker-type switch for easy one-handed directional changes. Designed for quiet operation at only 82 dB(A) with a dust-reducing bottom exhaust, this 1.49 kg tool includes an auxiliary handle and a spring balancer hanging ring, measuring 205 mm in length and consuming 212 l/min of air via a 1/4 P.T inlet.
- OP-601CG
- OP601CG
- OP 601CG
- Onpin OP-601CG
- Onpin OP601CG
- Onpin OP 601CG
- OP-601 series
- OP-600 series
- OP-601CG model
- 12mm 1/2 inch low noise air drill 82dB
- rocker switch reversible pneumatic drill
- Onpin industrial air drill 700rpm 7.7Nm
- auxiliary handle pneumatic drill with balancer ring
- bottom exhaust low noise air drill
Design file download links:
Other fileDescription

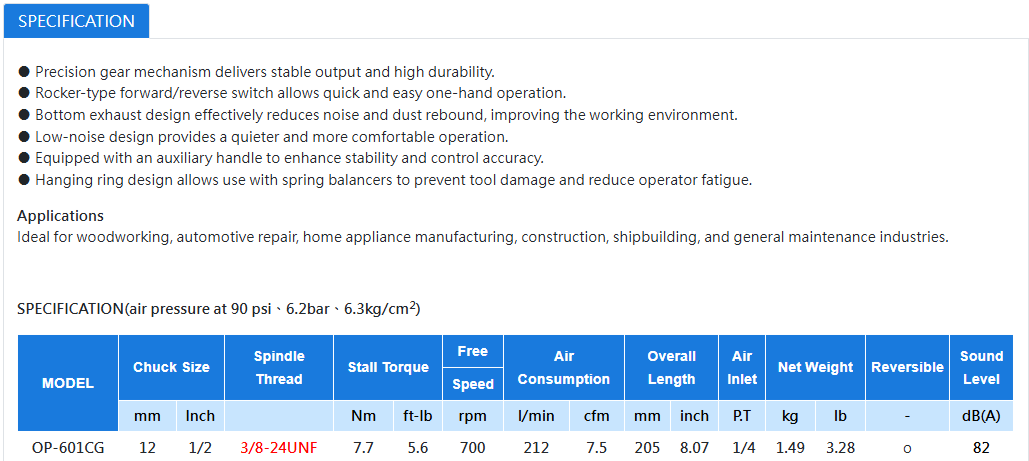

Specification OP-601CG
The Onpin OP-601CG pneumatic air drill is an industrial-grade 12 mm (1/2 inch) chuck handheld drilling tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a precision gear mechanism, it features a rocker-type forward/reverse switch for fast one-handed operational control. Delivering a low sound output of 82 dB(A), a dust-reducing bottom exhaust, an auxiliary control handle, and an integrated balancer hanging ring, it delivers a free speed of 700 rpm and a stall torque of 7.7 Nm (5.6 ft-lb) for heavy-duty industrial assembly.
Key Features of Onpin OP-601CG
- Precision Gear Mechanism: Delivers consistent torque output, minimizes internal wear, and ensures high mechanical longevity.
- Rocker-Type Forward/Reverse Switch: Enables quick and effortless one-handed direction changes during continuous operation.
- Low-Noise Bottom Exhaust Design: Directs air xả downward to prevent dust rebound while keeping operating sound at a quiet 82 dB(A).
- Auxiliary Control Handle: Enhances grip stability and drilling accuracy during heavy fabrication tasks.
- Spring Balancer Hanging Ring: Compatible with spring balancers to safeguard the tool against drops and minimize operator fatigue.
Technical Specifications of Onpin OP-601CG
- Brand: Onpin
- Model: OP-601CG
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 12 mm (1/2 inch)
- Spindle Thread: 3/8-24UNF
- Stall Torque: 7.7 Nm (5.6 ft-lb)
- Free Speed: 700 rpm
- Air Consumption: 212 l/min (7.5 cfm)
- Overall Length: 205 mm (8.07 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.49 kg (3.28 lb)
- Reversible Function: Yes (o)
- Sound Level: 82 dB(A)
Industrial Applications of Onpin OP-601CG
- Woodworking: Heavy structural hole drilling, wood joinery, and furniture frame assembly.
- Automotive Repair: Chassis drilling, metal part servicing, and mechanical repair operations.
- Home Appliance Manufacturing: Sheet metal fabrication, structural fastening, and appliance casing assembly.
- Construction & Shipbuilding: Structural metal drilling and heavy mechanical installation on job sites.
- General Maintenance Industries: Regular plant equipment maintenance, structural repairs, and facility servicing.
