/ Air Drill Onpin OP-D9519-4 - 13mm Chuck, 0.9 HP, 1900 RPM, Non-Reversible, 13.8 Nm Torque
Air Drill Onpin OP-D9519-4 - 13mm Chuck, 0.9 HP, 1900 RPM, Non-Reversible, 13.8 Nm Torque
The Onpin OP-D9519-4 industrial air drill features a high-performance 0.9 HP power output engineered for continuous heavy-duty operations, equipped with a 13 mm (1/2 inch) chuck and a 3/8"-24UNF spindle thread. Built with a non-reversible single-rotation design for simple structure and consistent output, it utilizes a precision gear mechanism delivering a free speed of 1900 rpm and a stall torque of 13.8 Nm under 90 PSI / 6.2 bar operating pressure. Measuring 225 mm in overall length and weighing 1.85 kg, this tool operates at an 87 dB(A) noise level with a noise-reducing bottom exhaust and consumes 367 l/min of air via a 1/4 P.T inlet.
- OP-D9519-4
- OPD9519-4
- OP D9519 4
- Onpin OP-D9519-4
- Onpin OPD9519-4
- Onpin OP D9519-4
- OP-D95 series
- OP-D9519 series
- OP-D9519-4 model
- 0.9 HP heavy duty air drill 1900rpm
- 1/2 inch non reversible pneumatic drill 13mm chuck
- Onpin industrial air drill 1900rpm 13.8Nm
- single rotation continuous operation air drill
- bottom exhaust industrial air drill 0.9HP
Design file download links:
Other fileDescription
Specification OP-D9519-4
The Onpin OP-D9519-4 pneumatic air drill is an industrial-grade 13 mm (1/2 inch) chuck drilling tool delivering a high power output of 0.9 HP. Operating at a standard air pressure of 90 PSI (6.2 bar / 6.3 kg/cm²), it features a non-reversible single-rotation structure combined with a precision gear mechanism. Delivering a free speed of 1900 rpm and a stall torque of 13.8 Nm (10.2 ft-lb) alongside a noise-reducing bottom exhaust at 87 dB(A), it is specifically designed for continuous, heavy-duty industrial processing.
Key Features of Onpin OP-D9519-4
- Precision Gear Mechanism: Provides stable torque delivery and superior mechanical durability during high-speed operations.
- Single Rotation Design: Ensures a simple, reliable internal structure that maintains consistent performance over long duty cycles.
- 0.9 HP Industrial Power Output: Supplies robust dynamic power, ideal for demanding continuous manufacturing tasks.
- Noise-Reducing Bottom Exhaust: Directs exhaust air downward to reduce working sound to 87 dB(A) and effectively eliminate air rebound.

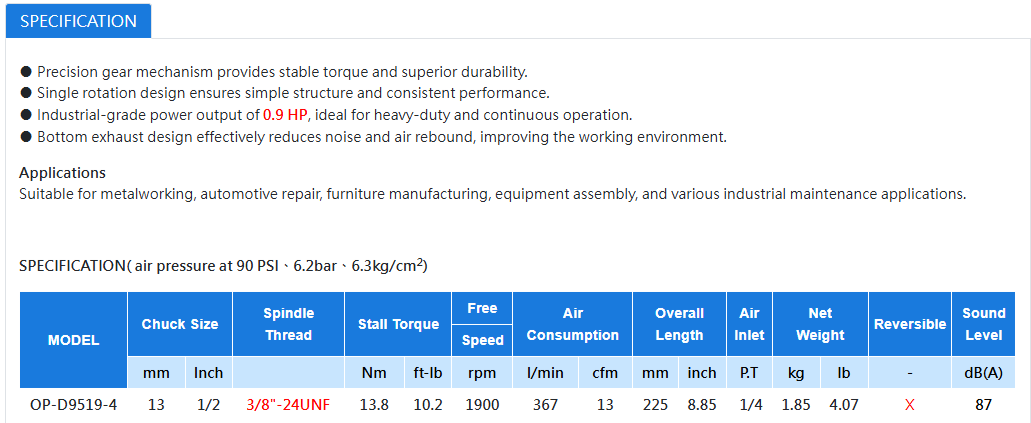

Technical Specifications of Onpin OP-D9519-4
- Brand: Onpin
- Model: OP-D9519-4
- Operating Air Pressure: 90 PSI (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 13 mm (1/2 inch)
- Spindle Thread: 3/8"-24UNF
- Stall Torque: 13.8 Nm (10.2 ft-lb)
- Free Speed: 1900 rpm
- Air Consumption: 367 l/min (13 cfm)
- Overall Length: 225 mm (8.85 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.85 kg (4.07 lb)
- Reversible Function: No / Non-Reversible (X)
- Sound Level: 87 dB(A)
Industrial Applications of Onpin OP-D9519-4
- Metalworking: Continuous drilling on structural steel, aluminum plates, and metal fabrications.
- Automotive Repair: Chassis maintenance, structural part servicing, and vehicle repair tasks.
- Furniture Manufacturing: Fabrication and assembly of heavy furniture components and metallic frames.
- Equipment Assembly: Industrial machinery assembly, panel drilling, and production line operations.
- Various Industrial Maintenance: Regular plant equipment servicing, facility repairs, and routine maintenance.
