Air Drill Onpin OP-8P - 10mm Chuck, JT1 Spindle, 1400 RPM, Reversible
The Onpin OP-8P industrial air drill features a robust gear-driven mechanism designed for continuous production at a standard operating air pressure of 90 psi / 6.2 bar. Equipped with a 10 mm (3/8 inch) chuck and a JT1 spindle thread, it delivers a free speed of 1,400 rpm. Featuring a push-button forward/reverse switch for fast direction switching and a noise-reducing bottom exhaust system operating at 90 dB(A), this 1.47 kg tool measures 205 mm in length and consumes 226 l/min of air via a 1/4 P.T inlet.
- OP-8P
- OP8P
- OP 8P
- Onpin OP-8P
- Onpin OP8P
- Onpin OP 8P
- OP-8 series
- OP-8P model
- 10mm JT1 spindle air drill 1400rpm
- reversible push button pneumatic drill
- Onpin 3/8 inch industrial air drill
- gear driven air drill
- bottom exhaust industrial pneumatic drill
Design file download links:
Other fileDescription

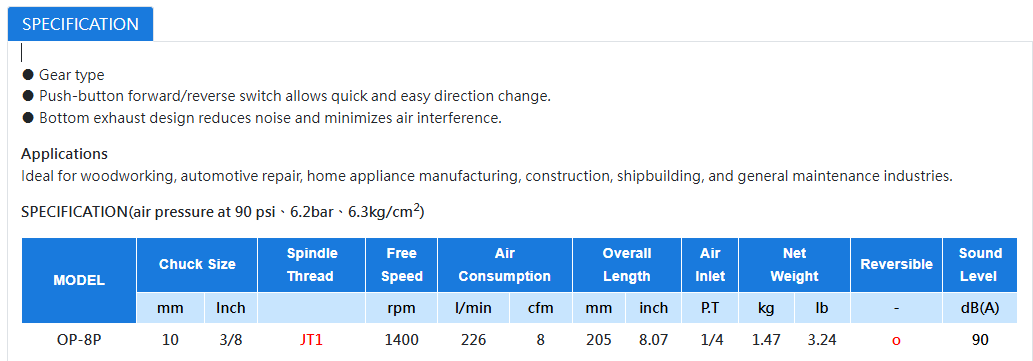

Specification OP-8P
The Onpin OP-8P pneumatic air drill is an industrial-grade drilling tool operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Driven by a gear mechanism, it features a 10 mm (3/8 inch) chuck paired with a JT1 spindle, delivering a free speed of 1,400 rpm. Equipped with a push-button directional switch and a bottom exhaust system, this 1.47 kg tool is engineered for consistent performance across rigorous manufacturing workflows.
The general layout and robust design of the tool are illustrated below:
Key Features of Onpin OP-8P
- Gear-Type Drive Mechanism: Delivers stable power transmission, strong load capacity, and enhanced mechanical durability under demanding conditions.
- Push-Button Forward/Reverse Switch: Allows operators to change rotation directions quickly and effortlessly with minimal hand movement.
- Noise-Reducing Bottom Exhaust Design: Directs exhaust airflow downward to keep operating noise at 90 dB(A) while minimizing air turbulence.
Technical Specifications of Onpin OP-8P
- Brand: Onpin
- Model: OP-8P
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Chuck Size: 10 mm (3/8 inch)
- Spindle Thread: JT1
- Free Speed: 1,400 rpm
- Air Consumption: 226 l/min (8 cfm)
- Overall Length: 205 mm (8.07 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.47 kg (3.24 lb)
- Reversible Function: Yes (o)
- Sound Level: 90 dB(A)
Industrial Applications of Onpin OP-8P
- Woodworking: Structural hole drilling, wooden frame assembly, and furniture joinery tasks.
- Automotive Repair: Chassis drilling, component fabrication, and mechanical part servicing in automotive shops.
- Home Appliance Manufacturing: Sheet metal drilling and structural fastening in appliance production lines.
- Construction & Shipbuilding: Metal fabrication drilling and structural maintenance operations.
- General Maintenance Industries: Plant equipment servicing, routine facility repairs, and mechanical upkeep.
