Onpin OP-405LN Air Screwdriver - 5mm Capacity, Auto Clutch, 7Nm, 550RPM

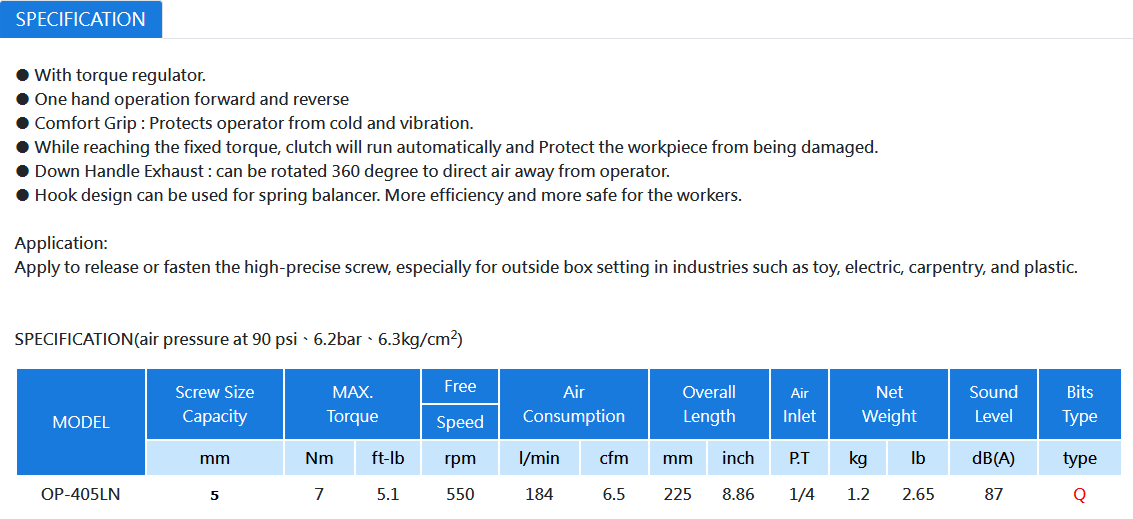

Specification

Key Features of Onpin OP-405LN

1. Automatic clutch mechanism: Runs automatically upon reaching the preset torque to protect workpieces from being damaged.
2. Integrated torque regulator: Built-in torque regulator allows precise control of torque output for demanding specifications.
3. One-hand operation: Engineered with a single-handed forward and reverse control switch for maximum operational convenience.
4. Comfort Grip: Effectively protects the operator from cold air temperatures and operational vibration.
5. 360-degree Down Handle Exhaust: Rotates 360 degrees to direct air exhaust away from the operator.
6. Spring balancer hook design: Built-in hook designed for spring balancer attachment, enhancing workflow efficiency and worker safety.

Technical Specifications of Onpin OP-405LN

1. Model: OP-405LN
2. Screw Size Capacity: 5 mm
3. MAX. Torque: 7 Nm (5.1 ft-lb)
4. Free Speed: 550 rpm
5. Air Consumption: 184 l/min (6.5 cfm)
6. Overall Length: 225 mm (8.86 inch)
7. Air Inlet: 1/4 P.T
8. Net Weight: 1.2 kg (2.65 lb)
9. Sound Level: 87 dB(A)
10. Bits Type: Type Q
11. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-405LN

1. Toy Manufacturing: Applied to release or fasten high-precision screws in external box settings and product casings.
2. Electric Industry: Designed for precision fastening in electrical housings, enclosures, and assembly lines.
3. Carpentry & Woodworking: Ideal for joinery and woodwork assembly operations requiring precise torque and reduced vibration.
4. Plastic Processing: Suitable for mounting and assembling plastic external box settings and delicate structures.
