/ Onpin OP-2C8425 Air Screwdriver - 6mm Capacity, High Torque Clutch, 17Nm, 2500RPM
Onpin OP-2C8425 Air Screwdriver - 6mm Capacity, High Torque Clutch, 17Nm, 2500RPM
The Onpin OP-2C8425 air screwdriver is a heavy-duty industrial fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It delivers a high free speed of 2500 rpm, maximum torque of 17 Nm (12.5 ft-lb), and air consumption of 283 l/min (10 cfm). Built with a lightweight composite body (1.08 kg), screwdriver-adjustable torque control to prevent unauthorized tampering, and a handle exhaust system to reduce noise and dust rebound, it ensures high efficiency and ergonomics for industrial production lines.
- OP-2C8425
- OP-2C8425 Series
- onpin op-2c8425 air screwdriver
- high speed pneumatic screwdriver 2500rpm
- heavy duty air screwdriver 17nm
- industrial air screwdriver 6mm
- high torque air screwdriver 1/4 pt
Design file download links:
PDF fileDescription
Specification OP-2C8425
The Onpin OP-2C8425 Air Screwdriver is a heavy-duty industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into high-speed rotational output, delivering an impressive free speed of 2500 rpm and a maximum torque output of 17 Nm, equipped with a tamper-proof torque adjustment system for reliable assembly line operations.
Key Features of Onpin OP-2C8425
- High Torque Clutch Mechanism: Ensures strong and steady torque delivery for demanding mechanical fastening applications.
- Level Power Control: Easily adjustable to fit any application requirement on the assembly line.
- Handle Exhaust Design: Directs exhaust air through the handle to effectively reduce noise and prevent dust rebound.
- Tamper-Proof Torque Adjustment: Utilizes a screwdriver to adjust torque (Using screwdriver to adjust torque), ensuring easy adjustment while preventing workers from altering settings randomly.
- Lightweight Composite Body: Lightweight material body eliminates cold feel from compressed air and features a variety of handle designs for ergonomic operation.

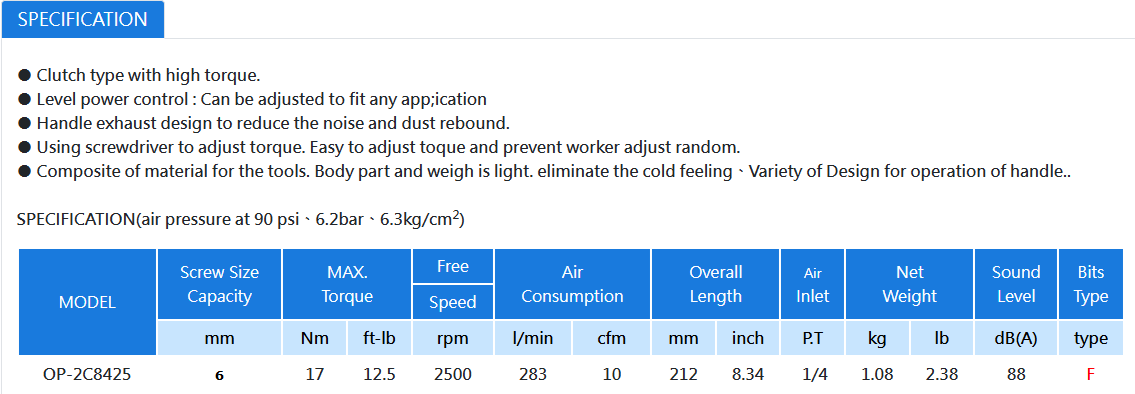

Technical Specifications of Onpin OP-2C8425
- Model: OP-2C8425 (or 2C8425)
- Screw Size Capacity: 6 mm
- MAX. Torque: 17 Nm (12.5 ft-lb)
- Free Speed: 2500 rpm
- Air Consumption: 283 l/min (10 cfm)
- Overall Length: 212 mm (8.34 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 1.08 kg (2.38 lb)
- Sound Level: 88 dB(A)
- Bits Type: Type F
- Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²
Industrial Applications of Onpin OP-2C8425
- Machinery & Equipment Assembly: Designed for high-speed fastening operations requiring 2500 rpm free speed.
- Metal & Plastic Component Manufacturing: Delivers precise torque for 6 mm screw capacity without damaging workpieces.
- Industrial Woodworking & Joinery: Ideal for furniture manufacturing lines demanding up to 17 Nm maximum torque.
- Electrical & Appliance Assembly Lines: Optimizes production yield thanks to tamper-proof torque control features.
