Onpin OP-106A Air Screwdriver - Push-Start, 0.2-0.35Nm Torque, Auto Shut-Off

Specification OP-106A

The Onpin OP-106A Air Screwdriver (Push To Start Air Shut-off Screwdriver) is a high-precision industrial pneumatic fastening tool operating at a rated air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It converts compressed air power into rotational performance, delivering a free speed of 2500 rpm and a torque range of 0.2 ~ 0.35 Nm, featuring a push-start mechanism with an automatic shut-off feature upon reaching the target torque.

Key Features of Onpin OP-106A

1. One-Hand Forward and Reverse Operation: Allows convenient single-handed directional switching for maximum operational efficiency.
2. Self-Locking Reverse Button: Equipped with a reverse button featuring a self-locking function for enhanced stability during operation.
3. 4mm Hex Bit Holder: Compatible with standard 4mm Hex size bits.
4. Low Noise & Energy Saving: Engineered for low air consumption (71 l/min / 2.5 cfm) and quiet performance at 69 dB(A).
5. Push-Start Device with Auto Shut-Off: Automatically stops all moving components when the preset torque is reached to protect delicate workpieces.

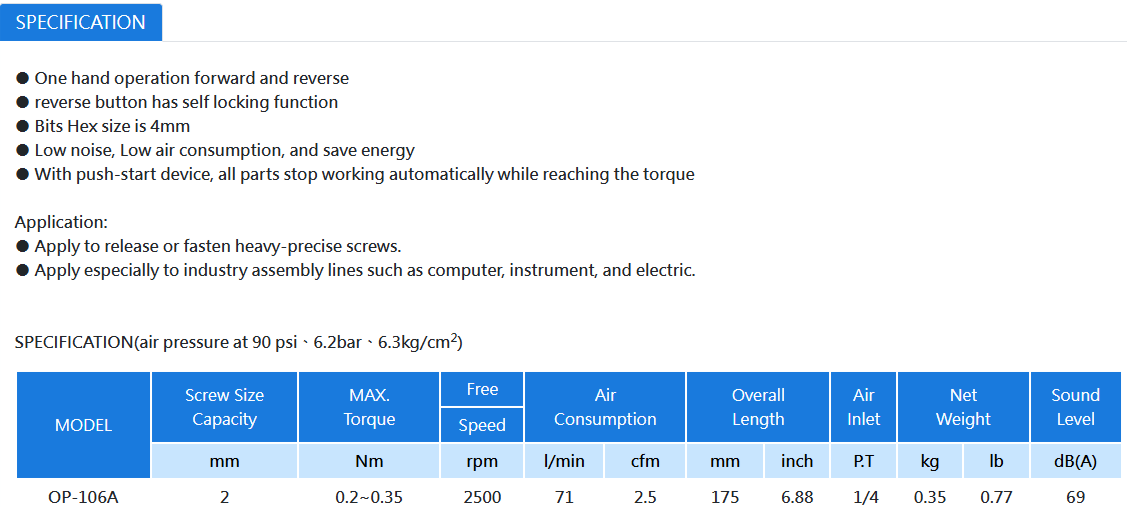

Technical Specifications of Onpin OP-106A

1. Model: OP-106A
2. Screw Size Capacity: 2 mm
3. MAX. Torque: 0.2 ~ 0.35 Nm
4. Free Speed: 2500 rpm
5. Air Consumption: 71 l/min (2.5 cfm)
6. Overall Length: 175 mm (6.88 inch)
7. Air Inlet: 1/4 P.T
8. Net Weight: 0.35 kg (0.77 lb)
9. Sound Level: 69 dB(A)
10. Bits Hex Size: 4 mm
11. Operating Air Pressure: 90 psi / 6.2 bar / 6.3 kg/cm²

Industrial Applications of Onpin OP-106A

1. Precision Fastening: Specifically applied to release or fasten heavy-precise screws.
2. Computer Assembly Lines: Ideal for delicate screws in computer hardware manufacturing requiring 0.2 ~ 0.35 Nm torque.
3. Instrument Manufacturing: Protects sensitive measuring devices and components via auto shut-off technology.
4. Electrical Assembly Lines: Boosts productivity on high-volume production lines for electrical devices.
